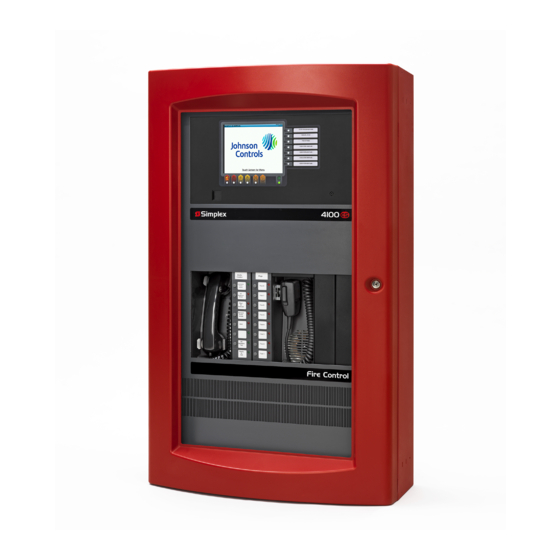

Simplex 4100 Operator's Manual

Fire indicator panel
Hide thumbs Also See for 4100:
Table of Contents

Advertisement

Quick Links

Download this manual
FIRE
FIRE
4100 Fire Indicator Panel
Operator's Manual
LT0293
579-314 Rev 1.1
firealarmresources.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4100

Summary of Contents for Simplex 4100

  • Page 1 FIRE FIRE 4100 Fire Indicator Panel Operator’s Manual LT0293 579-314 Rev 1.1 firealarmresources.com...
  • Page 2 firealarmresources.com...
  • Page 3 Simplex Time Recorder Company. Simplex and the Simplex logo are U.S. registered trademarks of Simplex Time Recorder Co. firealarmresources.com...
  • Page 4 firealarmresources.com...
  • Page 5 Panel Details Panel Sticker 4100 Panel Supplied by: Installation Location Contract/Job Number As installed, FIP System Drawing Number Panel Installation Date Panel Commissioned Date Maintenance Company Telephone Service Contract firealarmresources.com...
  • Page 6 firealarmresources.com...
  • Page 7 Product operation and reliability depends upon proper installation. DO NOT INSTALL ANY SIMPLEX PRODUCT THAT APPEARS DAMAGED. Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify Simplex.
  • Page 8 firealarmresources.com...

  • Page 9: Table Of Contents

    Table of Contents Chapter 1. Overview Introduction ......................1-1 In this Chapter......................1-1 Door Up – Firefighter Facility Operator Interface............1-2 Introduction ......................1-2 Indicators........................1-2 Alphanumeric Display ....................1-3 Firefighter Facility Keys.................... 1-3 Door Down – Service Related Features ..............1-5 Introduction ......................
  • Page 10 Introduction ......................3-1 In this Chapter......................3-1 Acknowledging Fault or Isolate Conditions..............3-2 How the 4100 Indicates the Presence of a Fault ............. 3-2 What Acknowledge Does ..................3-2 Panel Operating Procedure – Fault Condition ............3-3 Resetting Fault Conditions ..................3-3 Viewing Fault or Isolate Conditions ................
  • Page 11 Step 1. Select a Point....................6-2 Step 2. Press the FUNCTION Key to See the Attributes........6-2 Summary of Display-Only Attributes ................ 6-2 Modifiable Point Attributes ................... 6-4 Overview ........................6-4 Step 1. Select a Point....................6-4 Step 2. Press the FUNCTION Key to See the Attributes........6-4 Summary of Modifiable Attributes ................
  • Page 12 Chapter 10. System Test Procedures Introduction ......................10-1 In this Chapter......................10-1 Walk Test™........................ 10-2 Overview ........................ 10-2 WalkTest by Group ..................... 10-2 Zone Coding Option ....................10-2 Silent Walk Test ..................... 10-3 Enabling Walk Test ....................10-3 Walk Test Operation ....................10-4 Walk Test™...
  • Page 13 Olsen Range ......................A3 Apollo Range......................A4 Panelect/Panasonic ....................A4 Compatible Batteries..................... A5 Battery List ........................ A5 Compatible Addressable Field Devices ................ A6 4100 Specifications ....................... A7 General........................A7 Expansion Modules....................A7 Indicators and Display....................A9 Keypad Controls......................A9 Software Features..................... A9...
  • Page 14 firealarmresources.com...

  • Page 15: Chapter 1. Overview

    Chapter 1 Overview Introduction This chapter describes the operator interface panel for the following versions of the 4100 Fire Indicator Panel (FIP). • A 4100 Fire Indicator Panel operating in standalone mode. • A 4120 Network Indicator Panel (which is a 4100 connected to a network).

  • Page 16: Door Up - Firefighter Facility Operator Interface

    Door Up – Firefighter Facility Operator Interface Introduction When the panel access door is in the up position, as shown in Figure 1-1, the keys, alphanumeric display, and indicators that appear are referred to as the Firefighter facility. It is the area in the center of the panel with the red line containing the text “FIREFIGHTER FACILITY.”...

  • Page 17: Firefighter Facility Keys

    Display scrollable lists of system points. Points are the individual input and output components of the 4100 FIP. Smoke detectors, relays, horns, strobes, etc. are all examples of points. In some cases, an operation must be performed on a specific point.
  • Page 18 Table 1-2. Firefighter Facility Keys Keys, (continued) Description Used to isolate and de-isolate the 4100 output connected to the External Bell. Pressing this key toggles the state of the output (i.e., pressing it when the External Bell is not isolated causes EXT BELL ISOLATE the system to isolate the bell.

  • Page 19: Door Down - Service Related Features

    These keys are programmable, meaning their function depends on how they are programmed. Contact your local Simplex office for more information on the way in which these keys have been programmed for your system. Note that the use of these keys may be password-protected.

  • Page 20: Display Keypad

    Door Down – Service Related Features, Continued Display Keypad The "DISPLAY " keypad provides keys that allow users with appropriate access level the ability to perform controlling functions on the system zones, MAPNET devices, signals, and auxiliary control relays. Four keys are associated with the Display keypad. Description The <FUNCTION>...
  • Page 21 Door Down – Service Related Features, Continued Display Keypad, (continued) Description The <MENU> key will call up the Main Menu and display the first option on the list. The Main Menu provides operations which are separate from those used for fire alarm conditions. These non-critical functions are selected with the <MENU>...

  • Page 22: Action Keys

    Door Down – Service Related Features, Continued Action Keys The action keys allow you to quickly perform common control functions. There are four action keys on the display/action keypad: • Disable/Enable • Off/FLT TEST - Turning a point OFF • On/ALM TEST - Turning a point ON •...

  • Page 23: Chapter 2. Managing Alarm Conditions With The Firefighter Facility

    An alarm condition occurs when an actuating device (such as a manual call point, smoke detector, etc.) activates. The 4100 indicates the presence of the alarm condition through messages it displays on the alphanumeric display, by illuminating the ALARM indicator, and by activating the building’s EWS and external bell.

  • Page 24: Acknowledging Alarms

    Acknowledging Alarms What the System When the first alarm condition is detected by the 4100, the panel does the following to Does When an indicate the presence of the alarm. Alarm Occurs • Red ALARM indicator flashes • Sounder (buzzer) pulses •...
  • Page 25 Acknowledging Alarms, Continued Procedure, Press the <ACK> key. The manner in which the system responds depends on whether (continued) there are multiple alarms present, as follows: • If a Single Alarm is Present. If the alphanumeric display reads 1 of 1 in the lower right corner, there is only a single alarm condition present in the system.

  • Page 26: Isolating (Silencing) The Ews Or External Bell

    • The EWS turns OFF. The 4100 is unable to activate the EWS again until the <WARN SYS ISOLATE> key is pressed again. When all zones have been reset, you need to press this key again to “reset” the 4100’s connection to the EWS.

  • Page 27: Resetting Points And Zones

    Resetting Points and Zones Overview Each point or zone that goes into alarm must be individually reset before the system can be returned to a normal state. For zones, the state of all devices within the zone must first return to normal (i.e., all alarm conditions within the zone must clear) before the zone reset can be performed.

  • Page 28: Isolating / De-Isolating A Point / Zone

    Isolating / De-isolating a Point / Zone Overview Situations such as malfunctioning detectors and damaged wiring prevent a zone from being reset, which in turn prevents the system from being reset. Isolating a point / zone allows the system to be reset while repairs are being made. Isolating a Point / Acknowledge the alarm, as described in “Acknowledging Alarms”...
  • Page 29 Isolating / De-isolating a Point / Zone, Continued De-Isolating a Point / Press the <ACK> key. Zone Currently in Alarm, (continued) Press ACK to confirm, ISOLATE to CANCEL will ALARM if DE-ISOLATED Press the <ACK> key again. The system responds by doing the following: •...

  • Page 30: Overview

    Viewing the Status of an Individual Point within a Virtual Zone Overview Virtual zones are collections of points that are treated as a single point. System actions such as acknowledge and reset affect all points within a zone. When a zone cannot be reset, it is important to determine which specific point within the zone is preventing the zone from being reset.

  • Page 31: Introduction

    Fault conditions are used to indicate the presence of a field wiring problem (circuit break or ground) somewhere between the 4100 and one of its points. Faults are also used to indicate a problem with the 4100’s option cards, power supplies, network card, etc.

  • Page 32: Acknowledging Fault Or Isolate Conditions

    Acknowledging Fault or Isolate Conditions How the 4100 When a fault or isolate condition or is detected by the 4100, the panel does the following to Indicates the indicate the presence of the condition. Presence of a Fault • Yellow indicator, labeled “FAULT” or “ISOLATE” flashes •...

  • Page 33: Panel Operating Procedure - Fault Condition

    Acknowledging Fault or Isolate Conditions, Continued Panel Operating Unlock and open the panel door. The alphanumeric display shows a message similar to Procedure – Fault the following. (This example shows a fault. The screen for isolate conditions is similar. Condition **FAULT** Press FAULT ACK to review.

  • Page 34: Viewing Fault Or Isolate Conditions

    Viewing Fault or Isolate Conditions Overview You can view the list of acknowledged fault or isolate conditions at any time by using the following procedure. Press the <FAULT ACK> or <ISOLATE ACK> key to enter the fault or isolate list. The first fault or isolate condition in the list appears in the display.

  • Page 35: Chapter 4. Testing And Controlling Points

    Chapter 4 Testing and Controlling Points Introduction This chapter describes using the panel’s action keys (ALM TEST, ON, OFF, etc.) to test and control system points. In this Chapter Refer to the page number listed in this table for information on a specific topic. Topic See Page # Alarm and Fault Test for Monitor Points...

  • Page 36: Alarm And Fault Test For Monitor Points

    Alarm and Fault Test for Monitor Points Alarm Test Alarm Test forces a monitor point into the alarm state. Once the point is in alarm, you can check to see if the system reacts in the way that it has been programmed (i.e., do signals sound in the correct manner, do relays function correctly, etc.).

  • Page 37: Isolating And De-Isolating Non-Alarm Points

    Isolating and De-isolating Non-Alarm points Overview Chapter 2 of this manual describes isolating and de-isolating points in alarm. This section describes isolating and de-isolating non-alarm points. Isolating a non-alarm point does not prevent it from entering an alarm condition. There are not separate ISOLATE and DE-ISOLATE keys. Both operations use the ISOLATE key, but the function of the key depends on the state of the selected point (i.e., if the state of the point is isolated, pressing the key de-isolates the point.

  • Page 38: Disabling And Enabling Points

    Disabling and Enabling Points Overview Disabling a monitor point is similar to isolating a monitor point. It takes the point “offline.” Unlike the isolate operation, however, disabling a point prevents the point from entering an alarm condition for the duration of time it is disabled. The Enable/Disable key toggles the disable/enable state of the point.

  • Page 39: Turning A Point On Or Off

    Turning a Point ON or OFF Overview It may be necessary during maintenance of the system to turn the outputs (notification appliances and relays, for example) off. This prevents maintenance actions that generate an alarm condition from triggering the NACs or relays. Turning a Point OFF Select the output point that you want to turn off.
  • Page 40 firealarmresources.com...

  • Page 41: Chapter 5. Selecting Points For Status Or Control

    Chapter 5 Selecting Points for Status or Control Introduction Many of the operations that can be accomplished from the operator interface first require you to select the point on which you want to perform the operation. Points can be selected in one of three ways.

  • Page 42: Selecting Points From The Menu

    Selecting Points from the Menu Overview Every system point is part of the “Select a List of Points” list in the main menu. All points can be displayed sequentially by address order using this list option. To facilitate the search for a particular point, lists may be selected by type groupings (monitors, signals, auxiliary, input/output, pseudo points, etc.).

  • Page 43: Selecting Points With The Entry Keypad

    Selecting Points with the Entry Keypad Overview The Entry Keypad, shown below, allows you to quickly select points. For example, pressing the ZONE key on the upper left side of the keypad selects the monitor zone category. After selecting a category, messages on the display prompt you for the specific point in the category.
  • Page 44 Selecting Points with the Entry Keypad, Continued Selecting Points, (continued) Press this Key on Keypad Data to Enter AUX – allows you to select an AUX, followed by ENTER, where AUX represents an Auxiliary Relay auxiliary relay and is a number from x to y. FB –...

  • Page 45: Chapter 6. Displaying And Modifying Detailed Point Attributes

    Chapter 6 Displaying and Modifying Detailed Point Attributes Introduction This chapter describes displaying and modifying the attributes of a point. In this Chapter Refer to the page number listed in this table for information on a specific topic. Topic See Page # Display-Only Attributes Modifiable Point Attributes firealarmresources.com...

  • Page 46: Display-Only Attributes

    Display-Only Attributes Step 1. Select a Points can be selected in one of three ways: through the alarm, fault, or isolate list, using the Point MENU keys, or with the ENTRY keypad. Refer to Chapter 5 for information on selecting a point.
  • Page 47 Display-Only Attributes, Continued Summary of Display- Only Attributes, (continued) Table 6-2. Display-Only Attributes (continued) Category Attribute Description Present sensitivity selected Displays the current sensitivity of the device. Average value Displays the average smoke obscuration value recorded by the sensor. Alarm value Displays the smoke obscuration value required to trigger an TrueAlarm alarm.

  • Page 48: Modifiable Point Attributes

    Modifiable Point Attributes Overview This section describes using the FUNCTION key to modify the attributes of a point. Step 1. Select a Points can be selected in one of three ways — through the alarm, fault, or isolate list, using the Point MENU keys, or with the ENTRY keypad.
  • Page 49 Modifiable Point Attributes, Continued Summary of Modifiable Table 6-4. Modifiable Attributes (continued) Attributes, (continued) Attribute Description TrueAlarm Peak Analog Allows you to clear the peak value of a TrueAlarm sensor. Values Allows you to set the target value at which the device goes into alarm.
  • Page 50 firealarmresources.com...

  • Page 51: Chapter 7. Setting Access Levels And Logging In

    Chapter 7 Setting Access Levels and Logging In Introduction This chapter describes setting the time and date on the system, logging in and out, and setting access levels for use by system operators. In this Chapter Refer to the page number listed in this table for information on a specific topic. Topic See Page # Operator Access Levels...

  • Page 52: Operator Access Levels

    2 through 4. Routine actions are assigned to low access levels while access level 4 is reserved for special, highly sensitive operations (normally reserved for Simplex personnel). Entering a level 4 passcode enables you to access all the functions of the system.

  • Page 53: Logging In And Out Of The System

    Logging In and Out of the System Introduction The 4100 system uses four access levels, referred to by the numbers one through four, to control what system operators can do with the system. The system typically operates at access level one, which allows an operator to accomplish basic tasks without logging in to the system.

  • Page 54: Log Out Procedure

    Logging In and Out of the System, Continued Log In Procedure, If the passcode entered in Step 5 is correct, the following message is shown. (continued) Enter a Passcode followed by <ENTER> ACCESS GRANTED After a brief pause, the system displays the granted access level, such as the level 2 message shown below.
  • Page 55 Logging In and Out of the System, Continued Log Out Procedure, Press the <F2> key. After a brief pause, the display shows a message similar to the one (continued) below. 1 = Login 2 = Logout CURRENT ACCESS REDUCED TO LEVEL 1 Press the <CLR>...
  • Page 56 firealarmresources.com...

  • Page 57: Chapter 8. Viewing And Clearing Historical Logs

    Chapter 8 Viewing and Clearing Historical Logs Introduction When an abnormal condition occurs, a record of the event is placed in one of two logs generated by the system, depending on the nature of the condition. These logs are: • Historical Alarm Log •...

  • Page 58: Viewing And Clearing The Historical Alarm And Fault Logs

    Viewing and Clearing the Historical Alarm and Fault Logs Viewing Logs The Historical Alarm and Fault Logs can be viewed either from the 4100 Operator Panel. Press the <MENU> key. Using the <NEXT> and <PREVIOUS> keys, scroll through the Main Menu items until the "Display Historical Alarm Log?"...

  • Page 59: Introduction

    Chapter 9 Service-Related Operations Introduction This chapter describes service-related status and control procedures. In this Chapter Refer to the page number listed in this table for information on a specific topic. Topic See Page # Setting Time and Date Displaying Software Revision Viewing Card Status Information Displaying Network Node Information Lamp Test...

  • Page 60: Setting Time And Date

    Setting Time and Date Procedure Follow these steps to set the time and date on the panel. Press the <MENU> key. The following appears on the alphanumeric display. Press <NEXT> or <PREVIOUS> to scroll Change Access Level Press the <NEXT> key. The following appears. Press <NEXT>...

  • Page 61: Displaying Software Revision

    Displaying Software Revision Overview Follow these steps to display software revision information. Press the MENU key. Press the NEXT and PREV keys until the prompt reads, “Display Software Revision Level?” Press ENTER. A display similar to the following appears. SYS REV: A9.02.13 CFIG FORMAT: 96JOB: JOB1 REV:6...

  • Page 62: Viewing Card Status Information

    Viewing Card Status Information Procedure Every card, including the master controller and all option cards, has a series of Card Status Points associated with it. Press the MENU key. Press the NEXT and PREV keys until the prompt reads, “Display Card Status?” Press ENTER.

  • Page 63: Displaying Network Node Information

    Displaying Network Node Information Overview Network systems consist of multiple panels linked via a 4120 network. Each panel includes a user-defined node number, used to identify the panel on the network. The following section describes how to determine a panel’s node number. The node number is required when selecting a network point.

  • Page 64: Lamp Test

    The “LAMP TEST” push-button on the operator interface panel is used to determine local lamp failures within the system. Lamps on the 4100 operator interface panel illuminate along with the five function and acknowledge LEDs. All segments on the LCD also change to squares.

  • Page 65: Displaying Mapnet Device Status

    MAPNET Point Each MAPNET device must have a point address in order to communicate with the 4100 FIP. Addressing these point addresses along with their custom labels are located in the Programmers Report.
  • Page 66 Displaying MAPNET Device Status, Continued TrueAlarm Sensor Press the <FUNC> key to obtain the next display: Display Values, (continued) Device Address: 3-1 Mapnet Device: M1-1 Press the <NEXT> key to obtain the next display: F1-Force on card LED Type: Mapnet 1 MAPNET CARD Pressing function key <F1>...
  • Page 67 4100 system printer. Printing of peak values is done at the time the peak value is received at the FIP. This peak value is helpful in determining if a sensor should be made more or less sensitive.
  • Page 68 firealarmresources.com...

  • Page 69: Chapter 10. System Test Procedures

    Chapter 10 System Test Procedures Introduction These procedures should be followed when the system is installed and during periodic testing as required by code. Check local codes to determine how frequent you system should be tested. Always inform appropriate personnel (Fire Brigade, etc.) that you will be testing the system.

  • Page 70: Walk Test

    Walk Test™ mode and return to normal. WalkTest    by The 4100 will support up to eight Walk Test™ groups. This allows the building to be divided Group into small portions for the Walk Test™, and allows the rest of the building to be protected by the fire alarm panel.

  • Page 71: Silent Walk Test

    Walk Test™, Continued Zone Coding Option, (continued) = Zone 3 (three long pulses) = Zone 12 (one long, pause, two long pulses) = Zone 20 (two long and two short pulses) = Zone 102 (one long, two short, and two long pulses) NOTE: Zero Code = 2 short pulses.

  • Page 72: Walk Test Operation

    The second line of the LCD shows device status. Walk Test Operation When the 4100 system is placed in Walk Test™ mode, any zone in the active Walk Test™ group(s) can be tested in any order. If zone coding is enabled, there is an advantage in testing all devices within one zone before going on to the next zone.

  • Page 73: Walk Test™ Features

    Walk Test™ FEATURES Introduction The Walk Test™ function has the following features: • Abort Audible and Delay on Reactivation • Active/Not Active • Auto Abort on Alarm • Auto Abort on Time-out • Control Lists • Delay Before Reset • Log/No Log (Logging Option) •...

  • Page 74: Delay Before Reset

    This list is initially filled by the system for the first group, and includes all monitor zones. It can be edited using the tag list feature of the 4100 Programming Unit. An empty list signifies that a Walk Test™ group is not used. The programmer has the option of changing the label of this point list so that it is more meaningful for panel operation..

  • Page 75: Fault Audible

    Walk Test™ FEATURES, Continued Fault Audible When a zone fault is detected, the Walk Test™ signals sound continuously for four seconds. Zone Code/Zero The <F3> key is used to enable/disable Zone Coding. By default, Zone Coding is enabled. Code 10-7 firealarmresources.com...

  • Page 76: Walk Test™ Procedures

    Walk Test™ PROCEDURES Walk Test™ PROCEDURES, Continued How to Enter Walk Once the passcode has been entered, you may enter the Walk Test™ mode by performing the Test Mode following procedures. Press the MENU key. The LCD shows the following message. Press <NEXT>...

  • Page 77: How To Exit Walk Test Mode

    Press <F2> to log out. If Access Level 4 was entered, fault will continue to exist in the system. Access Level 4 is normally used by Simplex personnel and additional steps must be performed. Call Simplex to restore the system.

  • Page 78: How To Turn A Point Off

    Walk Test™ PROCEDURES, Continued How to Turn a Point The <OFF> key press will turn a control point off and prevent the automatic override, thus causing it to remain OFF. This action will result in a system fault. The normal state of all control points is AUTO.

  • Page 79: How To Return A Point To Auto

    Walk Test™ PROCEDURES, Continued How to Turn a Point To turn a point ON, perform the following procedures. On, (continued) Ensure the point to be turned ON is shown on the alphanumeric display. A typical point (SIG2) is shown below. MASTER SIGNAL POINT 2, SIG2 SIGNAL CIRCUIT Press the <ON>...

  • Page 80: How To Enable A Disabled Point

    Walk Test™ PROCEDURES, Continued How to Return a Press the <AUTO> key. A typical display is shown below. Point to Auto, (continued) Press <ENTER> for AUTOmatic control SIGNAL CIRCUIT: SIG2 Press the <ENTER> key. A typical display is shown below. MASTER SIGNAL POINT 2, SIG2 SIGNAL CIRCUIT OFF Press the <CLR>...
  • Page 81 Press the <CLR> key to exit. This will allow the panel to show the Time and Date. What to do in Case CALL YOUR LOCAL SIMPLEX BRANCH OFFICE, WHICH IS LISTED IN THE of System YELLOW PAGES, FOR ALL MALFUNCTIONS, OR IF YOU WOULD LIKE A...
  • Page 82 firealarmresources.com...

  • Page 83: Chapter 11. Printing Reports

    Chapter 11 Printing Reports Introduction This chapter describes printer options and how to print a report. In this Chapter Refer to the page number listed in this table for information on a specific topic. Topic See Page # Setting Printer Options 11-2 Printing a Report 11-3...

  • Page 84: Setting Printer Options

    Setting Printer Options Available Options The 4100 includes two printer options: Select Report Printer and Terminate Current Report. Follow these steps to set these options. Press the MENU key. Press the NEXT and PREV keys until the prompt reads, “Printer Options?”...

  • Page 85: Printing A Report

    Printing a Report Overview The system can generate any of the following reports. Report Description Report includes all information contained in the alarm Alarm History Log Report history log – device number, custom label, time and date device entered alarm. Report includes all information contained in the trouble Trouble History Log Report history log –...
  • Page 86 Printing a Report, Continued Procedure, When the category of report you want to print is displayed, press ENTER. The system (continued) prompts you to confirm that you want to generate the report. Press ENTER again. The report prints on the panel’s report printer. 11-4 firealarmresources.com...

  • Page 87: Chapter 12. Maintenance Procedures

    Chapter 12 Maintenance Procedures Introduction It is a requirement of AS1851 - Part 8, The Standards Association of Australia Code for Maintenance of Automatic Fire Alarm Systems, that tests be carried out to ensure the system is fully functional. The owner or tenant of the premises usually carries out the weekly test described. The installation company, under a Service Agreement, typically carries out the monthly and annual tests.
  • Page 88 Weekly Tests Procedure Weekly tests should be conducted and should include the following: Carry out a fire alarm call by simulating an alarm on detector zones as follows; Isolate any system outputs you wish not to respond to the testing of the system such as the exterior bell (using the EXT BELL ISOLATE button), the warning system (using the EXT BELL ISOLATE button, and any other Auxiliary Control Functions (ACF) including AC Shutdown and MDH controls using the ACF ISOLATE...
  • Page 89 Monthly Tests Procedure In addition to the weekly test specified previously, the following inspection and testing procedures should be carried out each month: Check all battery terminals and electrolyte levels, where appropriate. Maintain all batteries in a serviceable condition. Check condition of battery enclosure for corrosion and ensure the batteries are stored in a safe and secure condition.
  • Page 90 Annual Tests Procedure The annual tests shall consist of all the inspection and testing procedures specified in the previous clause and the following: Visually inspect all detectors and sampling points for any condition which is likely to adversely affect their operation, such as excessive deposition of dust or coating with paint.

  • Page 91: Compatible Actuating Devices

    Specifications Introduction This appendix describes the following: • It lists devices that been approved as compatible devices for use with the 4100 FIP. • It contains the 4100 FIP’s Specification In this Chapter Refer to the page number listed in this table for information on a specific topic.

  • Page 92: Simplex Range

    Compatible Actuating Devices Simplex Range Analog Addressable Sensors 4098-9701 High / Very High sensitivity Photoelectric smoke 4098-9716 Ionisation smoke 4098-9731 Type A / Type B Heat 4098-9781 Addressable LED Indicating base 4098-9782 Addressable LED Indicating base with Sounder 4098-9783 Addressable LED Indicating base with Relay driver...

  • Page 93: Hochiki Range

    Compatible Actuating Devices, Continued Hochiki Range Conventional Detectors DCA-B-60R MK V Type A heat detector DFE-60B Type B heat detector DCA-B-90R MK 1 Type C heat detector DFE-90D Type D heat detector DFG-60BLKJ Type B heat detector SPA-AB Beam type smoke detector SIH-AM Ionisation smoke detector SLK-A...

  • Page 94: Apollo Range

    Compatible Actuating Devices, Continued Apollo Range Conventional Detectors Heat detector Type A Heat detector Type B Heat detector Type C Heat detector Type D Series 20 Photoelectric smoke detector Series 30 Ionisation smoke detector Panelect/Panasonic Conventional Detectors PFS-A Heat detector Type A PFS-B Heat detector Type B PFS-C...

  • Page 95: Compatible Batteries

    Compatible Batteries Battery List • Power Sonic PS12 Series • Sonnenschien A200 Series • Sonnenschien A300 Series • Yuasa NP Series firealarmresources.com...

  • Page 96: Compatible Addressable Field Devices

    Compatible Addressable Field Devices 2190-9156 Mapnet 2 Monitor ZAM 2190-9162 Mapnet 2 Signal ZAM 2190-9164 Mapnet 2 Control ZAM 2190-9169 Mapnet 2 Line Powered Short Circuit Isolator 2190-9172 Mapnet 2 Supervised IAM 2190-9173 Mapnet 2 Loop powered 2 Point Input / Output Module 4099-9032NL Mapnet 2 Addressable Manual Call Point firealarmresources.com...

  • Page 97: 4100 Specifications

    RS-232 / 2120 Communications Module Provides two RS-232-C outputs for remote printers and/or CRT Five RS-232-C ports maximum per 4100 system. Can be configured for communication with a host 2120 system, or it can be configured as a Computer Port for communications to a remote system (i.e.
  • Page 98 MAPNET® TRUEALARM™ Addressable Loop (continued) Module Up to 127 MAPNET Addressable devices or TrueAlarm Analog Sensors Up to 10 MAPNET Loop Cards per 4100 system Supports MAPNET Short Circuit Line Isolator Modules 4100-0304 Remote Unit Interface Module Provides a supervised serial communications channel to remotely located distributed Miniplex®...

  • Page 99: Indicators And Display

    4100 Specifications, Continued Zone Status: 2 line by 80 character backlight Liquid Crystal INDICATORS and Display DISPLAY LED Status Indicators: Alarm, Fault and Isolate, EXT Bell (Isolate), WARN SYS (Isolate), AC Power Audible Buzzer: Alarm And Fault Indications, Keypress feedback...
