For information about fitting alternative modules to these display doors, refer to Adding fan controls or displays.
Note:
Set-back brackets required for mounting the 4100-ME0456 fan control modules in the shallow
8U and 15U cabinets are not required in the deeper 28U and 40U cabinets. The fan control
modules can be mounted in the same way as the LED/switch modules, as shown in

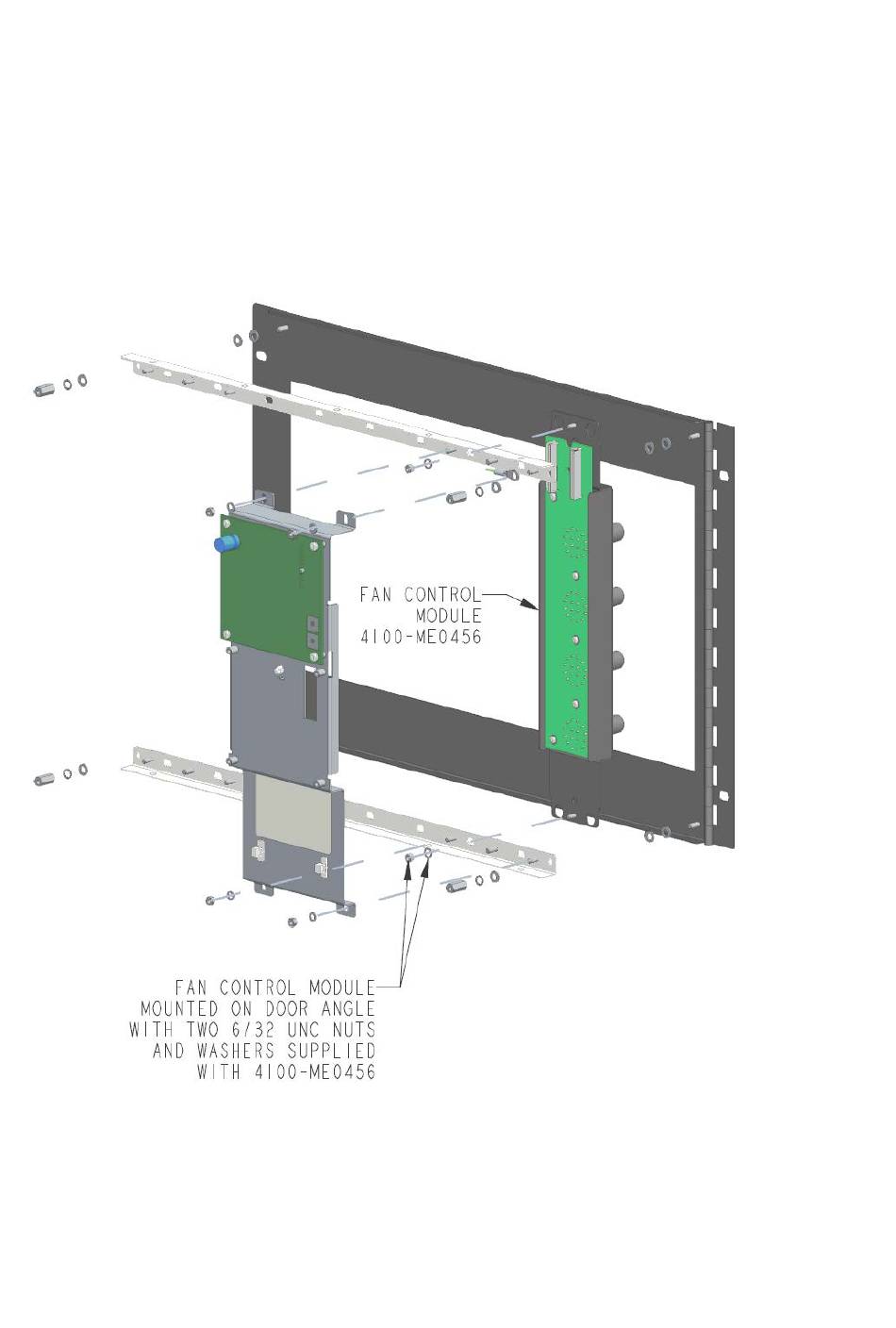

Figure 46. Mounting fan controls on a 7U door in a 28U or 40U cabinet

Adding an ASE

Refer to Adding an ASE brigade transmission unit on page 30.
