Adding a T-GEN 50

Mounting

The gearplate in the 4100ESi Compact panel has a position beside the CPU card for mounting a PA0766
T-GEN 50 tone generator. Mount the T-GEN 50 as shown in Figure 11, using the M3 screw supplied to earth
the module to the metal standoff in the gearplate.

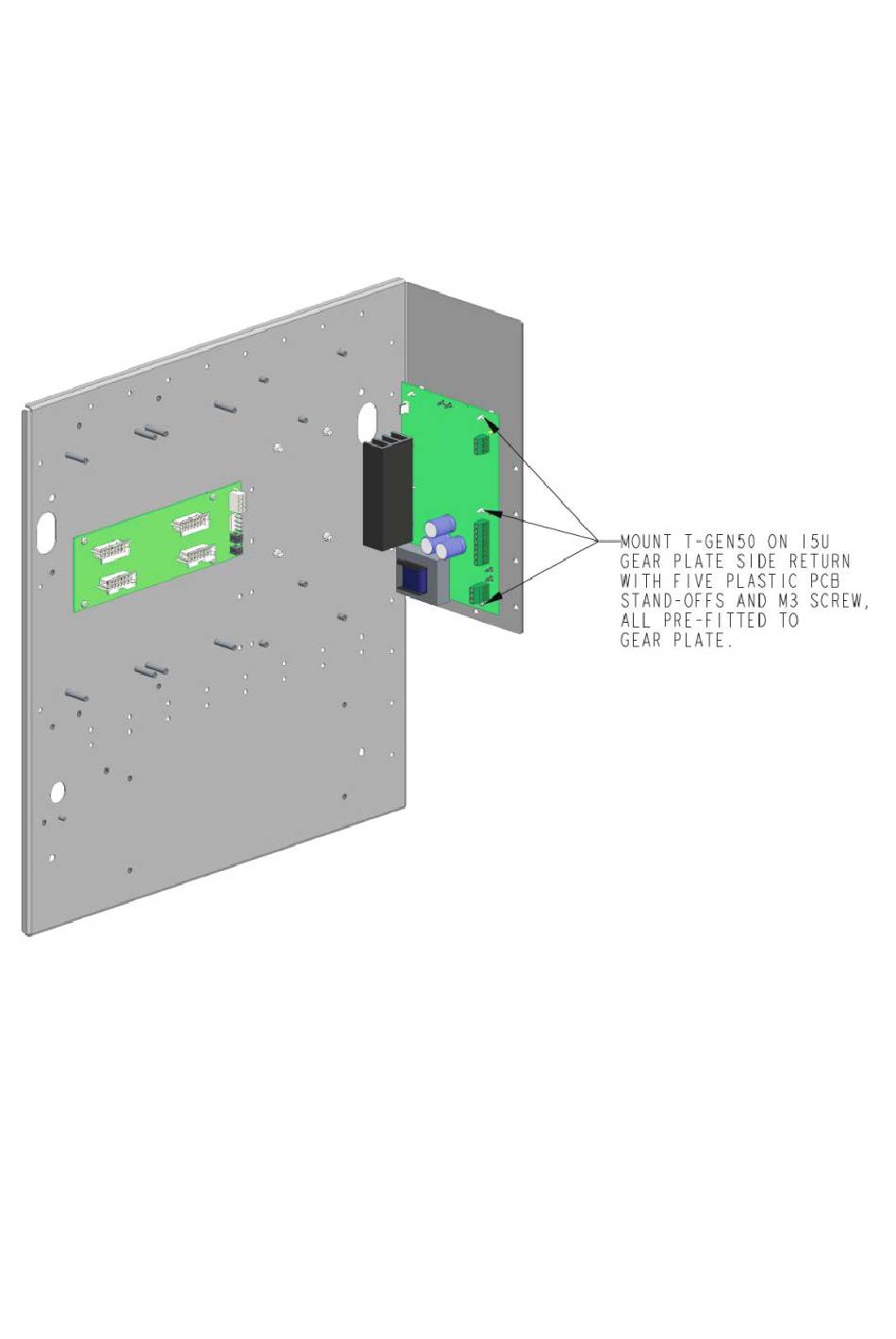

Figure 11. T-GEN 50 installation on a 15U cabinet

Wiring

The T-GEN 50 must be continuously powered from 24VDC at all times to supervise the 100V speaker line.
Power the T-GEN 50 from one of the AUX POWER terminals on the power supply. Each output is rated for at
least 2A, which is sufficient to drive one fully loaded T-GEN 50, but with no reserve to power any other
equipment from that output.
24VDC power supply for other ancillary devices must be supplied from one of the other AUX POWER terminals
on the power supply.
The T-GEN 50 is controlled from the NAC3 terminals of the power supply. These terminals are configured to
operate as an Alarm Devices output and are silenced from the Alarm screen of the touchscreen interface.
Wiring a single T-GEN 50 to a NAC output is shown in Figure 12.
