Installation

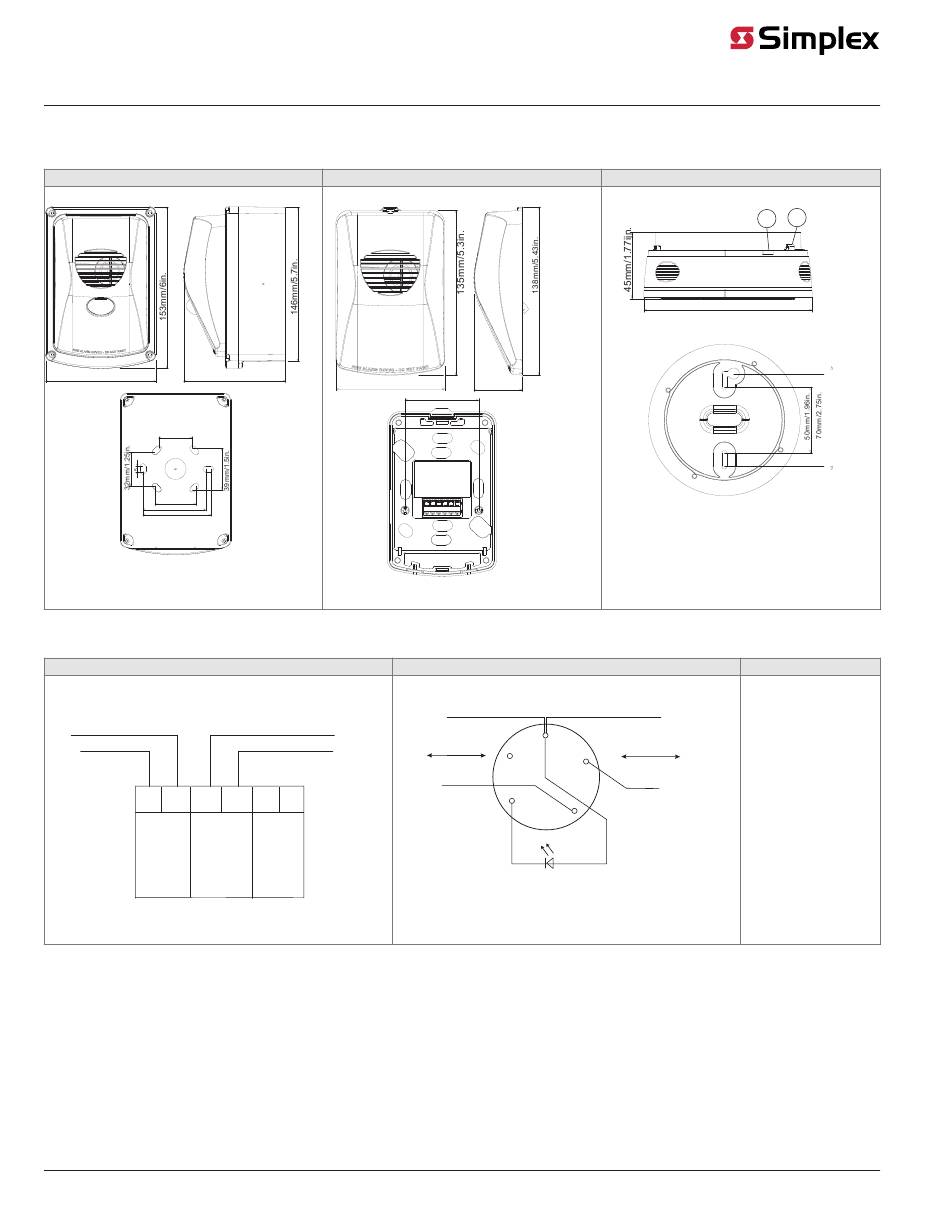

Dimensions
Weatherproof wall units
105mm/4.1in. 97mm/3.8in.
32mm/1.25in.
39mm/1.5in.
60mm/2.4in.
65mm/2.6in.
Figure 1: Sounder Beacon
Wiring
Wall variant wiring
Loop in
-
+ +
Figure 4: Wall variant wiring

Wiring notes

• All wiring must comply with local installation regulations and local fire system design requirements.
• Ensure all conductors are free of earths.
• Verify correct wiring and wiring polarity before connecting the devices to the addressable loop.
• Cables are to be selected in accordance with local standards, and with document 17A-02-D: MX Range of Addressable Controllers.
page 3
Indoor wall units
89mm/3.5in.
60.3mm/2.37in.
Figure 2: Sounder
Base variant wiring
Loop out
-
Screen
firealarmresources.com
Sounder and Sounder Beacon Installation Instructions
Base units
40mm/1.6in.
1. Temporary park plunger and indicator (yellow)
2. Address flag holder.
Loop positive
L1
- -
L2
L
Loop negative
R
M
Optional remote indicator
Figure 5: Base variant wiring
2
1
114mm/4.48in.
Figure 3: Base unit
for short circuit isolator.
Contact and Function
L: Not used
L1: Positive line in and
Loop positive
out
L2: Negative line
(isolator in and out)
M: Negative line (isolator
Loop negative
in or out)
R: Remote LED out,
wired only if a remote
indicator is required.
579-1317 Rev 1
