2.6 Rear Panel Introduction

Shift Compound key
Key operation is locked
The AC source is in
remote mode
Clibration
Record log
Transformer accessories
Switch controller
accessories
RMS OCP
OPP
PEAK OCP

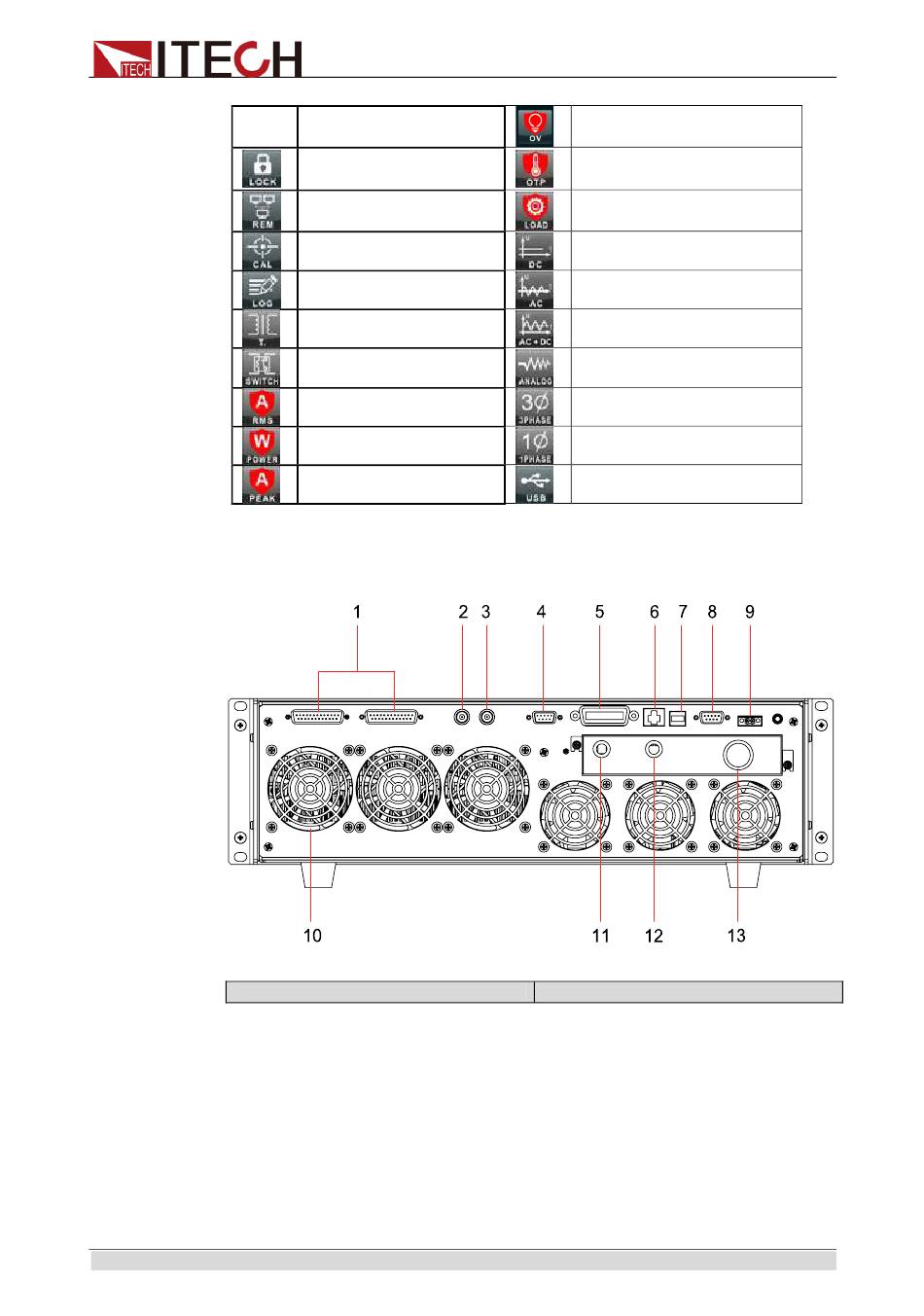

Rear panel of IT7622/IT7624
1 System bus
3 CLK_OUT, clock output
5 GPIB communication interface
7 USB communication interface
9 CAN communication interface
11 AC power output terminals
13 AC power input terminals
Copyright ©ITECH Electronic
OVP
OTP
OLP
DC mode
AC mode
AC+DC mode
External Simulation Test
Function
Three phase mode
Paralle mode
USB
2 CLK_IN, clock input
4 External simulation control terminal
6 LAN communication interface
8 RS232 communication interface
10 Vent hole
12 remote measurement terminals
Co., Ltd.
www.tehencom.com
Quick Start
25
