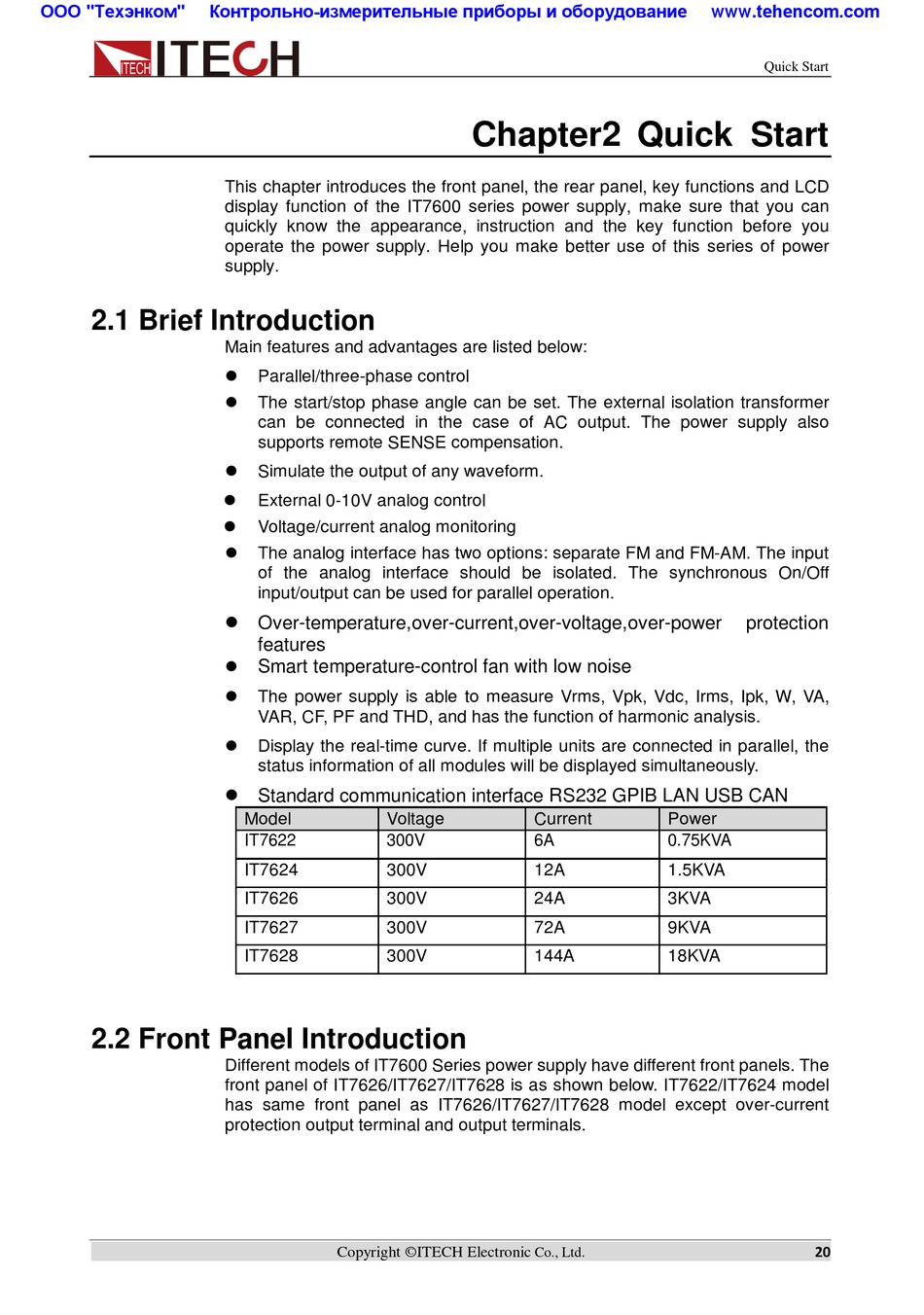

2.1 Brief Introduction

2.2 Front Panel Introduction

This chapter introduces the front panel, the rear panel, key functions and LCD
display function of the IT7600 series power supply, make sure that you can
quickly know the appearance, instruction and the key function before you
operate the power supply. Help you make better use of this series of power
supply.
Main features and advantages are listed below:

Parallel/three-phase control

The start/stop phase angle can be set. The external isolation transformer
can be connected in the case of AC output. The power supply also
supports remote SENSE compensation.

Simulate the output of any waveform.

External 0-10V analog control

Voltage/current analog monitoring

The analog interface has two options: separate FM and FM-AM. The input
of the analog interface should be isolated. The synchronous On/Off
input/output can be used for parallel operation.
 Over-temperature,over-current,over-voltage,over-power
features

Smart temperature-control fan with low noise

The power supply is able to measure Vrms, Vpk, Vdc, Irms, Ipk, W, VA,
VAR, CF, PF and THD, and has the function of harmonic analysis.

Display the real-time curve. If multiple units are connected in parallel, the
status information of all modules will be displayed simultaneously.
 Standard communication interface RS232 GPIB LAN USB CAN
Model Voltage
IT7622 300V
IT7624 300V
IT7626 300V
IT7627 300V
IT7628 300V
Different models of IT7600 Series power supply have different front panels. The
front panel of IT7626/IT7627/IT7628 is as shown below. IT7622/IT7624 model
has same front panel as IT7626/IT7627/IT7628 model except over-current
protection output terminal and output terminals.
Copyright ©ITECH Electronic

Chapter2 Quick Start

Current
6A
12A
24A
72A
144A
Co., Ltd.
www.tehencom.com
Quick Start
protection
Power
0.75KVA
1.5KVA
3KVA
9KVA
18KVA
