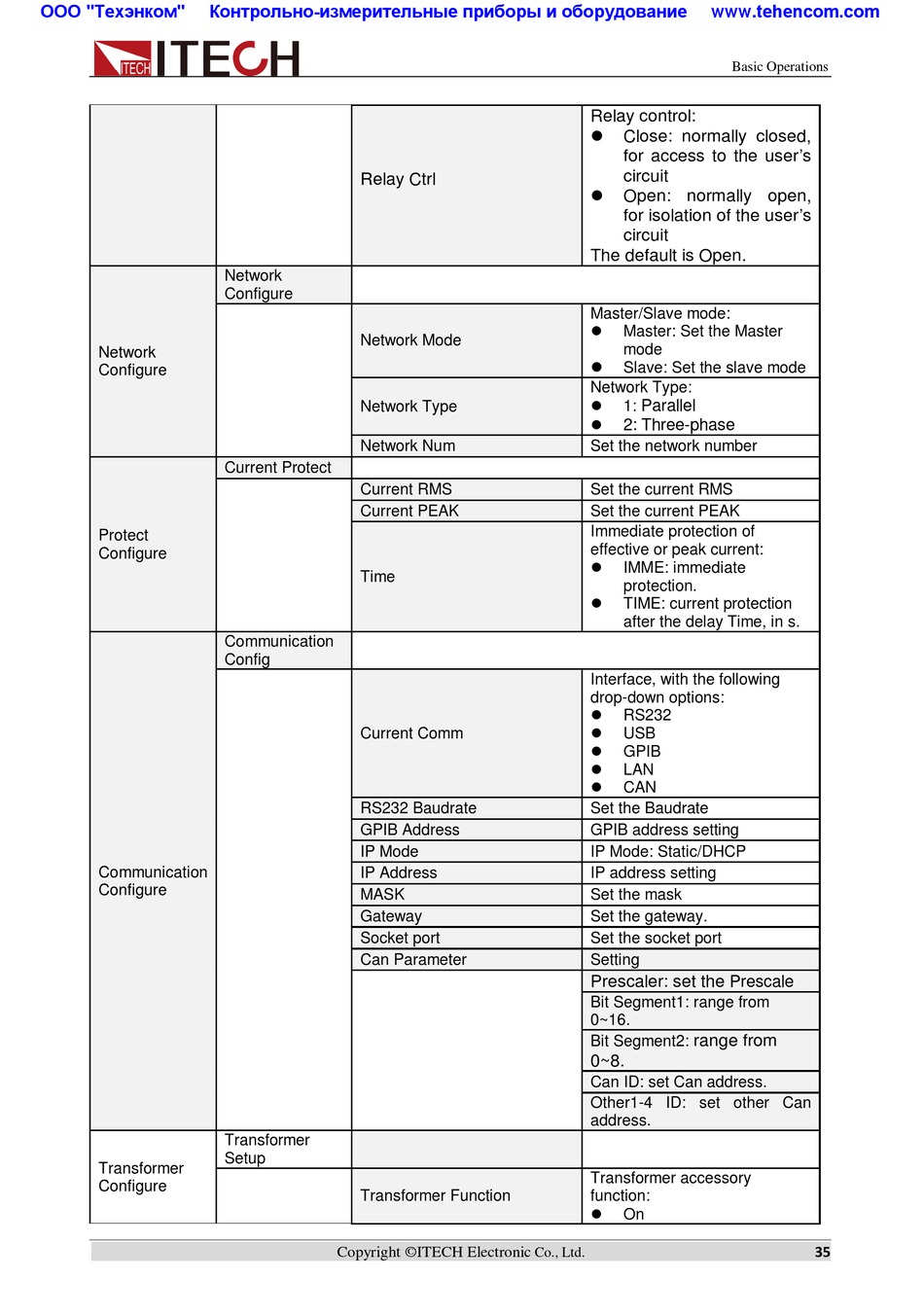

Network
Configure
Protect
Configure
Communication
Configure
Transformer
Configure
Relay Ctrl
Network
Configure
Network Mode
Network Type
Network Num
Current Protect
Current RMS
Current PEAK
Time
Communication
Config
Current Comm
RS232 Baudrate
GPIB Address
IP Mode
IP Address
MASK
Gateway
Socket port
Can Parameter
Transformer
Setup
Transformer Function
Copyright ©ITECH Electronic
Relay control:

Close: normally closed,
for access to the user's
circuit

Open: normally open,
for isolation of the user's
circuit
The default is Open.
Master/Slave mode:

Master: Set the Master
mode

Slave: Set the slave mode
Network Type:

Parallel
1:

2: Three-phase
Set the network number
Set the current RMS
Set the current PEAK
Immediate protection of
effective or peak current:

IMME: immediate
protection.

TIME: current protection
after the delay Time, in s.
Interface, with the following
drop-down options:

RS232

USB

GPIB

LAN

CAN
Set the Baudrate
GPIB address setting
IP Mode: Static/DHCP
IP address setting
Set the mask
Set the gateway.
Set the socket port
Setting
Prescaler: set the Prescale
Bit Segment1: range from
0~16.
range from
Bit Segment2:
0~8.
Can ID: set Can address.
Other1-4 ID: set other Can
address.
Transformer accessory
function:

On
