Parameters of the surge/trap edit zone are as follows:
Parameter Explain
AC Set the AC signal amplitude (RMS).
Freq Set the AC signal frequency.
Period Set the AC signal period.
Width Set the surge/trap width.
Percent Set the percentage of the surge/trap amplitude to AC
signal amplitude (RMS).
3. Press [Trig Ctr] to set the Off/On state of trigger control.
Off: run the set surge/trap based on the time.
On: run the set surge/trap after receiving the trigger signal.
4. After setting the parameters, press [On] on the front panel. Then press

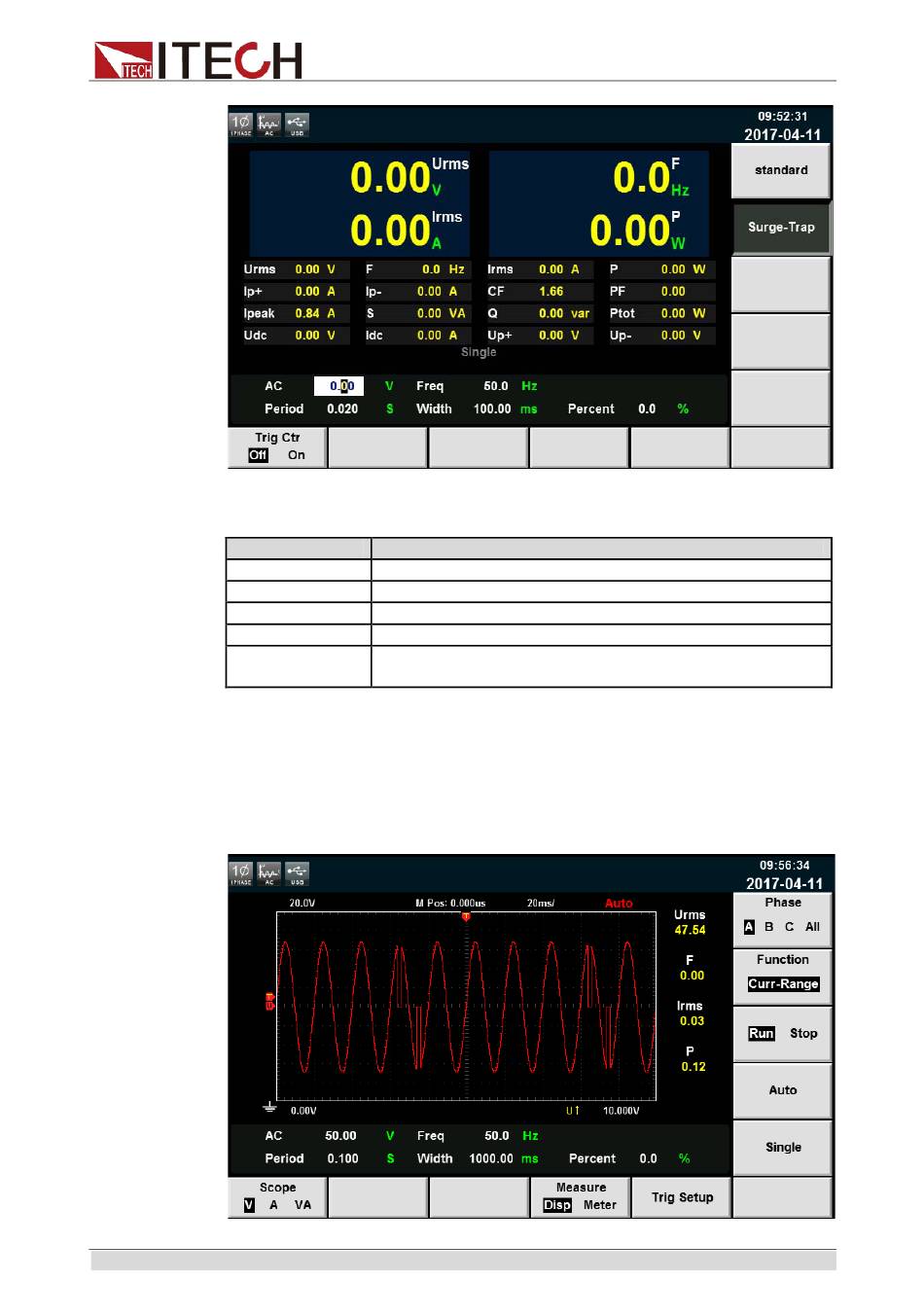

[Scope], and the following waveform interface will appear
