Chapter4 Measurement Functions

This chapter describes the characteristics and operations of the basic metering
function of IT7600 series source.
IT7600 series source has rich functions of basic metering of electric energy and
can accurately measure the parameters such as Vrms, Irms, Ipeak, Idc, CF, PF

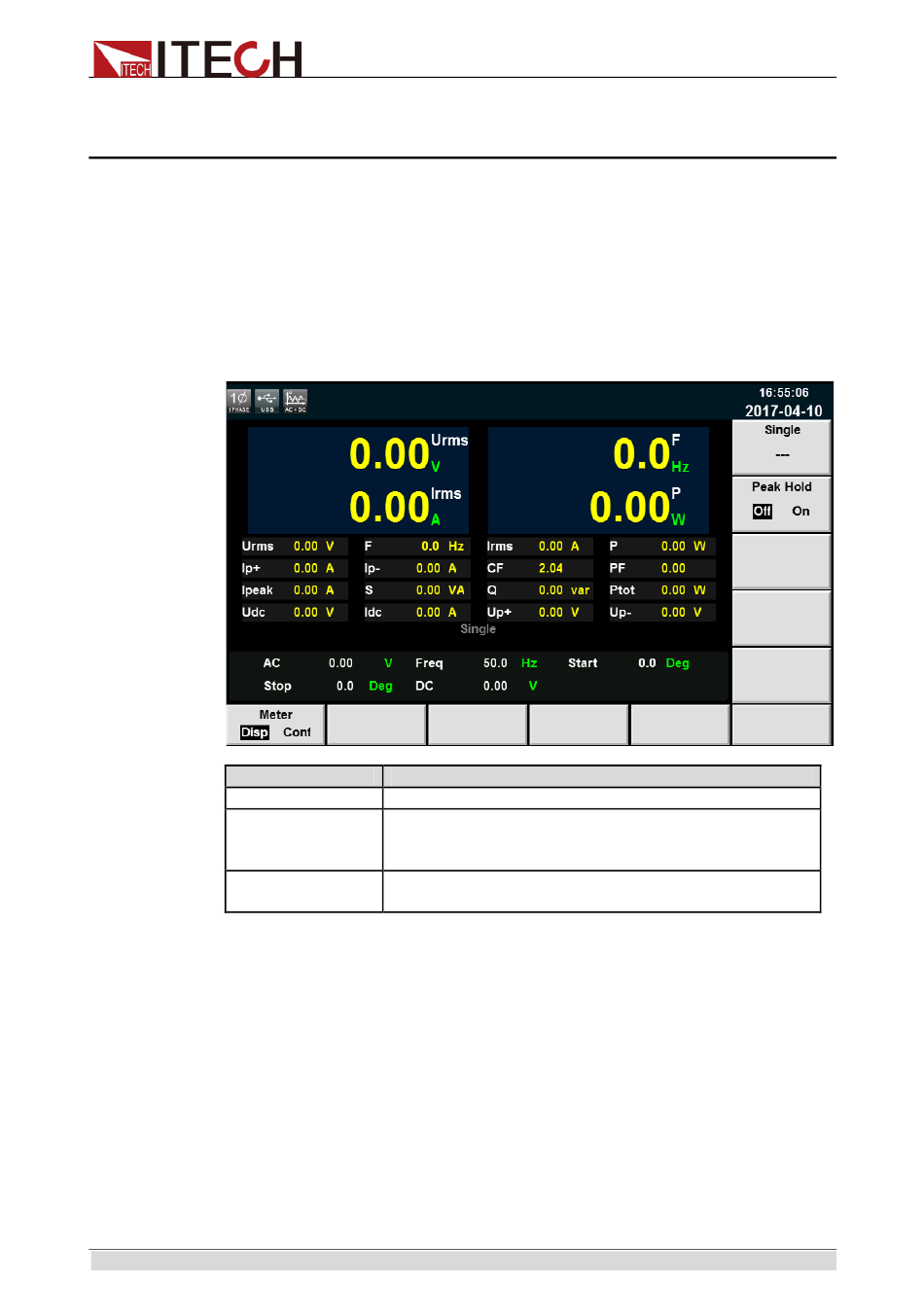

Press [Meter] on the front panel to enter the metering interface, as shown in
the figure below.
Soft Key of Menu Description
Single Single mode
Peak Hold Peak Holding Mode
On: to enable the peak holding mode
Off: to disable the peak holding mode.
Meter Disp: metering display interface
Conf: metering parameter configuration interface
Press [Meter] on the lower part of the screen, and then press [Conf] to enter
the metering parameter configuration interface, as shown in the figure below.
