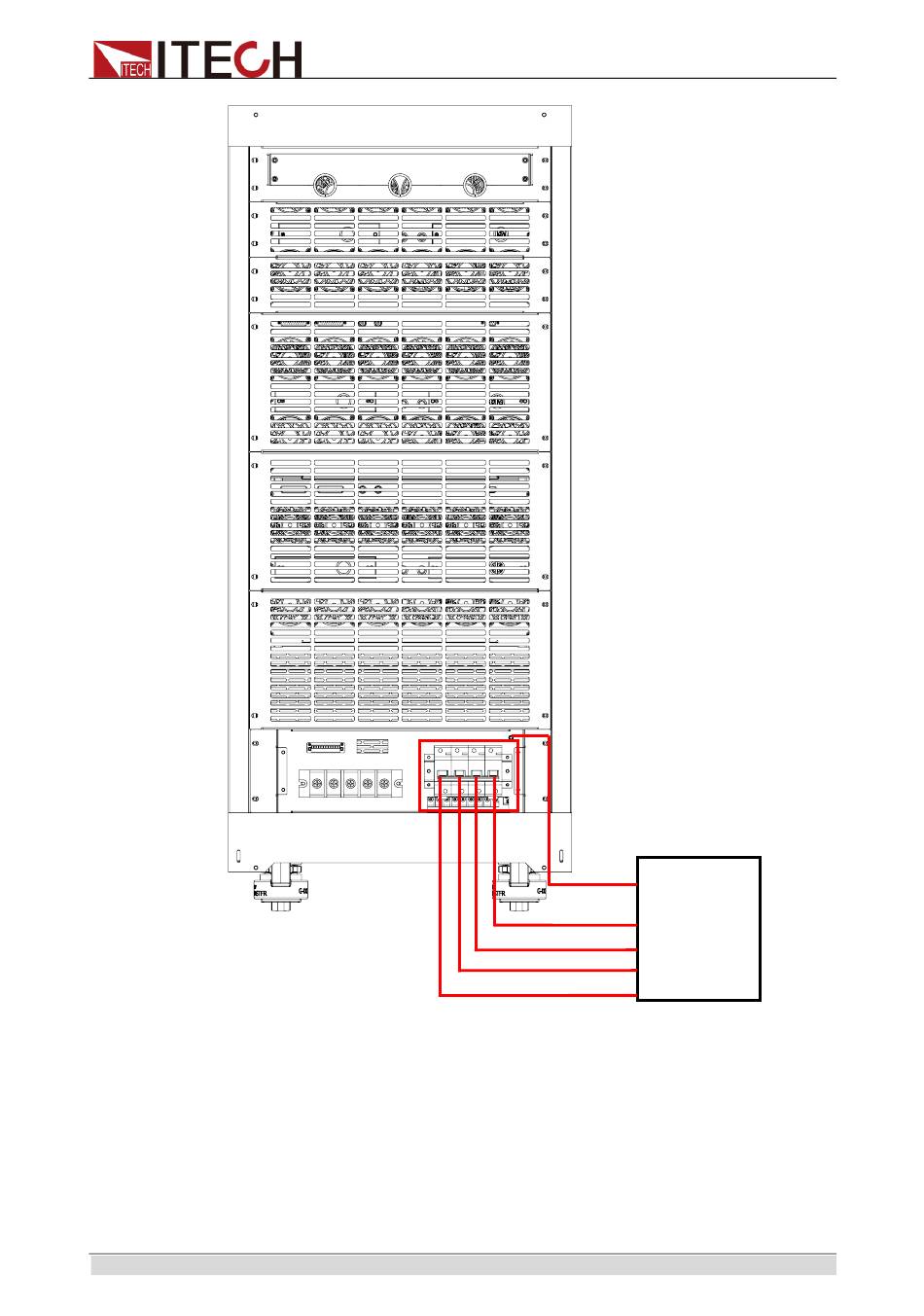

In the above illustration, one end of the AC power cord is connected to the AC
input terminal in the rear board of the power supply. Connect the L1,L2,L3,N
and GND to the corresponding terminal of the device. Before inserting, please
loosen the screw, lock the screw when it is inserted.
Connect the five terminals brown to line ( L1), gray to line ( L2), black to line
( L3), blue to neutral ( N), and yellow to ground ( G) on the other end of the
power cord to your AC distribution panel.
