Chapter8 Configuration of Any Waveform

8.1 List Function

Create a new single-phase LIST file
This chapter will introduce configuration of any waveform of IT7600. Besides
the five standard waveforms (see 3.6 Waveform selection) built in the main
interface, the user can enable the outputting of AC wave sequences of different
amplitudes through List and self-define function. Waveform Configuration is not
available for DC and ACDC modes.
Under IT7600 List mode, at maximum of 50 steps can be edited for each List
file. The user can choose any waveform from existing 11 waveforms. Or, the
user can choose a waveform file stored in the device through self-define
function (see
8.3 Self-defined Waveform Function for details) and combine the waveform files
into a List file based on required order. Meanwhile, the user can set the starting
steps of the List file, run count and end state of the waveform, and edit
parameters such as frequency, amplitude, running time and rising slope of each
waveform.
Under single-phase mode, the user can output AC waveform sequences with
different amplitudes by creating a new List file. Detailed operation steps are as
below:

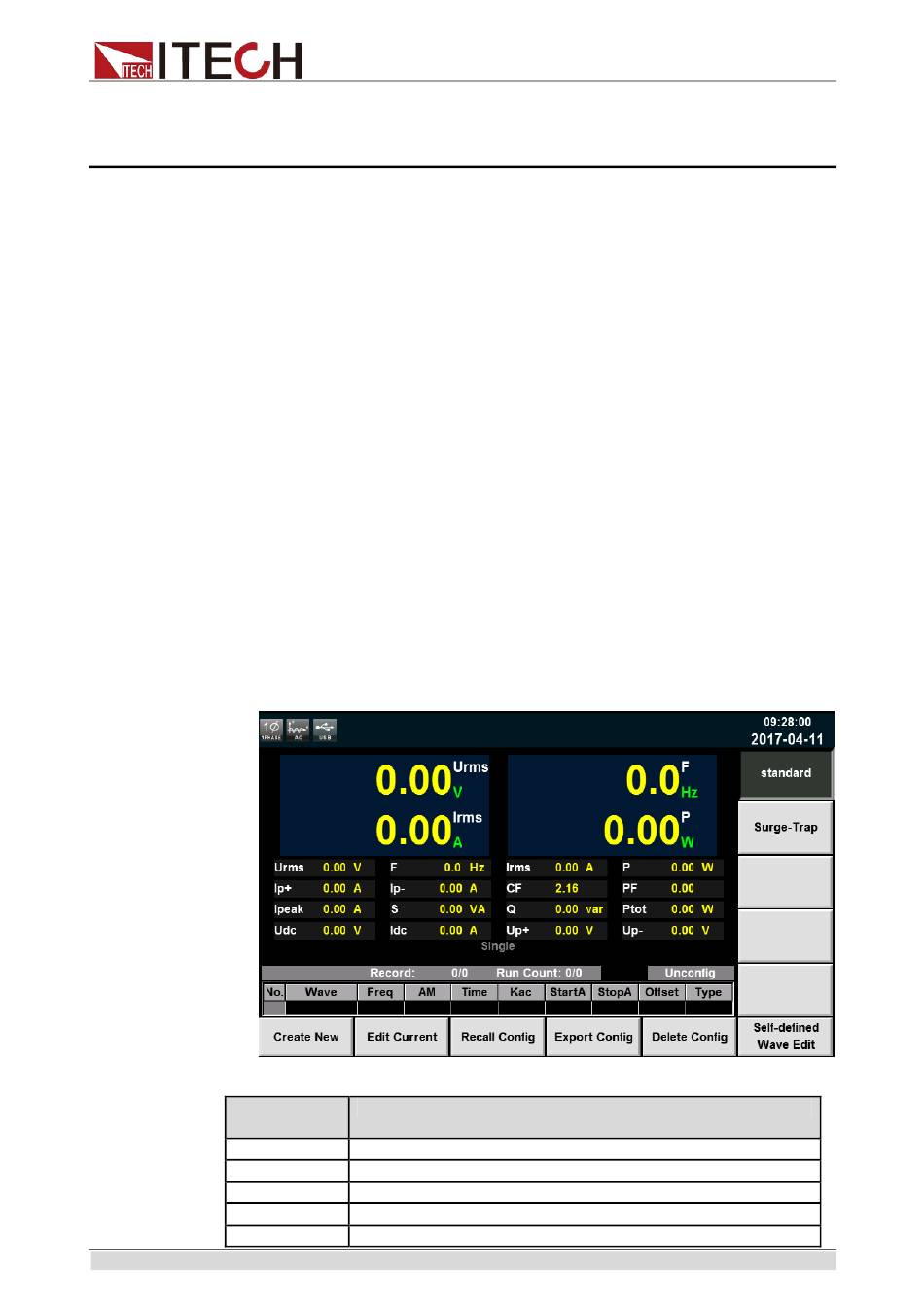

1. Press [List] on the front panel to enter the List function configuration
interface, select soft key [standard]. as shown in the figure below.
Soft Key of Description
Menu
Create a new List file.
Create New
Edit the saved List file.
Edit Current
Recall the saved List file.
Recall Config
Export Config Export list file
Delete Config Delete list file
