2.3 Key introduction

1 Operation buttons
3 LCD display
Up, down, left and right key
5
and
e nter key
7 Number key
9 Esc key,Clear key and Enter key
11 Power Switch
13 Ventle hole
15 Overcurrent protection output
terminal
17 Output terminals
The key functions of the front panel and the keys in the key zones of IT7600

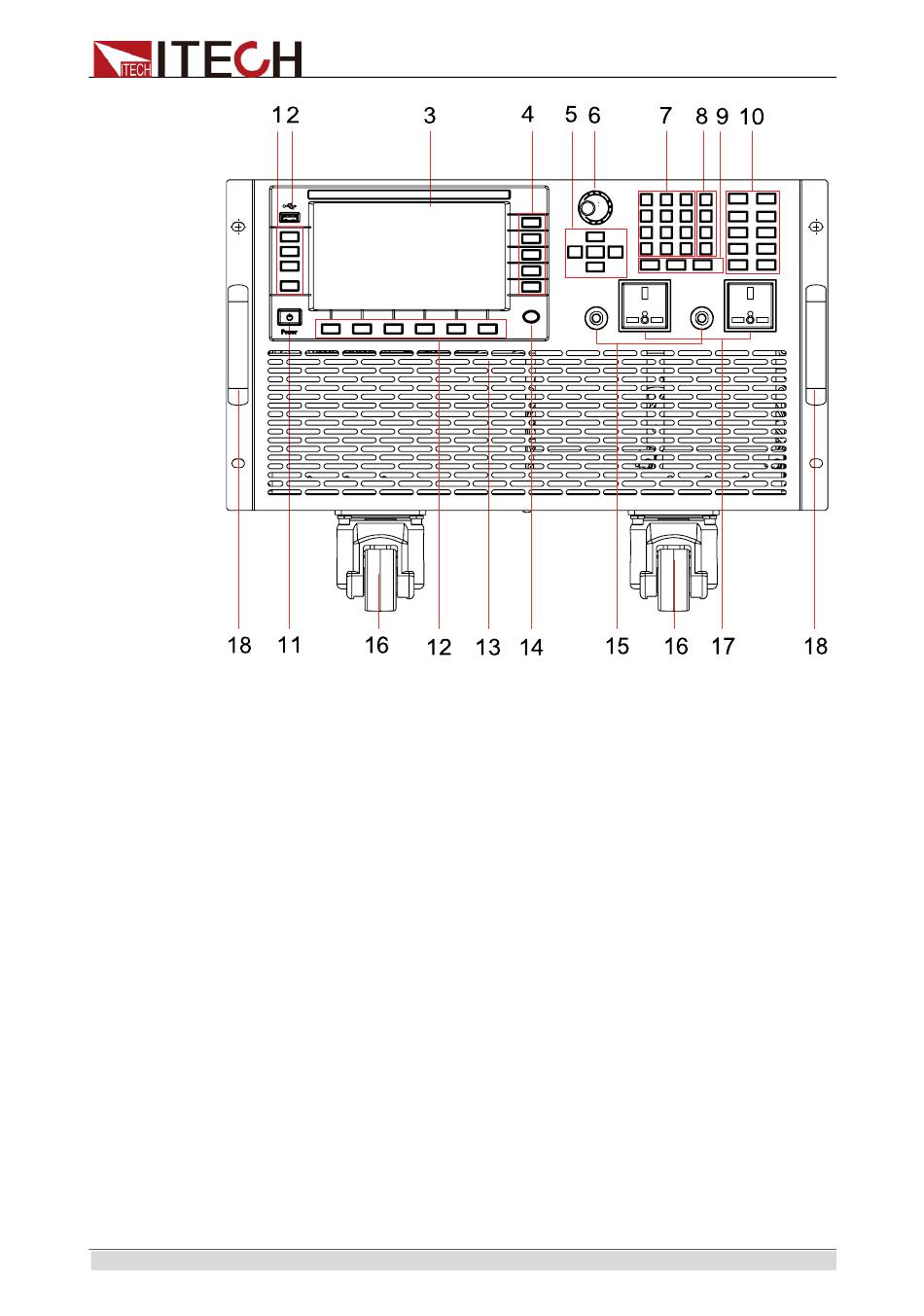

series are shown in the following figure.
Copyright ©ITECH Electronic
2 USB interface
4 Menu soft key
6 Rotary knob
8 M1-M4 multi-function keys
10 Function key
12 Menu soft key
14 Home key
16 Left and right caster
18 Left and right handle
