List Function

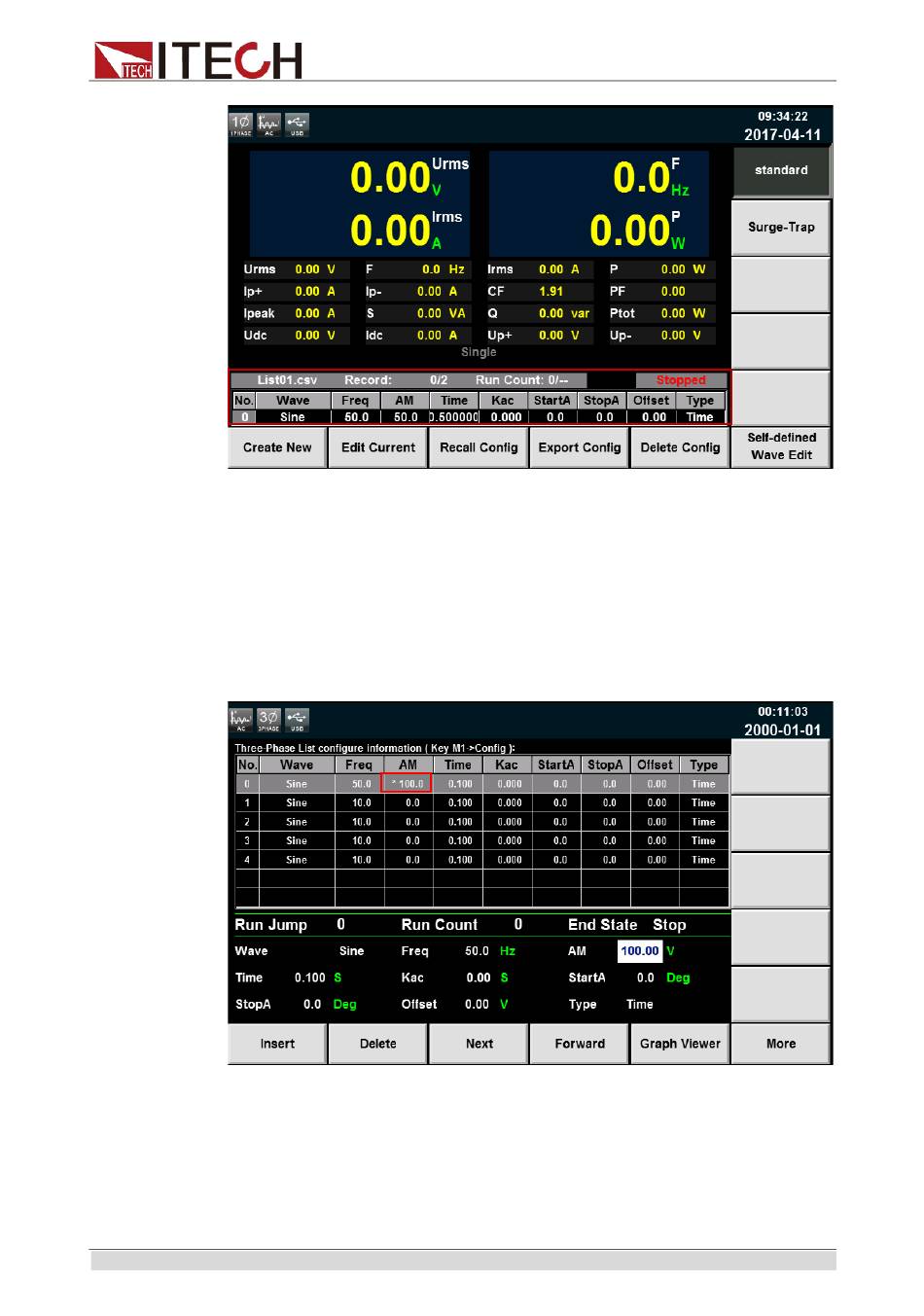

Configure the List parameters under three-phase mode
List parameter configuration under the three-phase mode differs from that
under the single-phase mode. Other operating steps remain the same. List
parameter configuration interface under the three-phase mode is shown in the
figure below. The user can set a series of parameters such as waveform and
frequency of each step in the List interface. Press soft key [Insert] and the
system defaults to insert this single step under the three-phase balance mode.
The three-phase parameters remain consistent.
To set parameters of each phase, click [More] to appear a detailed interface of
List single-step parameter configuration under the three-phase mode. The user
can complete all configurations of the three-phase parameters, as shown in the
figure below. After configuring, go back to the List interface. Parameters with
inconsistent three-phase are marked with a "*" at front, as shown in the red box
above. The list only displays A-phase parameters.
