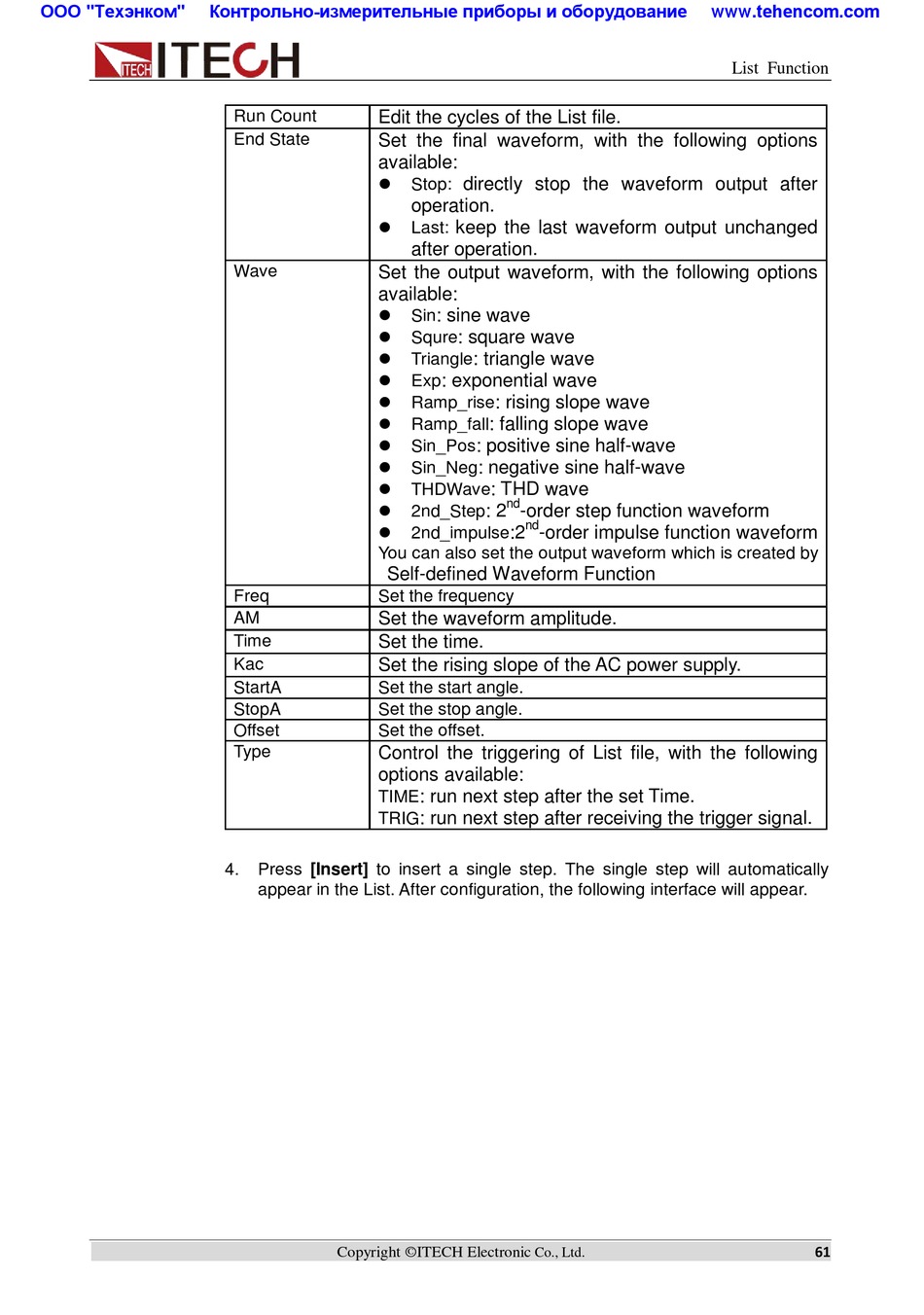

Run Count Edit the cycles of the List file.
End State Set the final waveform, with the following options
available:


Wave Set the output waveform, with the following options
available:











You can also set the output waveform which is created by
Self-defined Waveform Function
Freq Set the frequency
AM
Set the waveform amplitude.
Time Set the time.
Kac Set the rising slope of the AC power supply.
StartA Set the start angle.
StopA Set the stop angle.
Offset Set the offset.
Type Control the triggering of List file, with the following
options available:
TIME
TRIG
4. Press [Insert] to insert a single step. The single step will automatically
appear in the List. After configuration, the following interface will appear.
Copyright ©ITECH Electronic
directly stop the waveform output after
Stop:
operation.
keep the last waveform output unchanged
Last:
after operation.
: sine wave
Sin
: square wave
Squre
: triangle wave
Triangle
: exponential wave
Exp
: rising slope wave
Ramp_rise
: falling slope wave
Ramp_fall
: positive sine half-wave
Sin_Pos
: negative sine half-wave
Sin_Neg
: THD wave
THDWave
nd
: 2 -order step function waveform
2nd_Step
nd
:2 -order impulse function waveform
2nd_impulse
: run next step after the set Time.
: run next step after receiving the trigger signal.
