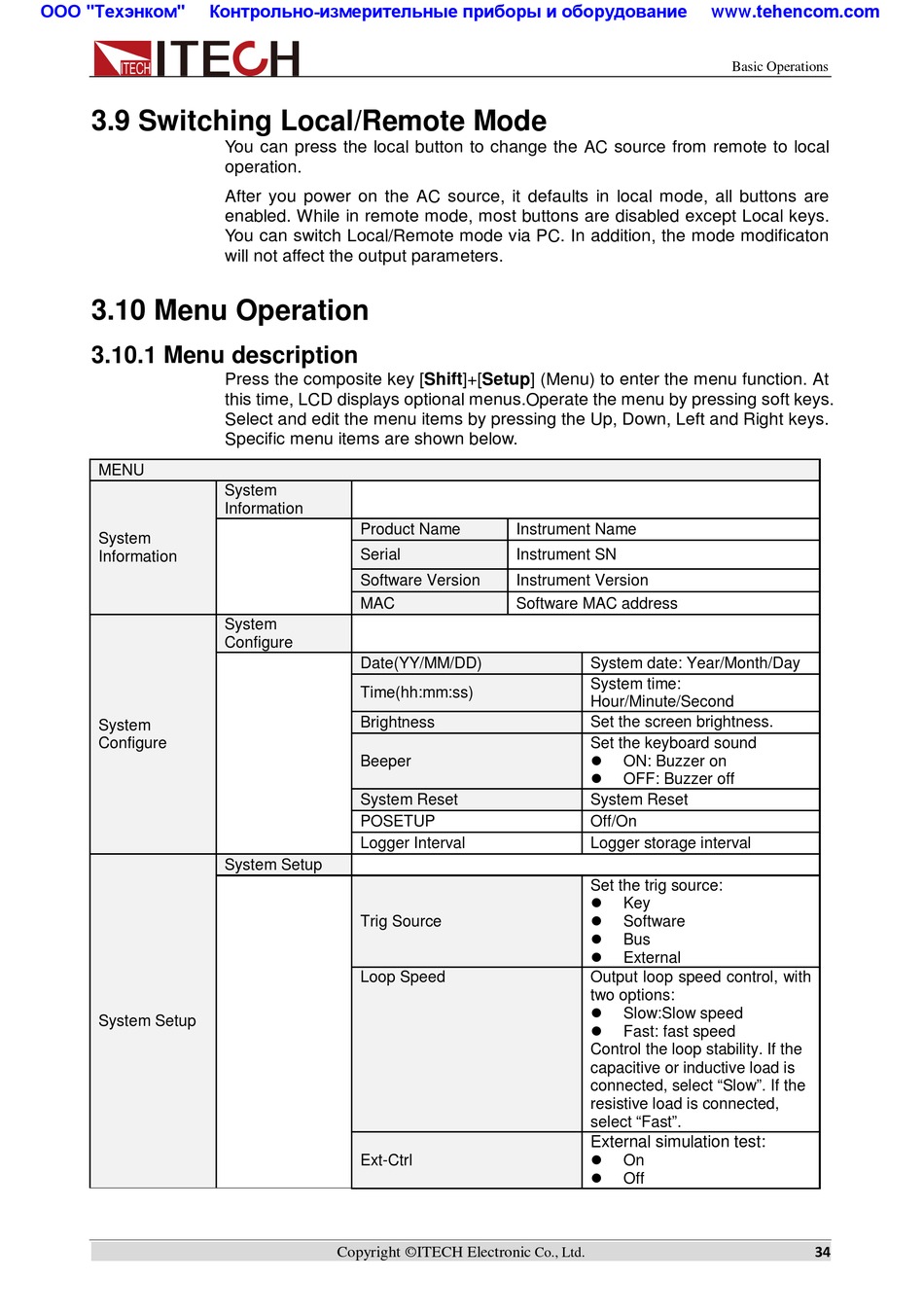

3.9 Switching Local/Remote Mode

3.10 Menu Operation

3.10.1 Menu description
MENU
System
Information
System
Configure
System Setup
You can press the local button to change the AC source from remote to local
operation.
After you power on the AC source, it defaults in local mode, all buttons are
enabled. While in remote mode, most buttons are disabled except Local keys.
You can switch Local/Remote mode via PC. In addition, the mode modificaton
will not affect the output parameters.
Press the composite key [Shift]+[Setup] (Menu) to enter the menu function. At
this time, LCD displays optional menus.Operate the menu by pressing soft keys.
Select and edit the menu items by pressing the Up, Down, Left and Right keys.
Specific menu items are shown below.
System
Information
Product Name
Serial
Software Version
MAC
System
Configure
Date(YY/MM/DD)
Time(hh:mm:ss)
Brightness
Beeper
System Reset
POSETUP
Logger Interval
System Setup
Trig Source
Loop Speed
Ext-Ctrl
Copyright ©ITECH Electronic
Instrument Name
Instrument SN
Instrument Version
Software MAC address
System date: Year/Month/Day
System time:
Hour/Minute/Second
Set the screen brightness.
Set the keyboard sound

ON: Buzzer on

OFF: Buzzer off
System Reset
Off/On
Logger storage interval
Set the trig source:

Key

Software

Bus

External
Output loop speed control, with
two options:

Slow:Slow speed

Fast: fast speed
Control the loop stability. If the
capacitive or inductive load is
connected, select "Slow". If the
resistive load is connected,
select "Fast".
External simulation test:

On

Off
