Basic Operations


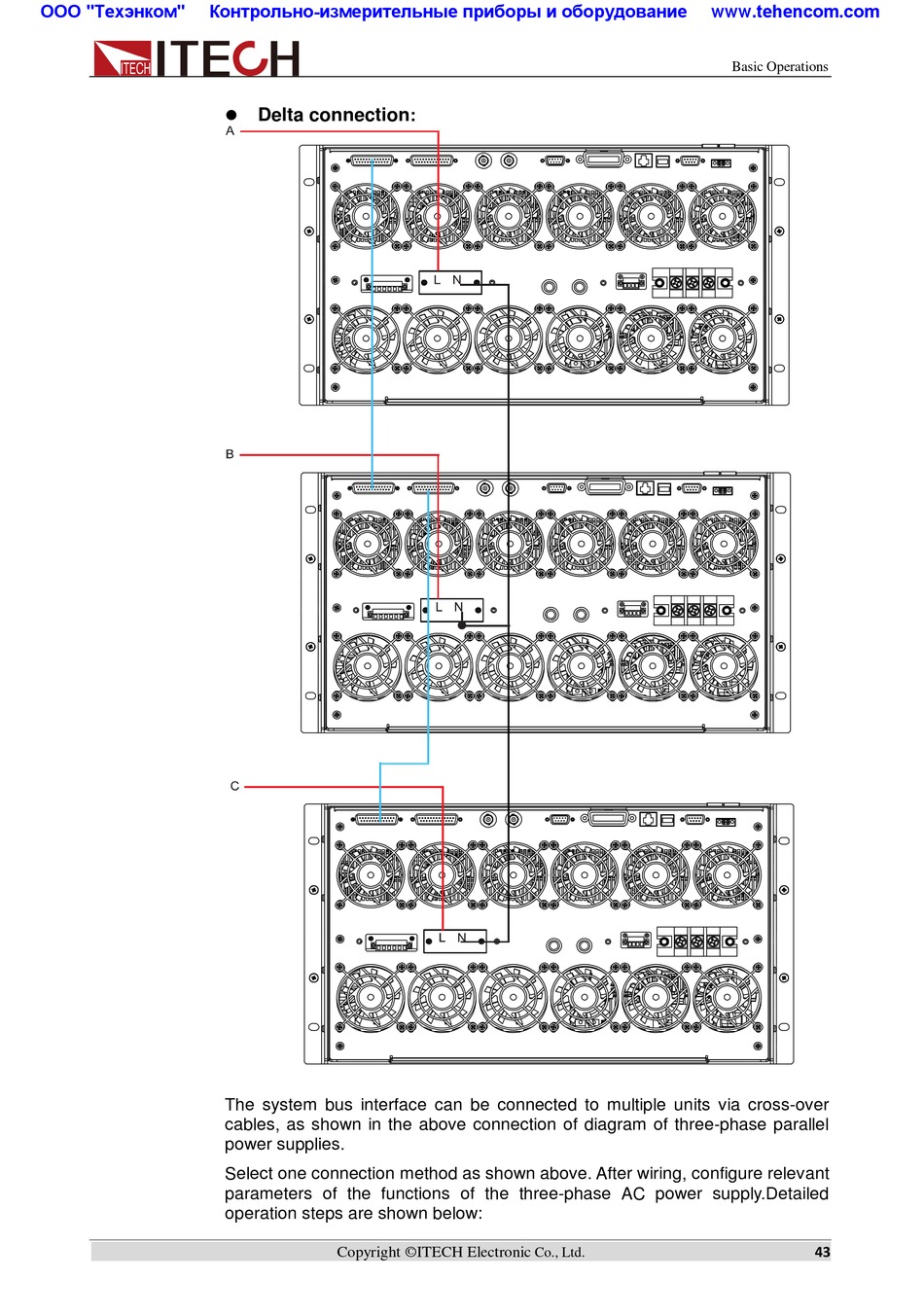

Delta connection
:
The system bus interface can be connected to multiple units via cross-over
cables, as shown in the above connection of diagram of three-phase parallel
power supplies.
Select one connection method as shown above. After wiring, configure relevant
parameters of the functions of the three-phase AC power supply.Detailed
operation steps are shown below:
