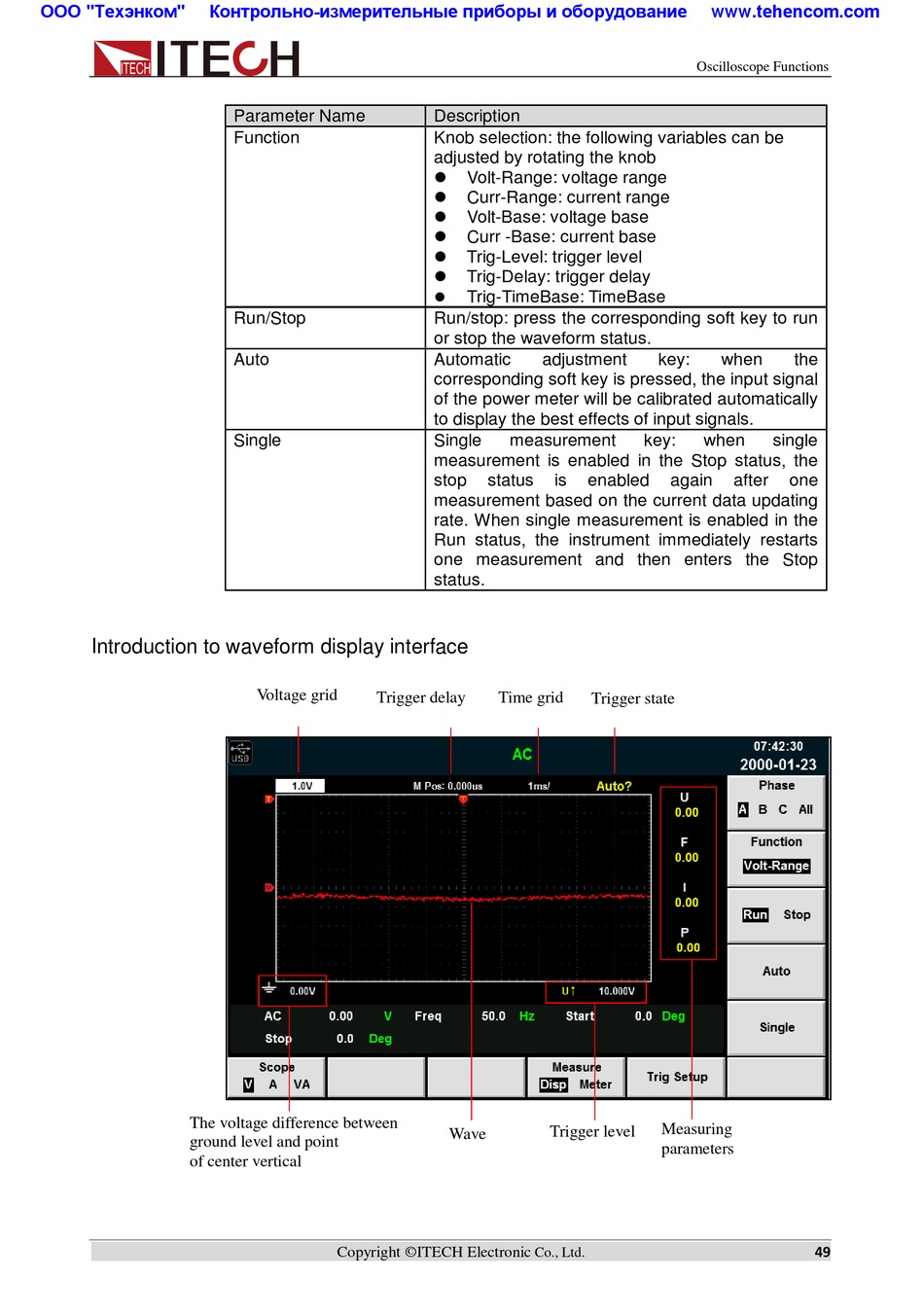

Introduction to waveform display interface
The voltage difference between
ground level and point
of center vertical
Parameter Name
Function
Run/Stop
Auto
Single
Voltage grid
Trigger delay
Copyright ©ITECH Electronic
Description
Knob selection: the following variables can be
adjusted by rotating the knob

Volt-Range: voltage range

Curr-Range: current range

Volt-Base: voltage base

Curr -Base: current base

Trig-Level: trigger level

Trig-Delay: trigger delay

Trig-TimeBase: TimeBase
Run/stop: press the corresponding soft key to run
or stop the waveform status.
Automatic adjustment
corresponding soft key is pressed, the input signal
of the power meter will be calibrated automatically
to display the best effects of input signals.
Single measurement
measurement is enabled in the Stop status, the
stop status is enabled
measurement based on the current data updating
rate. When single measurement is enabled in the
Run status, the instrument immediately restarts
one measurement and then enters the Stop
status.
Time grid
Trigger state
Trigger level
Wave
Co., Ltd.
www.tehencom.com
Oscilloscope Functions
key: when the
key: when single
again after one
Measuring
parameters
