Export a self-defined waveform file

8.4 THD Wave

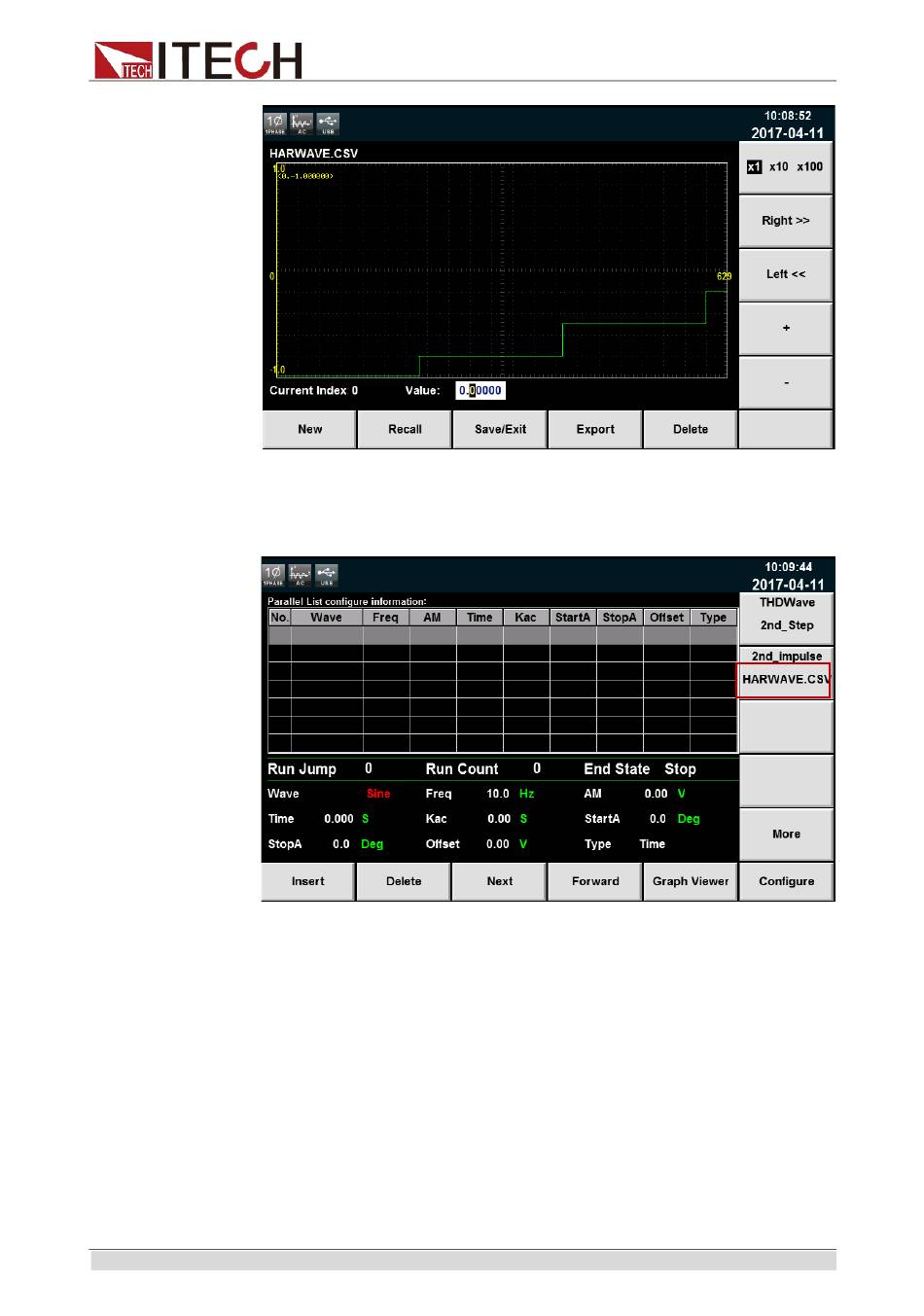

6. Press soft key [Save/Edit] to save the self-defined waveform file. During
List operation, the self-defined waveform file will be added in the
corresponding waveform selection list. As shown by the red box below.
1. Insert the USB disk into the USB interface of the front panel.
2. Press [List] on the front panel for List function configuration. Press soft key
[Self-defined Wave Edit].
3. Press soft key [Export]. Select the saved harWave csv file. Press [Enter]
for confirmation. This file will be exported into the USB disk.
The distorted waveform can simulate voltage harmonic wave in the circuit. The
user can set the extent to which the output voltage waveform deviates from the
Sin wave voltage and test the usage of the DUT under this circumstance.
