3.3 DC Output Mode

3.4 ACDC Output Mode

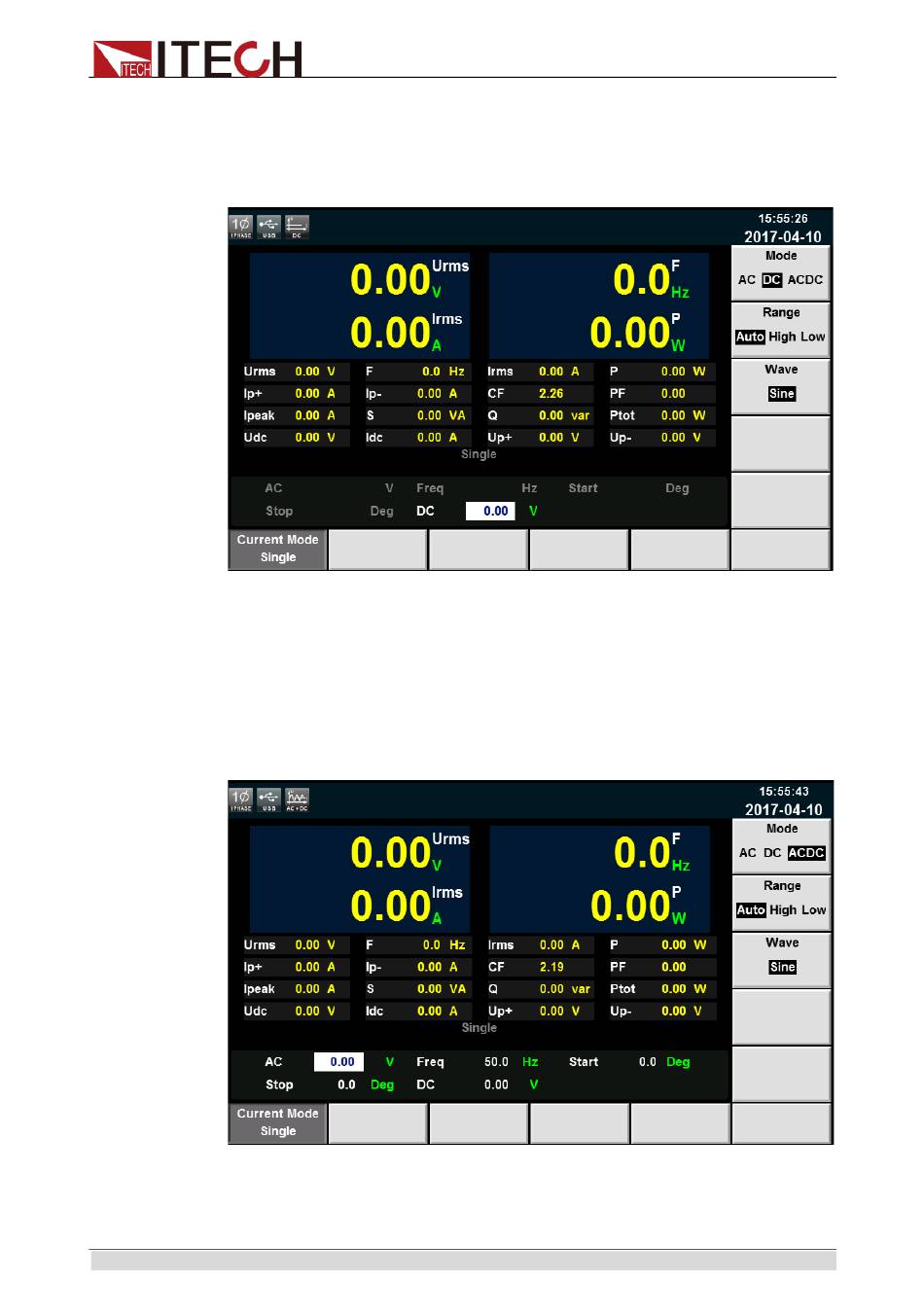

If user set DC Mode, the instrument will simulate DC power supply. Set the
output voltage of the DC power supply in the main interface, as shown in the
figure below.
DC: DC voltage value. Setting range is different among Auto, High and Low
range. Refer to 9.1 Main technical parameters for more details.
If user set ACDC Mode, the instrument will simulate AC and DC power supply,
which can add DC component to AC voltage. Set the output voltage in the main
interface, as shown in the figure below.
Copyright ©ITECH Electronic
Co., Ltd.
www.tehencom.com
Basic Operations
31
