Operating steps

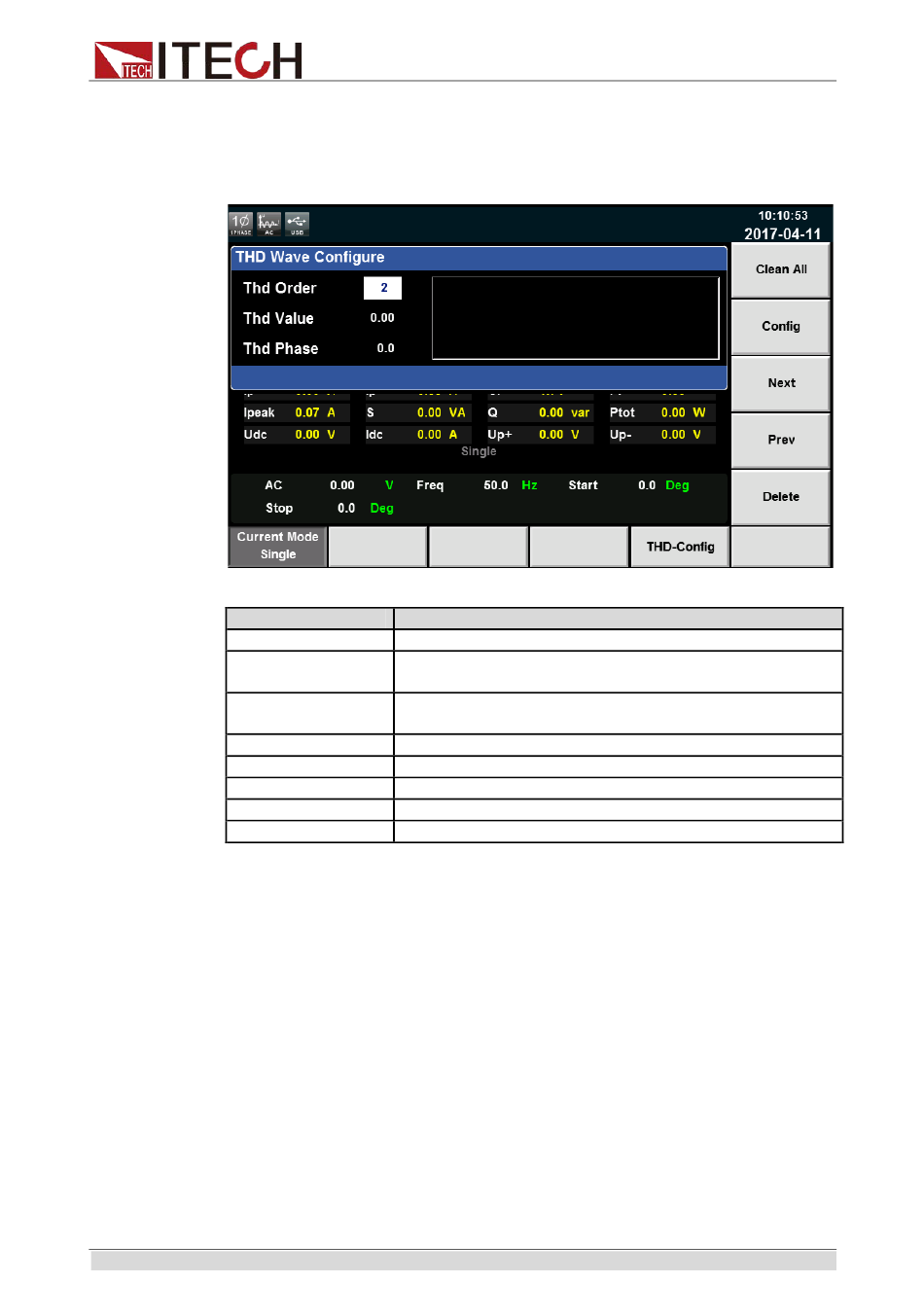

1. Select the wave in the main interface, the tab "THD Config" will appear
under the page. Press [THD Config] to enter the THD Wave Configure
interface, as shown in the figure below.
Parameter
Thd Order
Thd Value
Thd Phase
Clean
Config
Next
Prev
Delete
2. Set the harmonic distortion waveform, and press [Enter]. The set
parameter will be displayed in the right zone, as shown in the figure below.
Copyright ©ITECH Electronic
Explain
Set the order number.
Set the corresponding harmonic distortion factor within
the range 0-0.3.
Set the corresponding harmonic phase within the range
0°-360°.
Clear all the set THD waveforms.
Configure the THD waveform.
View next THD parameter.
View the previous THD parameter.
Delete the THD parameter.
