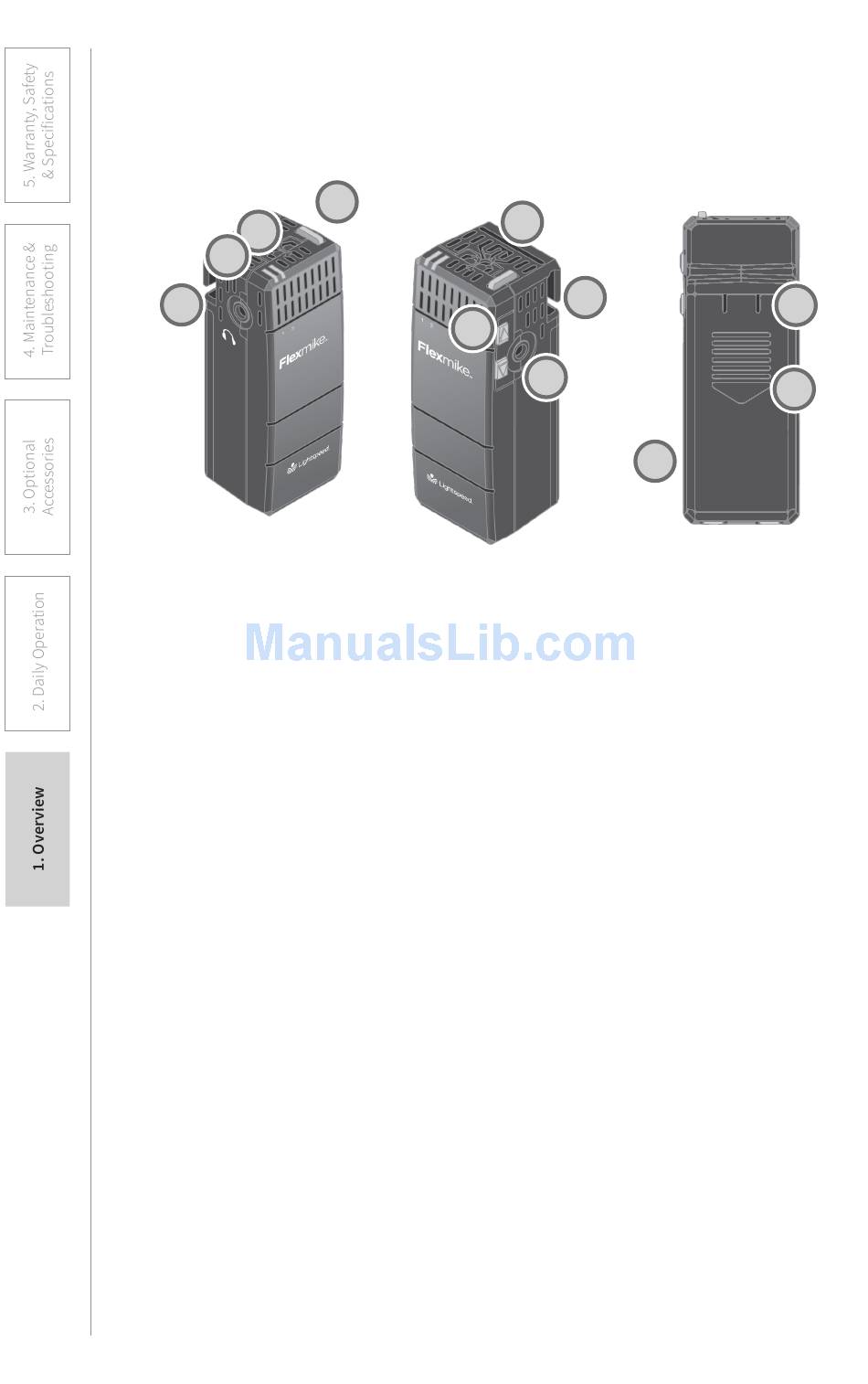

FLEXMIKE CONTROLS AND CONNECTIONS
1. POWER/MUTE SWITCH: press and hold to power on, press to mute, press
and hold to power off.
2. MIC 1 STATUS: lighted to indicate microphone is registered as MIC 1
• Blue: solid = normal operation; Blue: flashing = linking in progress
• Red: solid = muted; Red: flashing = muted while linking in progress
3. MIC 2 STATUS: when using a second microphone, this LED is lighted to
indicate microphone is registered as MIC 2 (same behavior as MIC 1 status
light above)
4. EARBUD/MIC CONNECTION: connect the earbud for monitoring *for use
with Activate Pods only, also may be used with the optional EMA (earset)
or LMA (lapel) microphones
5. CHARGING/LOW BATTERY INDICATOR: lights red when charging, green
when fully charged. When in operation, turns red to indicate low battery.
6. MICROPHONE VOLUME UP/DOWN
7. AUDIO INPUT: connect audio source to send to Topcat Access
8. LANYARD INTERFACE: insert the lanyard into this hook to wear the
Flexmike.
9. BATTERY DOOR: remove the battery door to replace the rechargeable
battery pack
10. REGISTRATION: (inside battery compartment - not shown) only used
when adding or replacing Flexmike.
11. SYSTEM ID LABEL
10
1
3
2
4
5
8
6
7
11
9
10
