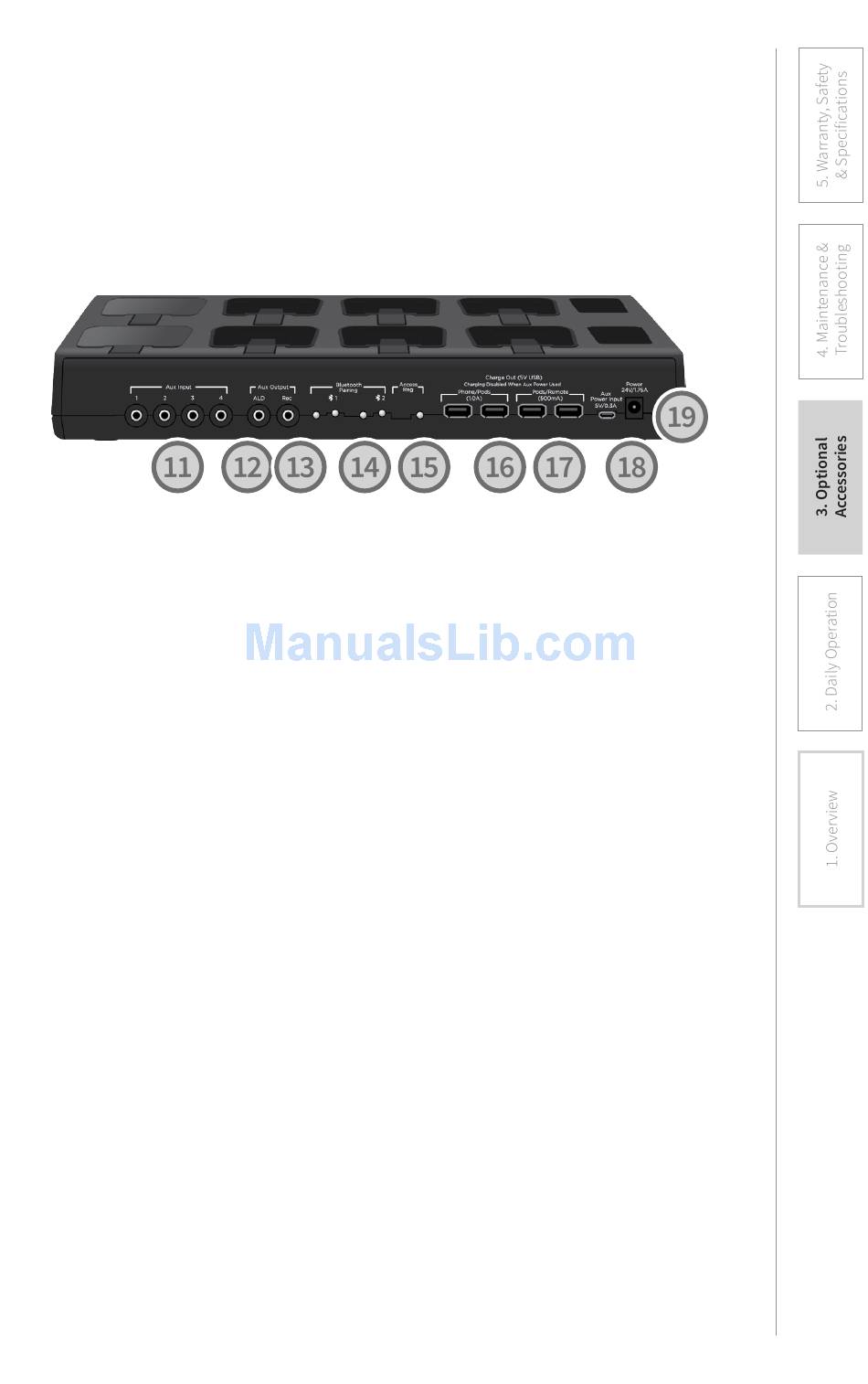

ACTIVATE STATION: CONTROLS, CONNECTIONS
AND INDICATORS,
11. AUDIO INPUTS (1-4): connect
a multimedia audio source to
wirelessly send the audio to be
played through the whole classroom
speaker(s).
12. AUDIO OUTPUT (ALD): connect
Assistive Listening Device to send
the whole classroom audio to an
individual student's device.
13. AUDIO OUTPUT (REC): connect
recording device to send the teacher's
selected audio source, the whole
classroom speaker, to a recording
device or installed camera.
14. BLUETOOTH PAIRING (1-2):
press this button to pair Activate
to a mobile device. Download the
Lightspeed Activate app from the iOS
App Store or Google Play Store for
complete instructions.
15. ACCESS REGISTRATION: this button
is used to pair the Activate Station
with the classroom audio system. If
purchased together this is done by
default at the factory.
CONT'D
16. USB CHARGE OUTPUTS (PHONE/
PODS): use the first two USB ports to
charge a mobile phone or optional
additional pods.
17. USB CHARGE OUTPUTS (PODS/
SHAREMIKE): use these two USB
ports to charge optional additional
pods or optional Sharemike.
18. AUX POWER INPUT: 5V USB power
from a laptop or USB power pack can
be used in a portable application to
power the Activate Station wireless
audio functions (in place of the
standard 24V power supply). Note:
Charging is disabled when auxiliary
power is used.
19. DC POWER INPUT: plug the primary
24V/1.75A power supply into this jack.
