Summary of Contents for Lightspeed REDCAT

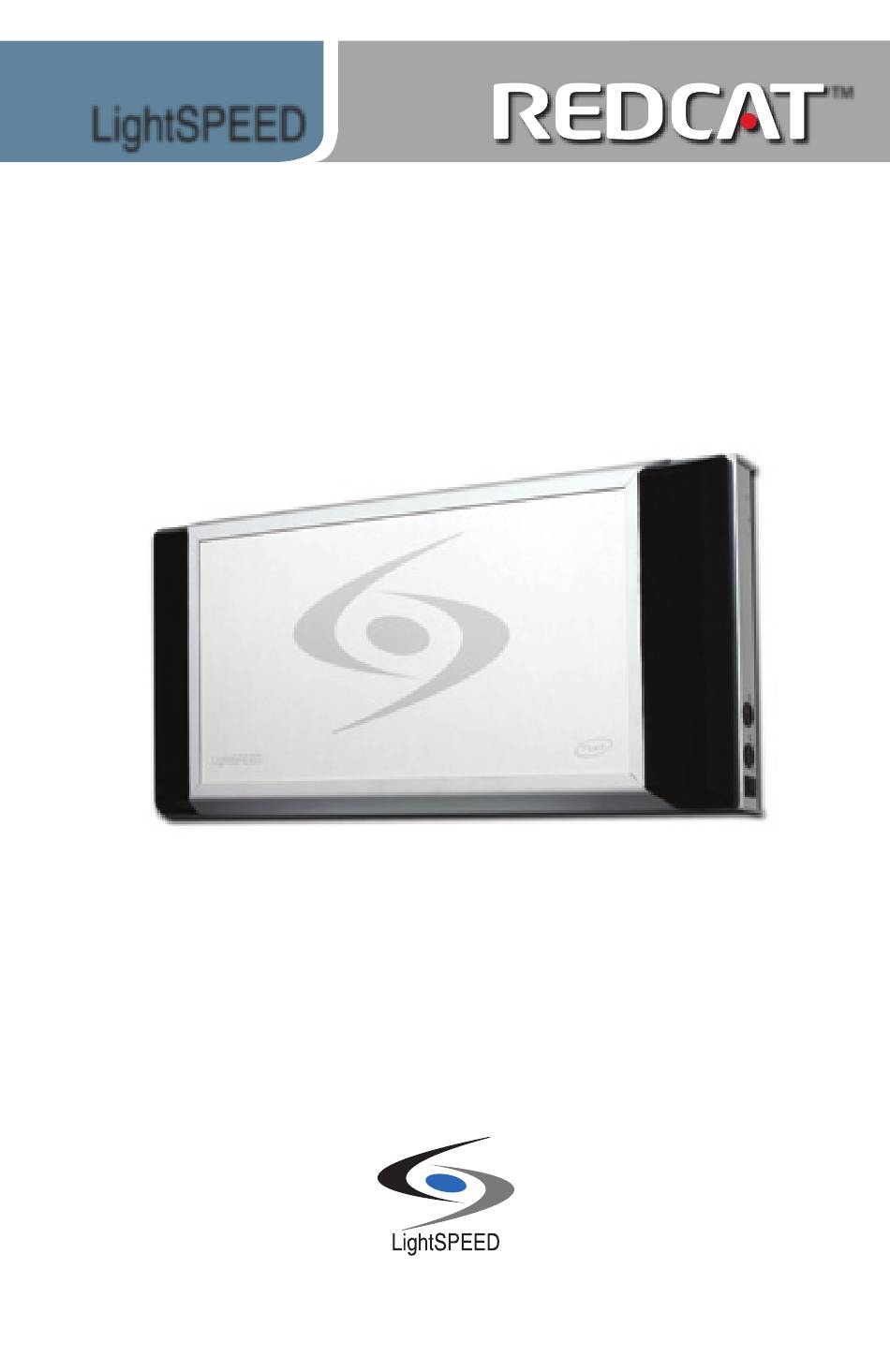

- Page 1 LightSPEED Classroom Amplification System U s e r M a n u a l...
- Page 2 (servicing) instructions in the literature accom- the inside of this LightSPEED product. panying the appliance. This 0. Damage Requiring Service—...
-
Page 3: Daily Use Instructions
R E D C A T U s e r M a n u a l DAILY USE INSTRUCTIONS TURN ON THE REDCAT the POWER switch on the side of the REDCAT Flip CH A to the ON position, the LED will glow. -
Page 4: Table Of Contents
System Components Setting up the REDCAT Unpacking Your System Determine Set-up Method Selecting a Location for the REDCAT (Tabletop Setup) Selecting a Location for the REDCAT (Wall Setup) Side Panel Controls Rear and Bottom Panel Controls LightMic Controls and Connections... -
Page 5: Redcat Classroom Amplification System
(Optional) HM-70 LightMic Handheld Microphone Transmitter Congratulations on your purchase The REDCAT is a two-channel receiver of the REDCAT™ Classroom Amplifica- amplifier that allows the use of up to tion System! This simple, yet power- two microphones simultaneously and ful technology provides crystal-clear... -
Page 6: System Components
R E D C A T U s e r M a n u a l SYSTEM COMPONENTS LightSPEED REDCAT™ Infrared Receiver/Amplifier w/Table Stand Wall Charger Power Supply LT-71 LightMic™ Transmitter LT-71 Optional HM-70 Handheld Microphone Optional Wall Bracket Helpful Keep ALL packaging materials. -
Page 7: Setting Up The Redcat
R E D C A T U s e r M a n u a l SETTING UP THE REDCAT UNPACKING YOUR SYSTEM DETERMINE SET-UP METHOD The REDCAT is shipped with a table Ensure that you have received all of the components of your system. stand connected and ready for use. A wall bracket is also included. -
Page 8: Selecting A Location For The Redcat (Wall Setup)
CAT. Make sure to route the power Wall Bracket cord down the wall, behind the REDCAT so that it can be plugged into the nearby electrical outlet. • Secure the RECAT to the bracket 2. Hang it on the wall using the two screws provided. -
Page 9: Side Panel Controls
CH B POWER 1. POWER Switch/POWER Indicator: This switch is used to turn the REDCAT ON (switch up), or OFF (switch down). When the POWER switch is in the ON position, the POWER light will glow red. Controls the volume 2. -
Page 10: Rear And Bottom Panel Controls
2. Walk around room (near speakers) and listen for squealing or feedback. 3. Lower the 2K5 and/or 4K sliders if a high-pitched squealing is present. 4. Lower the 400 or 700 sliders if a low-pitched ring is present. 5. Reduce volume is feedback is still present. REDCAT User Manual | 6... -
Page 11: Lightmic Controls And Connections
Power/Charge LED Indicator: light glows blue when the LightMic is powered ON, and red when charging. External Microphone Input (MIC): Use the 3.5 mm MIC jack for the optional TK-250 headset microphone (part# MC-TK250LTM). 7 | REDCAT User Manual... -
Page 12: System Operation: Turning The System On
R E D C A T U s e r M a n u a l SYSTEM OPERATION TURNING THE SYSTEM ON 1. Turn the REDCAT on. The LED on the power switch will glow. CH A 2. Slip the LT-71 LightMic with... -
Page 13: Charging The Lightmic
(8–10 hrs.) to obtain a full charge. Helpful Hint Do not attempt to charge alkaline batteries. They can overheat and expand, creating a significant hazard and damaging the LightMic. (This is not covered by the warranty.) 9 | REDCAT User Manual... -
Page 14: Using The Lightmic To Amplify External Audio Equipment
2. Plug the LightMic labeled “AUX” using a 3.5 mm patch cable. the volume of the audio source to achieve desired loudness. 3. Adjust If more volume is needed, adjust the volume of the REDCAT. REDCAT User Manual | 10... -
Page 15: Direct Input From External Audio Equipment
R E D C A T U s e r M a n u a l DIRECT INPUT FROM EXTERNAL AUDIO EQUIPMENT Below are instructions on how to connect an external audio device like a TV, VCR, DVD, MP3 or computer directly into the REDCAT. AUX OUT AUX IN the aux in volume adjust control on the bottom of the 1. -
Page 16: Output To Personal Fm Transmitter
R E D C A T U s e r M a n u a l OUTPUT TO PERSONAL FM TRANSMITTER the AUX OUT volume adjust control on the bottom of the REDCAT all 1. Turn the way down (fully counterclockwise). -
Page 17: Operating The Optional Hm-70 Handheld Mic
R E D C A T U s e r M a n u a l OPERATING THE OPTIONAL HM-70 HANDHELD MIC LightSPEED 13 | REDCAT User Manual... -
Page 18: Charging The Hm-70 Handheld Mic
R E D C A T U s e r M a n u a l REDCAT User Manual | 14... -
Page 19: Tips On Classroom Amplification/Warranty Statement
5. Warranty does not extend to finish, appearance items, or malfunctions due to abuse or operation other than specified conditions, nor does it extend to incidental or consequential damages. Repair by other than LightSPEED or its authorized service agencies will void this guarantee. Information on authorized service agencies is available from LightSPEED Technologies, Inc. -
Page 20: Troubleshooting Guide
If you review these instructions and still have questions, write down the serial number and model number of your system and call LightSPEED Technical Services at 800.732.8999, 6:30 a.m. – 5 p.m. PST. REDCAT Users Manual | 16... -
Page 21: System Specification
Built-in Microphone Uni-directional Electret Battery Power (1-year warranty) 2 AA NiMH Rechargeable Inputs Mic Level 3.5 mm Line Level 3.5 mm Dimensions (W x D x H) 1.375” x .75” x 4.625” Weight 3.7 oz 17 | REDCAT User Manual... -
Page 22: Individual Components And Optional Accessories
LT-71 CA-RCA6 6’ dual RCA audio cable CA-RCA24 24’ dual RCA audio cable CA-MMC3535 3.5 mm mono to 3.5 mm mono audio cable CA-MMC2435 Audio patch cable (2.5 mm mono to 3.5 mm mono) REDCAT User Manual | 18... -
Page 23: User Notes
USER NOTES Record your system serial numbers and purchase information. This is helpful when ordering additional components, accessories, and/or warranty service. Components Serial Number REDCAT Microphones Charger Purchase Information Your School/Organization District Purchase Date Invoices 19 | REDCAT User Manual... -
Page 24: User Notes
R E D C A T U s e r M a n u a l USER NOTES REDCAT User Manual | 20... -
Page 25: User Notes
R E D C A T U s e r M a n u a l USER NOTES 21 | REDCAT User Manual... - Page 26 L i g h t S P E E D Tec h n ol o g i e s, I nc. 1 1 5 0 9 S W H e rm an R d Tu a la t i n , O R 97 06 2 8 0 0 .
