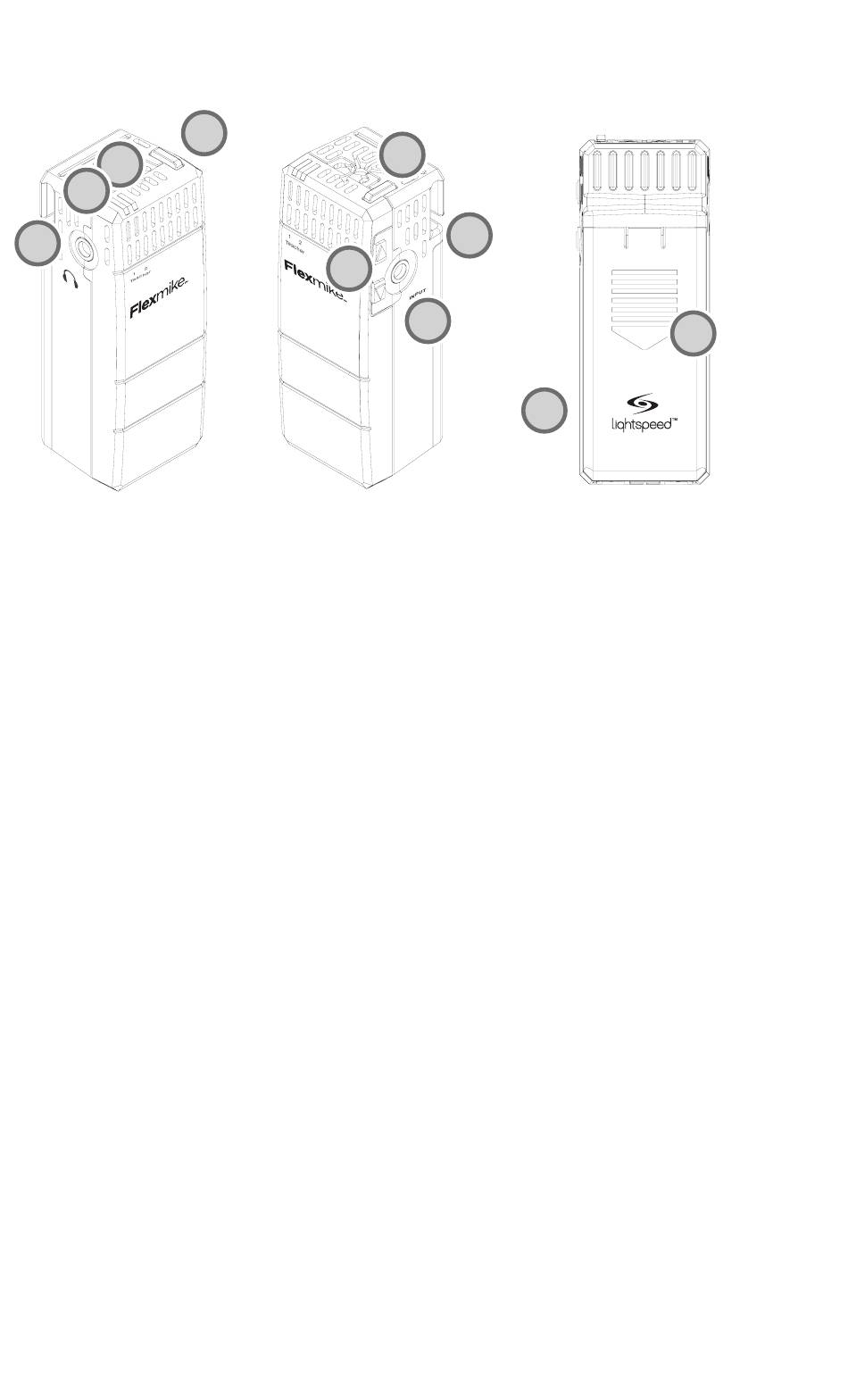

FLEXMIKE CONTROLS AND CONNECTIONS

3
2
4
1. POWER/MUTE SWITCH: press and hold to power on, press to
mute, press and hold to power off.
2. MIC 1 STATUS: lighted to indicate microphone is registered as
MIC 1
• Blue: solid = normal operation; flashing = linking in process
• Red: solid = muted; flashing = muted while linking in process
3. MIC 2 STATUS: lighted to indicate microphone is registered as
MIC 2 (same behavior as MIC 1 status light above)
4. *EARBUD CONNECTION: connect the 3.5mm earbud jack for
monitoring (*for use with Flexcat Pods only)
5. CHARGING/LOW BATTERY INDICATOR: lights red when
charging, green when fully charged. When in operation, turns red
to indicate low battery.
6. MICROPHONE VOLUME UP/DOWN
7. AUDIO INPUT: connect audio source to send to Redcat Access
8. LANYARD INTERFACE: insert the lanyard into this hook to wear
the Flexmike.
9. BATTERY DOOR: remove the battery door to replace the
rechargeable battery pack
10. REGISTRATION: (inside battery compartment - not shown) only
used when adding or replacing Flexmike.
