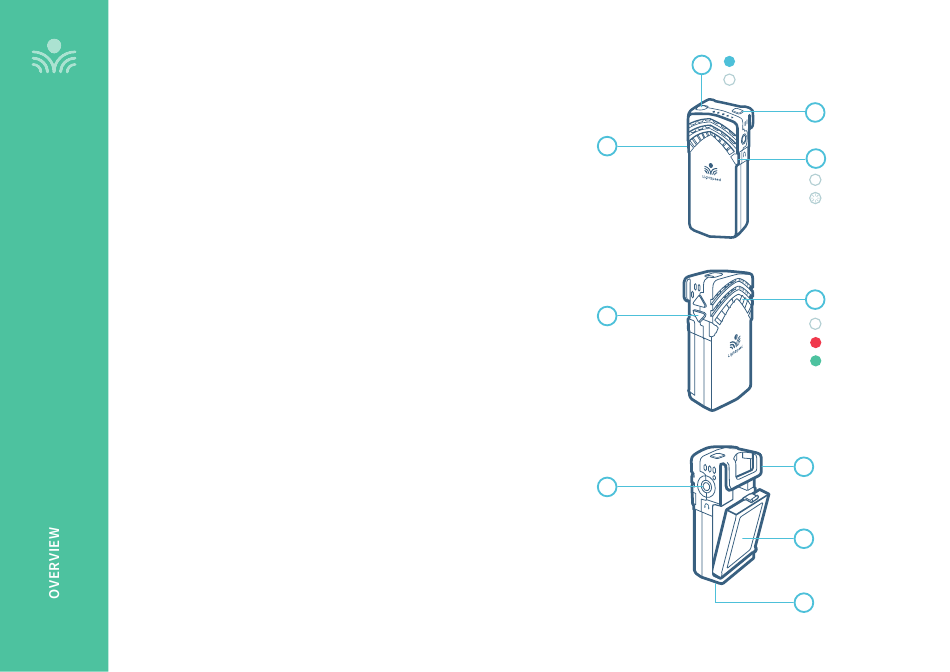

Flexmike Controls and Connections

1. POWER/MUTE SWITCH: Press and hold to power on, press to mute, press
and hold to power off.
Blue light: Talk
White light: Mute
2. IR TRANSMITTER: For pairing to base unit.
3. MIC 1 STATUS: lighted to indicate microphone is registered as Mic 1
White: solid = Normal operation
White: flashing = Linking in progress
4. MIC 2 STATUS: When using a second microphone, this LED is lighted to
indicate microphone is registered as Mic 2
White: solid = Normal operation
White: flashing = Linking in progress
5. MICROPHONE VOLUME UP/DOWN
6. POWER STATUS LIGHT
Red light: In operation, turns red to indicate low battery.
White light: Normal operation
When charging in Cradle Charger:
Red light: Charging
Green light: Charging complete
EARBUD/MIC CONNECTION: Connect the earbud for monitoring for use
7.
with Pods only, also for use with optional EMA (earset) and LMA (lapel)
microphones.
8. LANYARD INTERFACE: Insert the lanyard into this hook to wear the Flexmike.
9. BATTERY: Remove the battery to replace the rechargeable battery pack.
10. USB INPUT: Connect audio source to send to Topcat. USB input can also be
used for charging.
9
1 TALK
MUTE
3
RIGHT SIDE
5
LEFT SIDE
7
BACK
2
4
NORMAL OPERATION
LINKING IN PROGRESS
6
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
8
9
10
