Lightspeed Topcat Quick Start Manual

Quick Start Guide
Instructional Audio System
FIRST, ENSURE THE SYSTEM IS POWERED ON

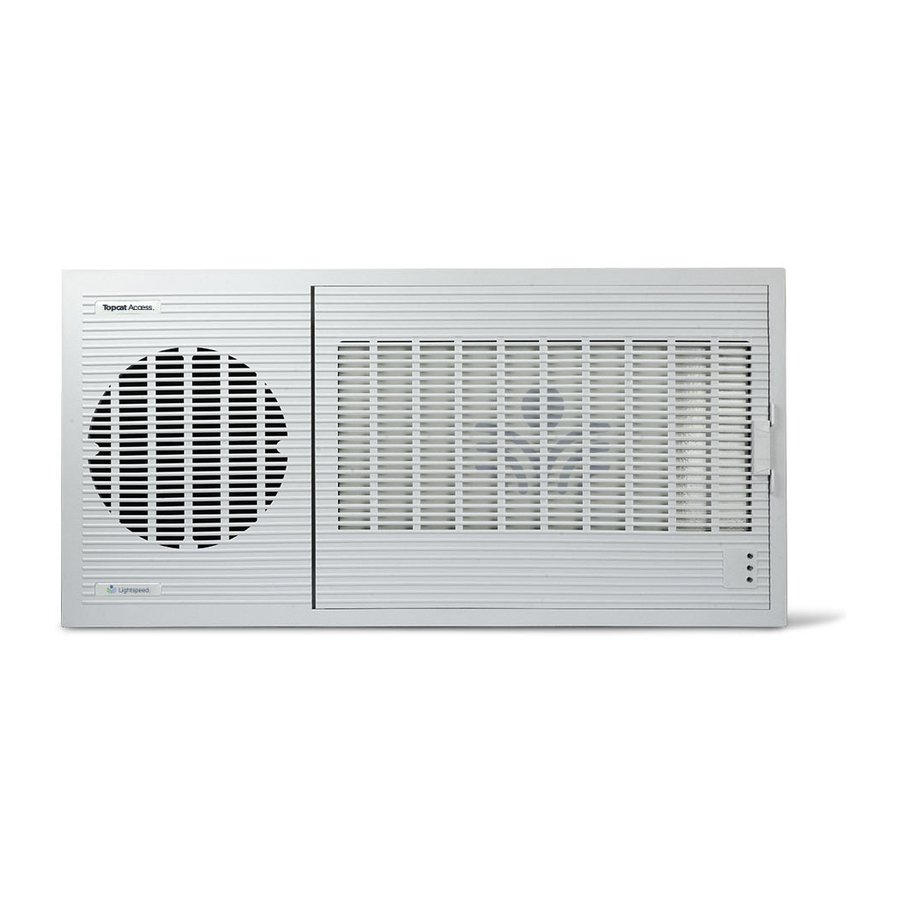

When powered on, the white LED on the Topcat speaker panel will glow.
USING THE FLEXMIKE
Remove microphone
from charger. Press
the mute button to
unmute, hold near
your mouth and
begin speaking.
ALIGN WITH
COLLARBONE
USING THE SHAREMIKE
Remove microphone
from charger and press
the mute button to
begin speaking.
PAIRING MICROPHONES TO TOPCAT
Your system is shipped with microphones and base units pre-paired for quick and easy use.
If you ever need to pair new components, follow this pairing process:
1
POINT MICROPHONES AT TOPCAT
From a powered off state, point the IR
transmitter lens toward the base unit
(for Sharemike, the transmitter lens is
located on the back of the microphone).
2
PRESS AND HOLD POWER BUTTON
Press and hold the power button for
5 seconds until the Mic 1 and Mic 2 lights
start flashing, then release the button
and let the pairing process finish.
POWER
IR TRANSMITTER
MIC 1
MIC 2
POWER/MUTE BUTTON
ADJUST
VOLUME
POWER/MUTE
BUTTON
ADJUST
VOLUME
FLEXMIKE
SHAREMIKE
MIC 1 MIC 2
POWER
BACK FRONT
CHARGE MICROPHONES NIGHTLY
Place the microphones
TALK (BLUE)
into the cradle charger. The
MUTE (WHITE)
power status light will glow
red when it is charging.
When charging is complete,
the power status light will
glow green.
It takes about 5-6 hours to
fully charge the microphone
battery.
TALK (BLUE)
MUTE (WHITE)
3
STATUS LIGHT
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
POWER STATUS
LIGHT
STATUS LIGHT
CONFIRM STATUS
The status light on Topcat will light
up indicating the pairing process is
complete. The Mic 1 or Mic 2 light on
the microphone will stay illuminated.
