Commissioning

4 Commissioning

4.1 Configure the DeviceNet Network

All DeviceNet stations connected to the same bus network
must have a unique station address.
®
Before a VLT 5000 can be replaced with an FC 302 with
MCA 194, only the station address and baud rate needs to
be configured in the FC 302.
The DeviceNet address of the FC 302 can be selected via:
•
Hardware switches
•
Parameter 10-02 MAC ID (default 63)
•
Class code 0X03, Instance 1, Attribute 1
NOTICE
After installing DeviceNet Converter MCA 194, check that
8-02 Control Source is set to [3] Option A.
4.1.1 Setting the DeviceNet Address using
the Hardware Switches
Read the hardware switches during power-up. When
switches are changed, perform a power down-up
immediately to activate the changes.
NOTICE
The address change comes into effect at the next power-
up, and can be read in 10-02 MAC ID.
Switch 1 2
Address +32 +16
Example:
1 0 0
35 1 0
52 1 1
Table 4.1 Hardware Switches
4.1.2 Setting the DeviceNet Address via
10-02 MAC ID
Setting the address via parameter 10-02 MAC ID or the
DeviceNet Class code 0X03, Instance 1, Attribute 1, is
possible, if the hardware switches are all set in the "On"
position. The new address becomes active at the next
power-up.
MG37E102
Operating Instructions
®
VLT 5000
3 4 5 6 7
+8 +4 +2 +1 -
0 0 0 1 -
0 0 1 1 -
0 1 0 0 -
Danfoss A/S © Rev. 2014-03-06 All rights reserved.
Using the hardware switches, select an address range from
0 to 63 (factory setting 63) according to Illustration 4.1: ON
= 1, OFF = 0
MCA 194
S600
DeviceNet
MS
Converter
NS
8

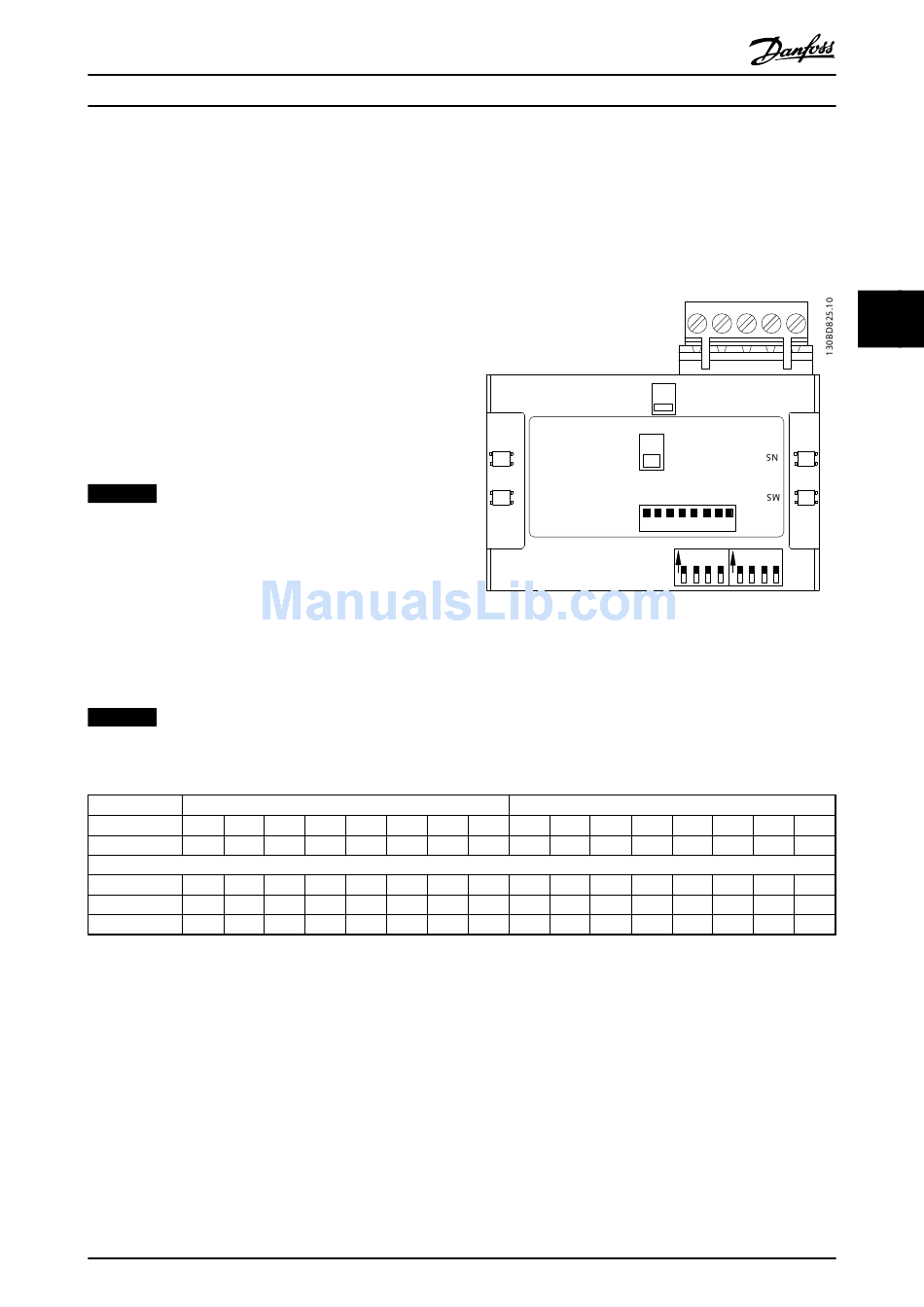

Illustration 4.1 DeviceNet Converter Option A
FC 302
8 8 7 6 5
- - - +32 +16
- - - 0 0
- - - 1 0
- - - 1 1
ON
Option A
ON
130B5601
OFF
S300
ON
7 6 5 4 3 2 1
OFF
ON ON
4 3 2 1
+8 +4 +2 +1
0 0 0 1
0 0 1 1
0 1 0 0
11
4 4
