5.1.37 Solarize

Each of the Solarize effects remaps colors to a narrow value range and inverts the color below a set threshold using different
algorithms. Solarize effects can create strong highlights.
Modifier 1: Increases red color component from 0 = no adjustment to 255 (100%) = maximum red saturation. Red color values
below the threshold are converted to cyan.
Modifier 2: Increases blue color component from 0 = no adjustment to 255 (100%) = maximum blue saturation. Blue color values
below the threshold are converted to magenta.
Modifier 3: Increases green color component from 0 = no adjustment to 255 (100%) = maximum green saturation. Green color
values below the threshold are converted to yellow.

5.1.37.1 Solarize 1

Effect Mode parameter DMX value = 9

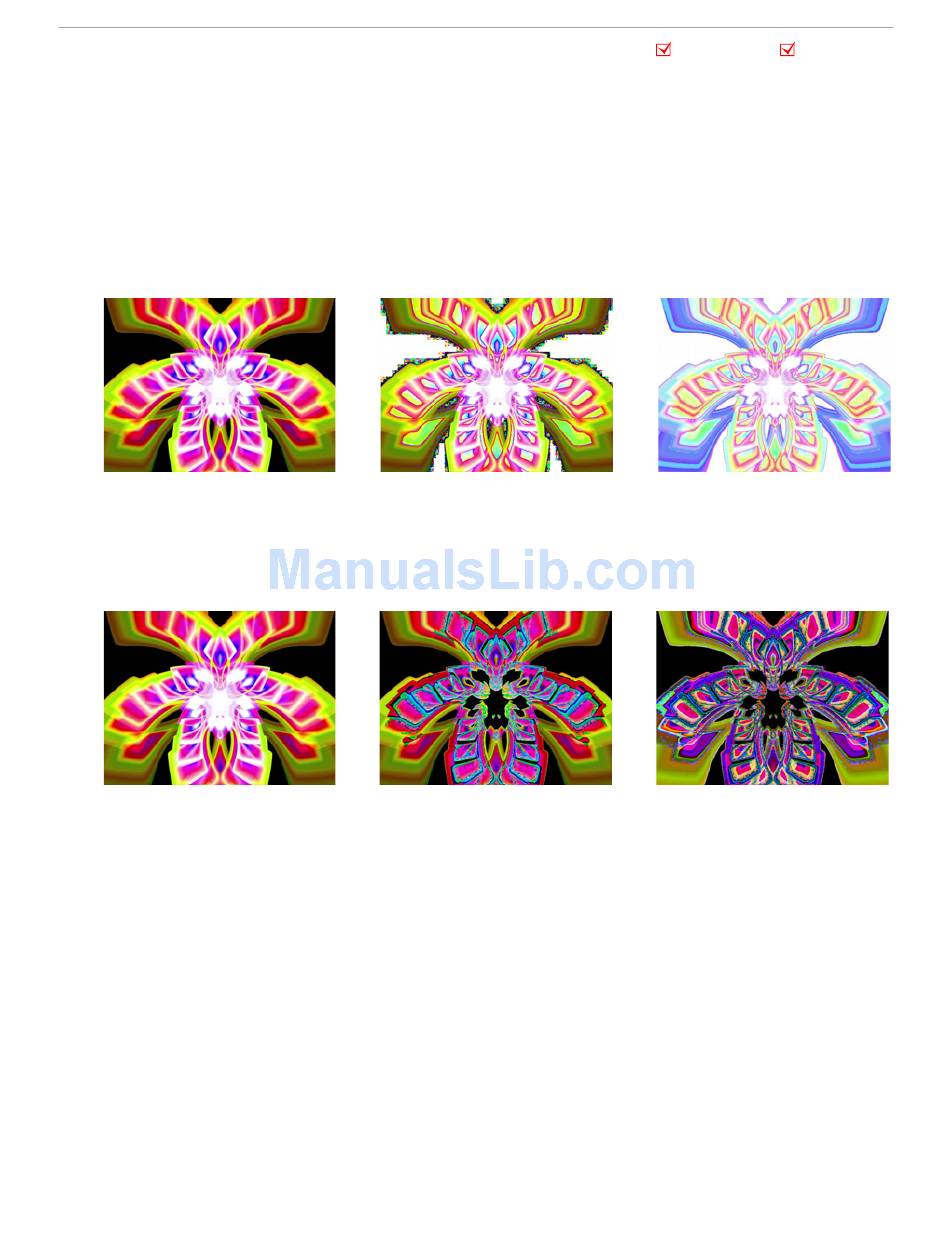

Original Content

5.1.37.2 Solarize 2

Effect Mode parameter DMX value = 10
Original Content

5.1.37.3 Solarize 3

Effect Mode parameter DMX value = 11

5.1.37.4 Solarize 4

Effect Mode parameter DMX value = 12
DML-1200 w/Axon Embedded Graphic Engine 24/12/2010 _____________________________________________________________________________ 70
Original Content with Effect Mode = 9
Original Content with Effect Mode = 10
Object Effect Global Effect
Modifier 1 parameter DMX = 170
Modifier 2 parameter DMX = 137
Modifier 3 parameter DMX = 232
Modifier 1 parameter DMX = 212
Modifier 2 parameter DMX = 255
Modifier 3 parameter DMX = 208
