Edge Fade Color; Glow; Glow Color Cycle - High End Systems DML-1200 User Manual

Effect Mode Options Descriptions

5.1.16 Edge Fade Color

Effect Mode parameter DMX value = 129
This effect applies color to a selected Edge Fade parameter, (see
Modifier 1: Increases red color component from 0 = no adjustment to 255 (100%) = maximum red saturation.
Modifier 2: Increases blue color component from 0 = no adjustment to 255 (100%) = maximum blue saturation.
Modifier 3: Increases green color component from 0 = no adjustment to 255 (100%) = maximum green saturation.
Original Content

5.1.17 Glow

Effect Mode parameter DMX value = 73
Glow colorizes and creates a glow on the 3-D object separate from the media texture on it. You can apply this effect to any 3-D
object no matter which media file texture is applied to it. This parameter provides an option to view a 3-D object without
displaying the associated texture.
Modifier 1: Increases red color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum red saturation.
Modifier 2: Increases blue color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum blue saturation.
Modifier 3: Increases green color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum green saturation.
Original Content

5.1.18 Glow Color Cycle

Effect Mode parameter DMX value = 74
Glow colorizes and creates a glow on the 3-D object separate from the media texture on it. You can apply this effect to any 3-D
object no matter which media file texture is applied to it. This parameter provides an option to view a 3-D object without an
associated texture.
Modifier 1: Defines the red color component speed. A DMX value of 128 (50%) = default cycle speed. DMX Values above the
midpoint increase cycle speed in a forward direction to 255 (100%) = fastest change speed. DMX values below the midpoint
increase cycle speed in a backward direction to 0 = fastest change speed.
Modifier 2: Defines the green color component speed in the same way as Modifier 1.
Modifier 3: Defines the blue color component speed in the same way as Modifier 1.
______________________________________________________
61

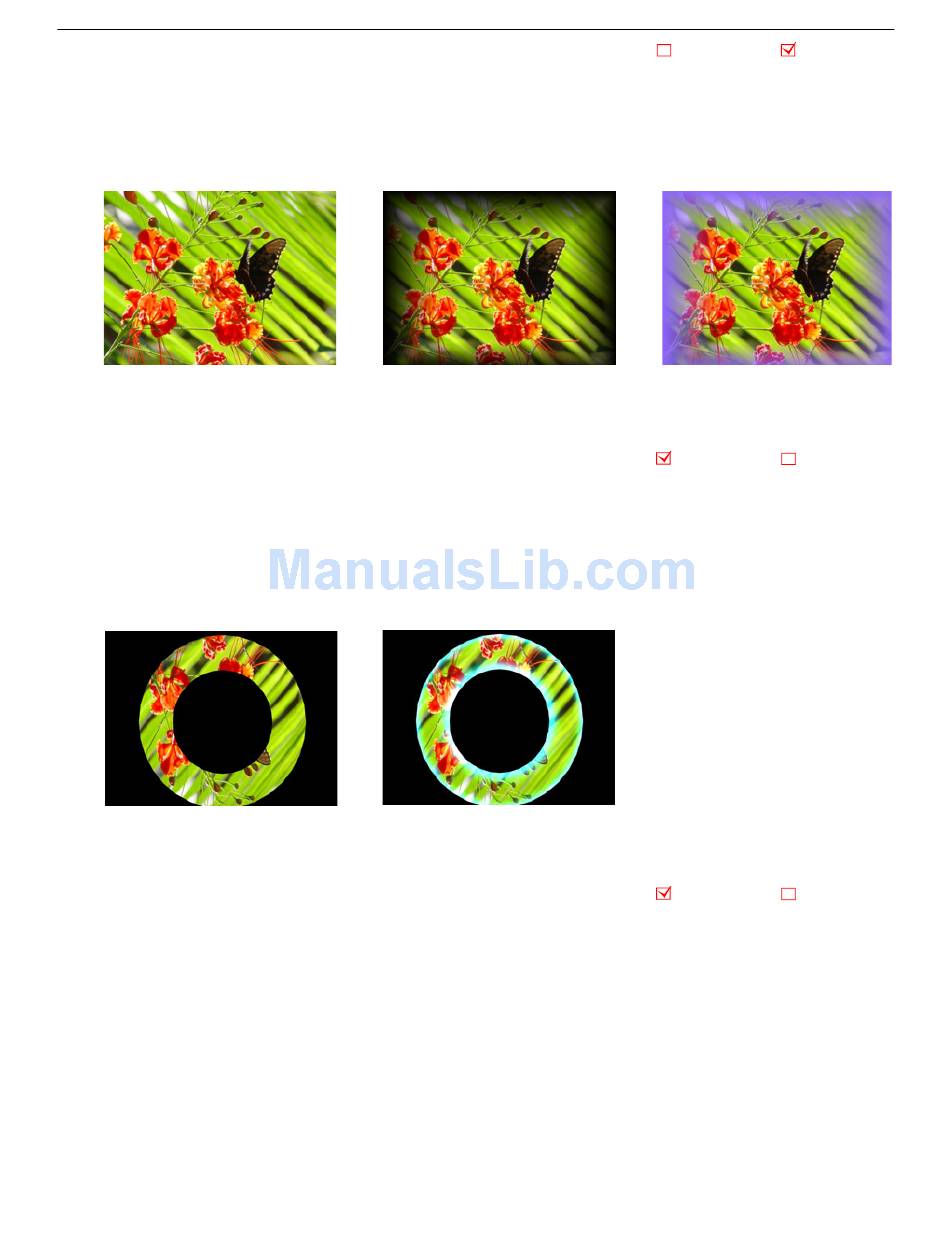

Image Edge Fade
