Appendix F: Conformance Test Guide
EtherNet/IP Host Object (F8h) - Attribute 26 - Enable EtherNet/IP QuickConnect
Enabling QuickConnect will make the duration from power-on to available on the network as
short as possible. QuickConnect will require a change to the default EDS file, and also require
that, for two port modules, ports 1 and 2 labeled externally on the device.

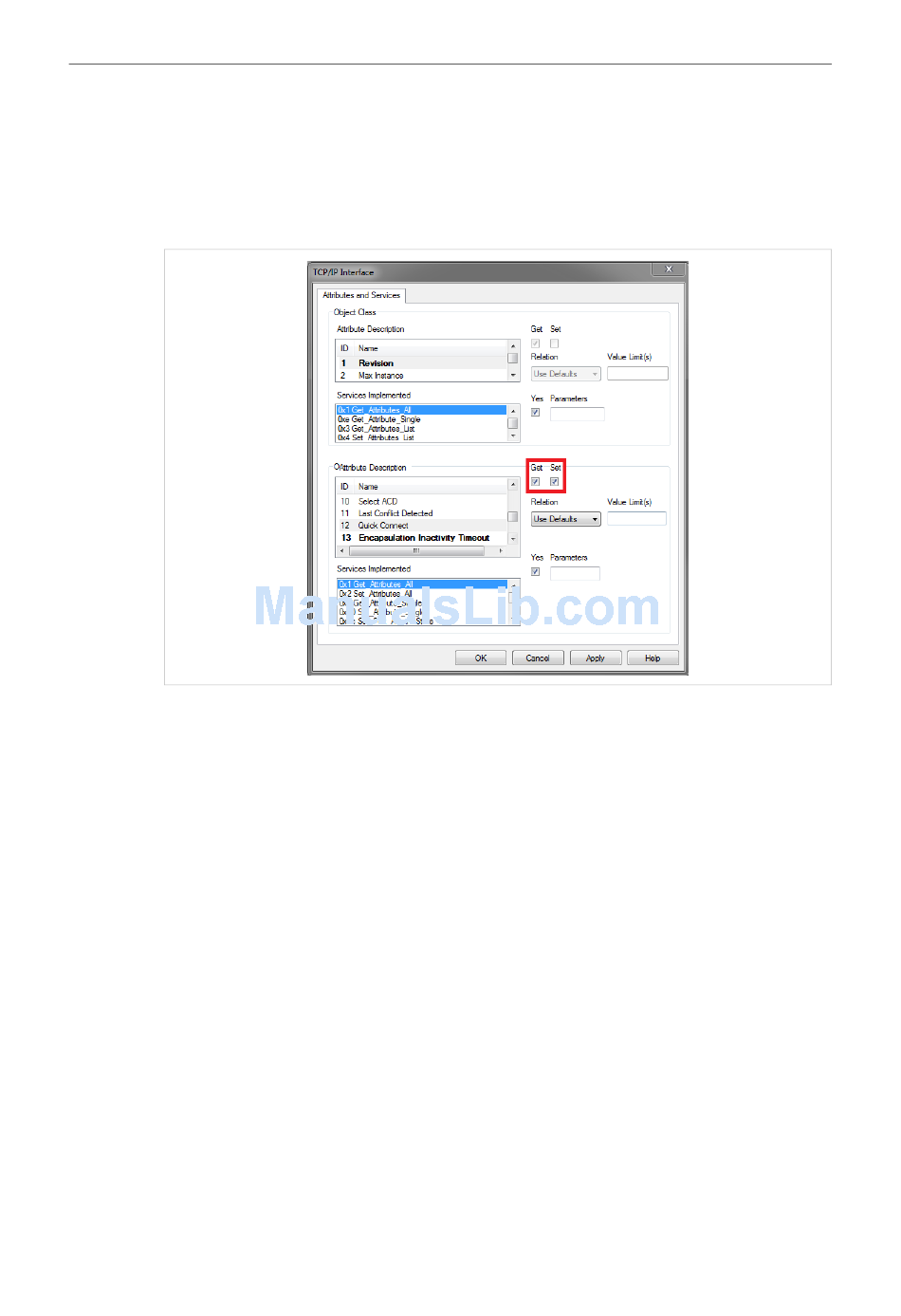

If QuickConnect is enabled, attribute #12 of TCP/IP Interface object needs to be set to Set and
Get access in the STC file. If QuickConnect is disabled Get and Set access must be unchecked.
Fig. 20
EtherNet/IP Host Object (F8h) - Attribute 29 - Ignore Sequence Count Check
Enabling this functionality violates the CIP Network Libraries specifications.
EtherNet/IP Host Object (F8h) - Attribute 30 - ABCC ADI Object Number
The default behavior of the Anybus CompactCom EtherNet/IP family of modules provide access
to Instances of the Application Data Objects through the CIP ADI Object (A2h). It is possible to
change this Object Class number or disable access altogether. It is important to note that A2h is
in the vendor specific range where Vendors are free to implement their own objects. Choosing
an object class number outside the vendor specific range should only be done when the device
provides the functionality specified by the object, and adheres to the organization of attributes
and services set in the CIP Networks Library. The vendor specific range is 64h – C7h and 300h
– 4FFh.
EtherNet/IP Host Object (F8h) - Attribute 31 - Enable DLR
The default behavior of the Anybus CompactCom EtherNet/IP is to have DLR enabled, if for
some reason the DLR is disabled the DLR object must be removed from the list of supported
objects in the STC file.
