Appendix F: Conformance Test Guide
EtherNet/IP Host Object (F8h) - Attribute 17 - Enable Unconnected Routing
Enabling this attribute will allow unconnected routing, and allow access to the CIP Port Object
(F4h). It is possible for originators to use CIP routing to link to other subnets or backplanes
through the Anybus CompactCom. For EtherNet/IP, multiple Port Object Instances can share
the single or dual Physical ports. For each CIP routable port, one instance of the CIP Port Ob-
ject should exists. Enabling this attribute also requires that applications support for Hosts CIP

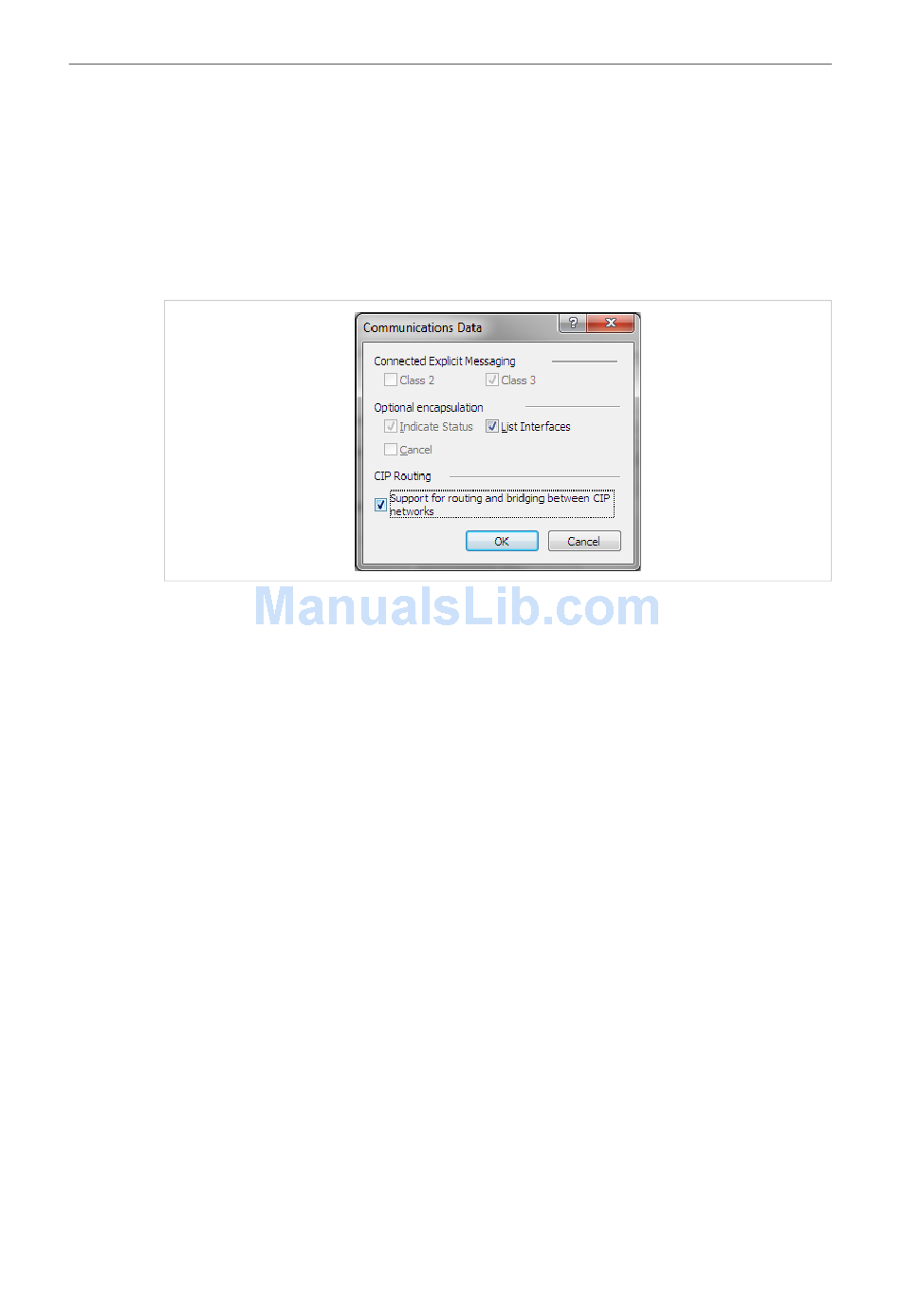

Port Configuration Object (ODh). The Statement of Conformance file can be configured to re-
flect the ability for port forwarding, by selecting the check box in the Communication data sec-
tion, and the port object can be added to the list of implemented objects.
Fig. 19
EtherNet/IP Host Object (F8h) - Attribute 18 - Input-Only Extended Heartbeat
Instance Number
The extended version of the Input-only Heartbeat connection is functionally the same with one
exception. The state of the connection does not affect the state of the module, i.e., a timeout of
this connection will not force the module into the Exception state. This Instance can be used for
a connection point and that connection should be annotated in the Connection Manager. The in-
stance number should appear in the connection path.
EtherNet/IP Host Object (F8h) - Attribute 19 - Listen-Only Extended Heartbeat
Instance Number
The extended version of the Listen-only Heartbeat connection is functionally the same with one
exception. The state of the connection does not affect the state of the module, i.e., a timeout of
this connection will not force the module into the Exception state. This Instance can be used for
a connection point and that connection should be annotated in the Connection Manager. The in-
stance number should appear in the connection path.
EtherNet/IP Host Object (F8h) - Attribute 20 - Interface label port 1
This label is not checked by the CT test software, however if changed please ensure that the
EDS file is updated with the equivalent string.
EtherNet/IP Host Object (F8h) - Attribute 21 - Interface label port 2
This label is not checked by the CT test software, however if changed please ensure that the
EDS file is updated with the equivalent string.
EtherNet/IP Host Object (F8h) - Attribute 22 - Interface label internal port
This label is not checked by the CT test software, however if changed please ensure that the
EDS file is updated with the equivalent string.
