Appendix F: Conformance Test Guide
EtherNet/IP Host Object (F8h) - Attribute #13 - Input-Only Heartbeat Instance
Number
By default this instance number is 3. Changing this value from the default will require users to
modify the Input only connection listed in the Connection Manager portion of the .stc file. The

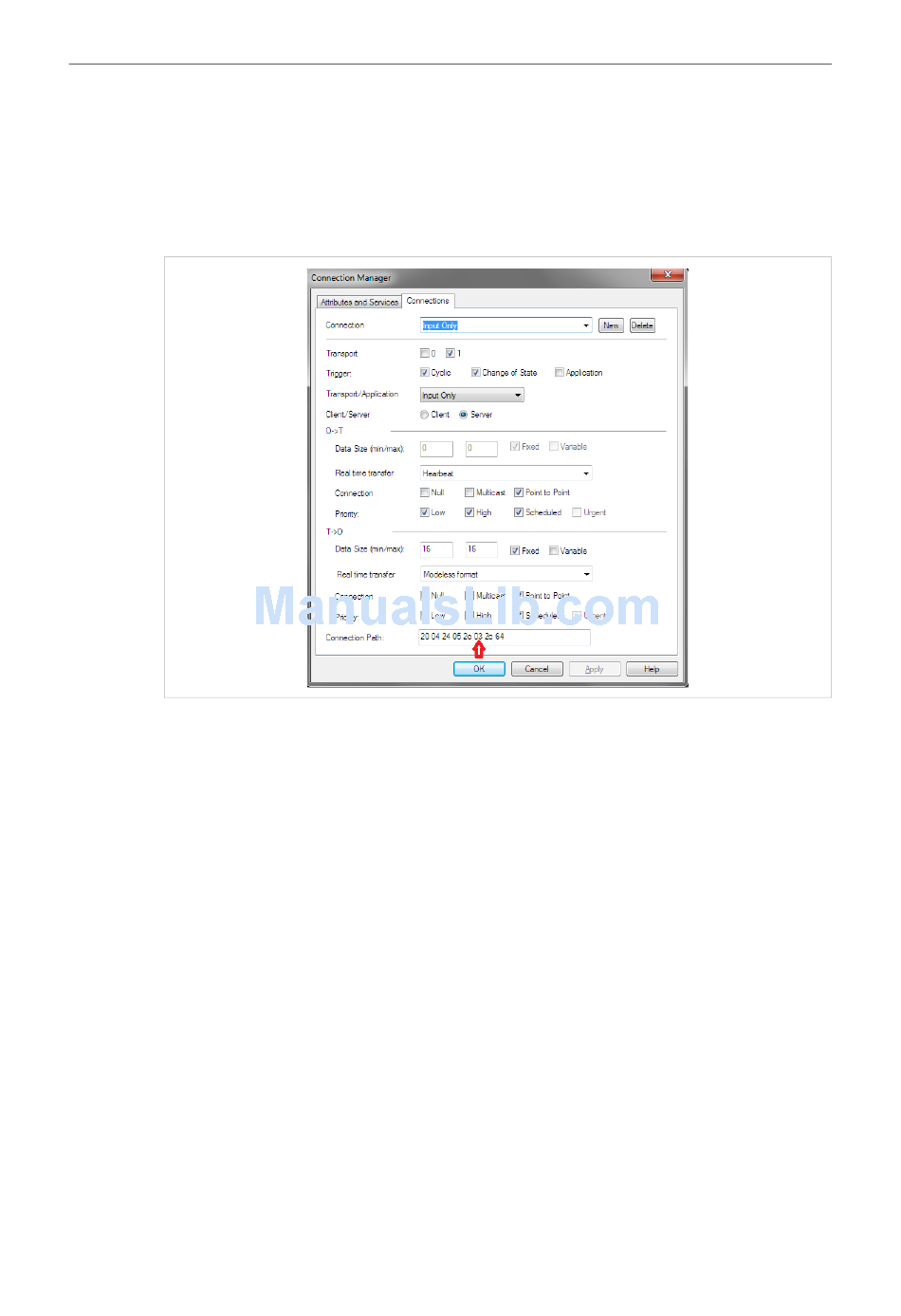

following figure shows that for the input only connection 03 shows up as the 0->T connection
point for the connection path. For an explanation of the configuration path please see The CIP
Networks Library Volume 1 Appendix C.
Fig. 16
