Chapter A
Appendix C — ADP Interface Box

Table A-3 Host 25-pin Connector

Pin Function
1 Chassis
2 Transmit data (RS-232)
3 Receive data (RS-232)
7 Signal ground
8 Output 1 (TTL)
9 +5 VDC
10 Trigger (NPN)
11 Default configuration (NPN)

Table A-4 Trigger 6-pin Connector

Pin Function
1 Trigger
3 + 5 VDC
4 + 12 VDC
5 Power ground
POWER
1
TRIGGER

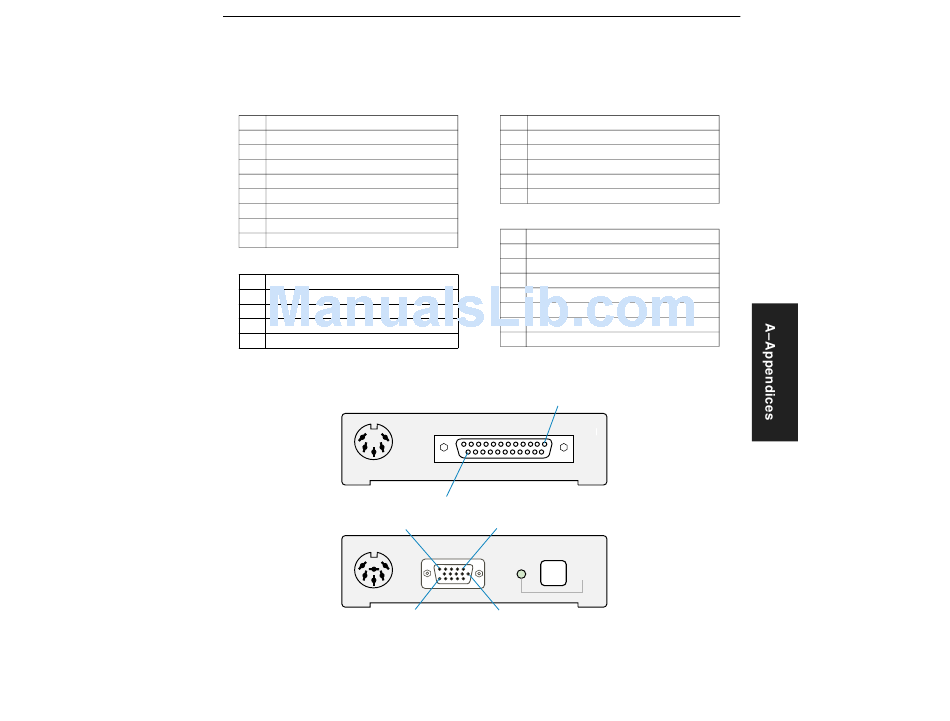

Figure A-2 ADP RS-232 Interface Box

MS-3 Laser Scanner User's Manual

Table A-5 Power 5-pin Connector

Pin
1 Signal ground
2 Chassis ground
3 +5 VDC
4 –12 VDC
5 +12 VDC

Table A-6 Scanner 15-pin Connector

Pin
1 +5 VDC
2 Transmit RS-232 (TTL)
3 Receive RS-232 (TTL)
4 Power/Signal ground
8 Default configuration (NPN)
9 Trigger (NPN)
13 Chassis ground
1
RS-232 (J4)
25
5
ADP-232
PWR
SCANNER
11 10
Appendices
Function
Function
A-5
