Step 1 — Hardware Required
Caution: If using your own power supply, be certain that it is wired correctly and sup-
ply voltage is 5VDC. Incorrect wiring or voltage can cause software or equipment fail-
ures.
If connecting to a host with an ADP Interface Box, you will need the following:
• (1) An MS-3 laser scanner.
• (2) An ADP-232 interface box
P/N 99-510007-01.
• (3) A host computer.
• (4) A null modem configuration
cable, P/N 61-300026-01, DB-
25 plug to DB-9 socket, 6ft.
• (5) A power supply P/N 97-
100002-01 (120V) or P/N 97-
100002-02 (240V).
Optional
• (6) An optional object detec-
tor (P/N 99-440001-03) can
also be connected to the IB-
105.
MS-3 Laser Scanner User's Manual
1-2
1
6
3
5
4

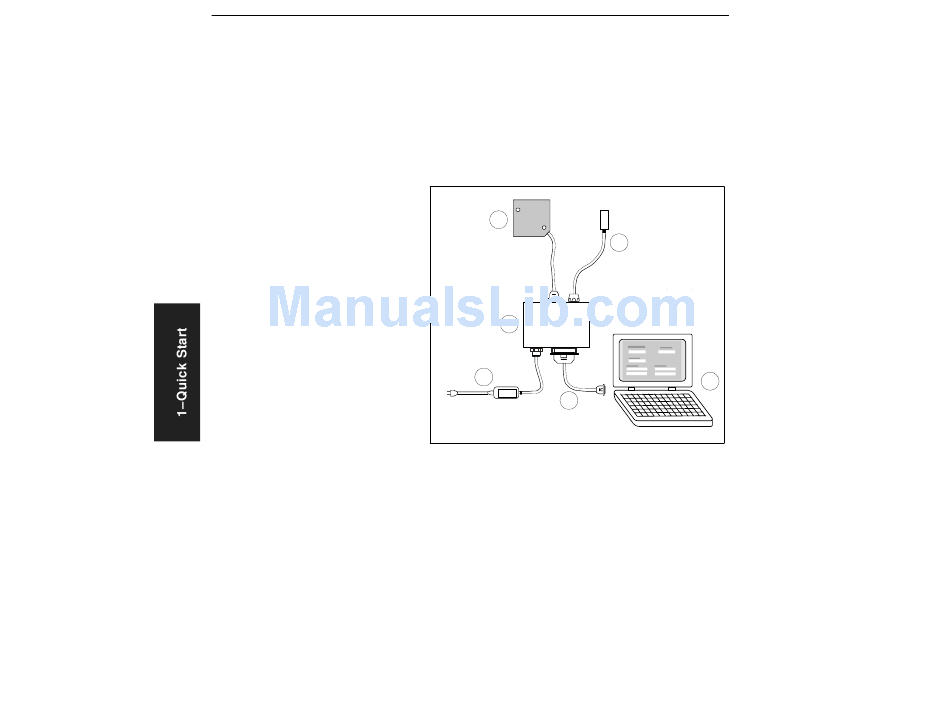

Figure 1-1 Hardware Required

2
