Figure 7-2 Laser Off Position - Microscan MS-3 Manual Book

Laser Framing
Laser Off Position
Definition: Percentage of the full scan arc
that the scan beam moves
through before the laser turns
OFF.
Notes:
The combined values of Laser
On Position and Laser Off
Position cannot exceed 100 per-
cent, the total arc of one scan.
Laser Off Position must always
exceed the value of Laser On
Position for an actual laser scan
to take place.
Serial Cmd: <K700, laser on/off status,laser framing status,laser on
off position,laser power>
Default: 90
Options: 20 to 100
MS-3 Laser Scanner User's Manual
7-8
Laser Off
Position

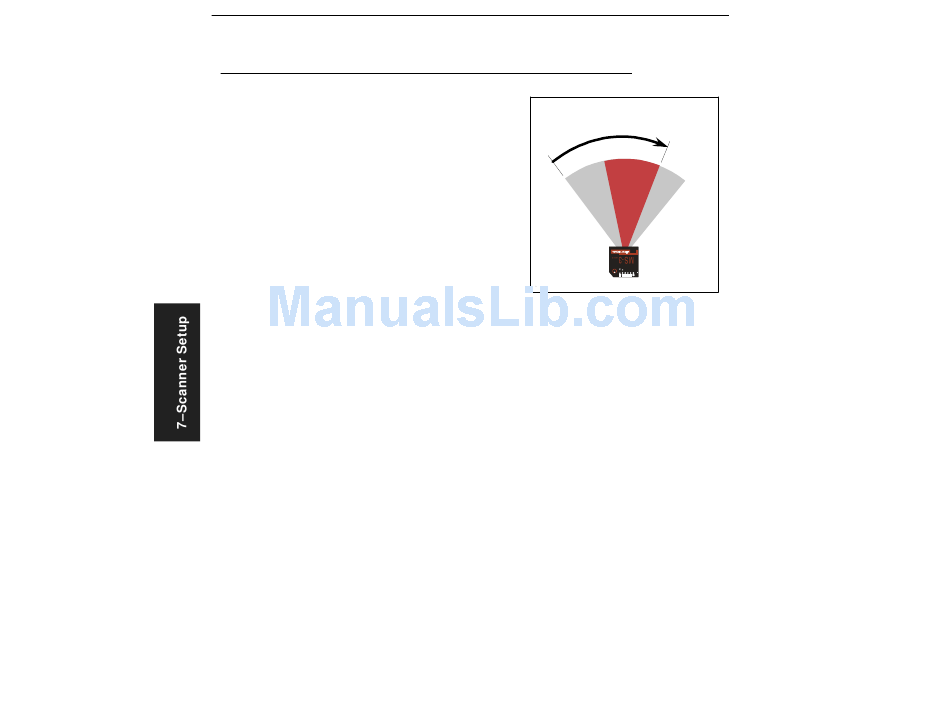

Figure 7-2 Laser Off Position

position,laser
