Appendix B — Electrical Specifications
Maximum Operating Power: __ Watts
Power Input: 5V, ___mV p-p max. ripple, ___ mA @ 24VDC (typical)
Trigger Inputs: 3 to 24V rated (10mA @24VDC)
New Master: 3 to 24V rated (10mA @ 24VDC)
Outputs (1, 2, 3): 5V TTL compatible
Scanner Pin Assignments

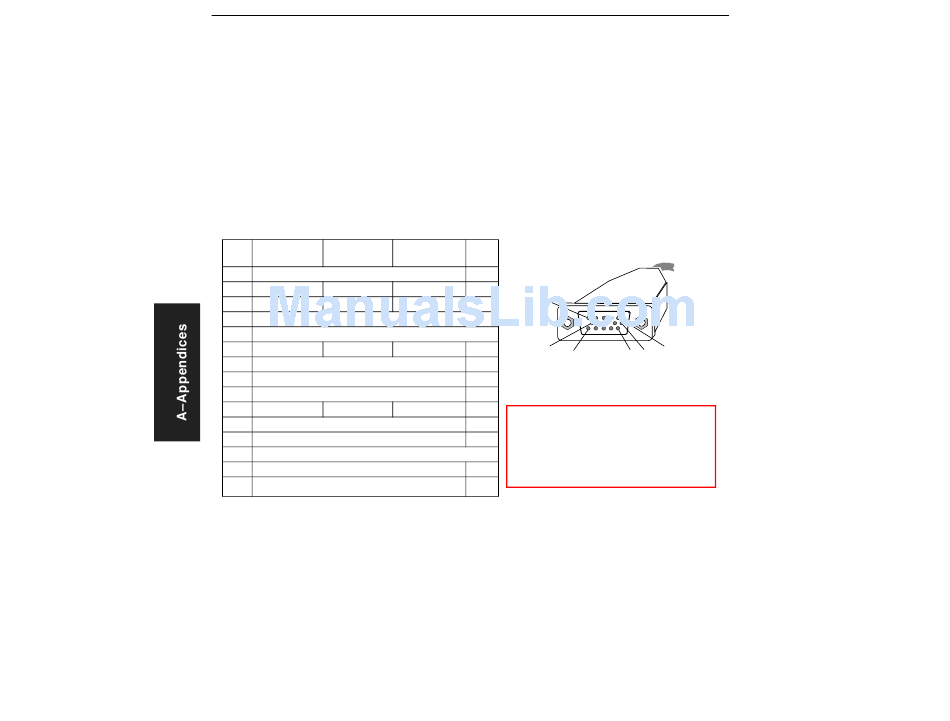

Table A-2 MS-3 Laser Host Connector, 15-pin

Host Host & Aux
Pin
RS232 RS232
1 Power +5VDC
2 TxD TxD
3 RxD RxD
4 Power/Signal ground
5 NC
6 RTS Aux TxD
(5v only)
7 Output 1 TTL
8 Default configuration
9 Trigger (NPN)
10 CTS Aux RxD
(5v only)
11 Output 3 TTL
12 New master pin (NPN)
13 Chassis ground
14 Output 2 TTL
15 NC
MS-3 Laser Scanner User's Manual
A-4
Host In/
RS422/485 Out
In
TxD (–) Out
RxD (–) In
5
TxD (+) Out
10
15
Out
In
In
RxD (+) In
Caution:
Out
• Be sure all cables are connected
In
BEFORE applying power.
• Always power down BEFORE
Out
disconnecting any cables.
Out
1
11 6
