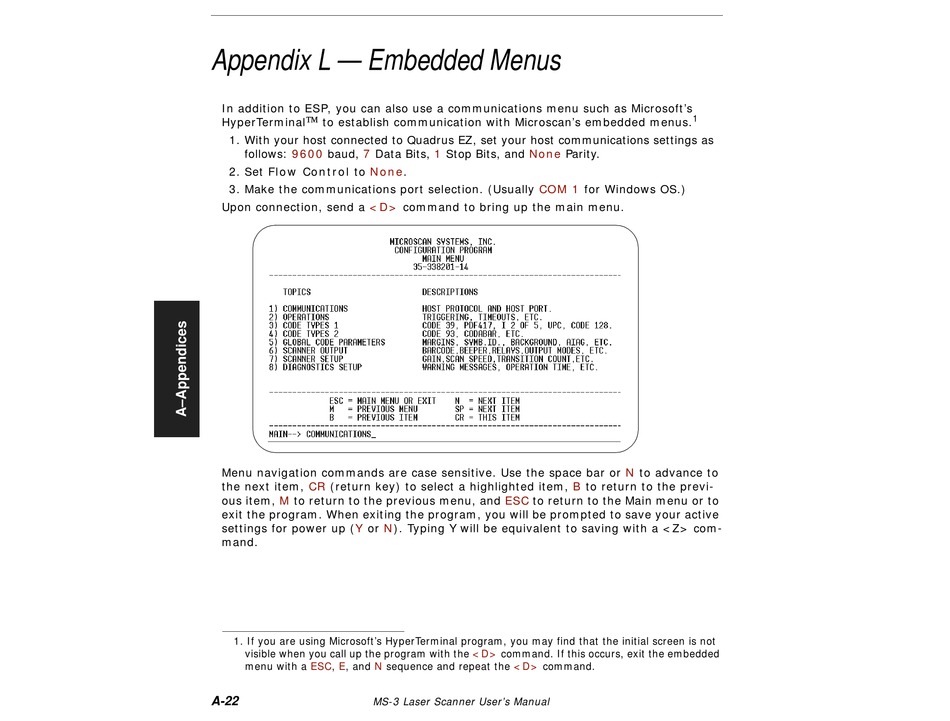

Appendix L — Embedded Menus
In addition to ESP, you can also use a communications menu such as Microsoft's

HyperTerminal to establish communication with Microscan's embedded menus.
1. With your host connected to Quadrus EZ, set your host communications settings as
follows: 9600 baud, 7 Data Bits,
2. Set Flow Control to None.
3. Make the communications port selection. (Usually
Upon connection, send a <D>
Menu navigation commands are case sensitive. Use the space bar or
the next item, CR (return key) to select a highlighted item,
ous item, M to return to the previous menu, and
exit the program. When exiting the program, you will be prompted to save your active
settings for power up (Y or N). Typing Y will be equivalent to saving with a <Z> com-
mand.
1. If you are using Microsoft's HyperTerminal program, you may find that the initial screen is not
visible when you call up the program with the
menu with a ESC, E, and N sequence and repeat the
MS-3 Laser Scanner User's Manual
A-22
1 Stop Bits, and None Parity.
COM 1
command to bring up the main menu.
B
ESC to return to the Main menu or to
<D> command. If this occurs, exit the embedded
<D> command.
1
for Windows OS.)
N to advance to
to return to the previ-
