Electrical Installation

5.10.1 Control Cable Routing

Cable routing
Route the cable inside the drive cabinets as shown in Illustration 5.8. Wire routing for a 2-drive configuration is identical,
except for the number of drive modules used.
5 5
1
2
3
1 Microswitch cable
2 Ferrite core
3 44-pin ribbon cable from MDCIC to drive modules 1 and 2

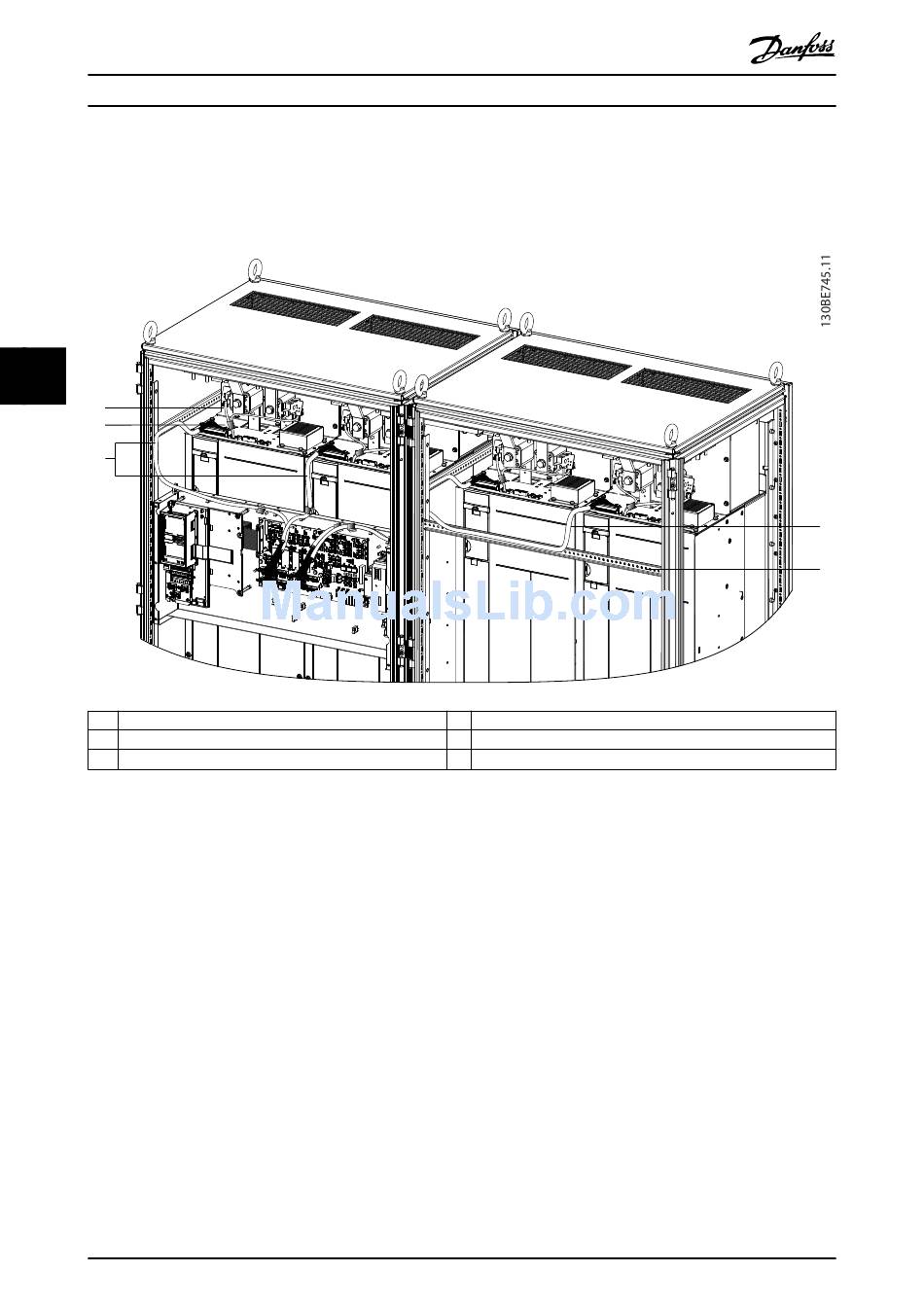

Illustration 5.8 Control Cable Routing for a 4-Drive System
32
®
VLT Parallel Drive Modules
4 44-pin ribbon cable from MDCIC to drive module 4
5 Bracket to support ribbon cable
– –
