Electrical Installation

5.3 Wiring Diagram

230 V A C
50/60 Hz
3-phase
power
input
Regen
terminals
+10 V DC
0 V DC - 10 V DC
0/4-20 mA
0 V DC - 10 V DC
0/4-20 mA

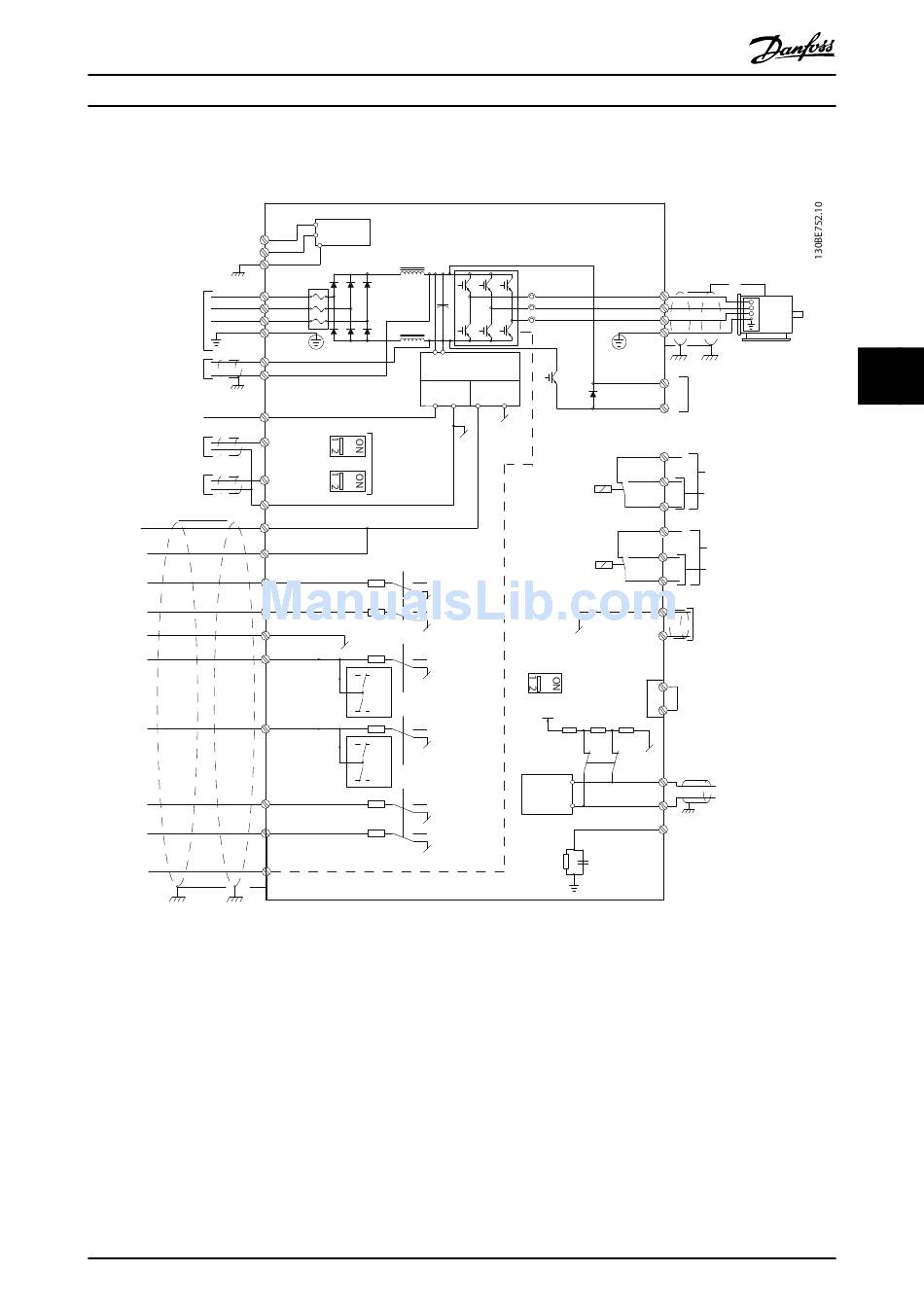

Illustration 5.1 Wiring Diagram
MG37K302
Installation Guide
L
230 V/24 V Power supply
N
91 (L1)
92 (L2)
93 (L3)
95
PE
Switch mode
88 (-)
Power supply
89 (+)
10 V DC
15 mA
50 (+10 V OUT)
+ -
A53 U-I (S201)
53 (A IN)
ON=0–20 mA
A54 U-I (S202)
OFF=0–10 V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
P 5-00
24 V (NPN)
18 (D IN)
0 V (PNP)
24 V (NPN)
19 (D IN)
0 V (PNP)
20 (COM D IN)
24 V (NPN)
27 (D IN/OUT)
0 V (PNP)
24 V
0 V
24 V (NPN)
29
(D IN/OUT)
0 V (PNP)
24 V
0 V
24 V (NPN)
32 (D IN)
0 V (PNP)
24 V (NPN)
33 (D IN)
0 V (PNP)
37 (D IN) - option
