Electrical Installation
5
5

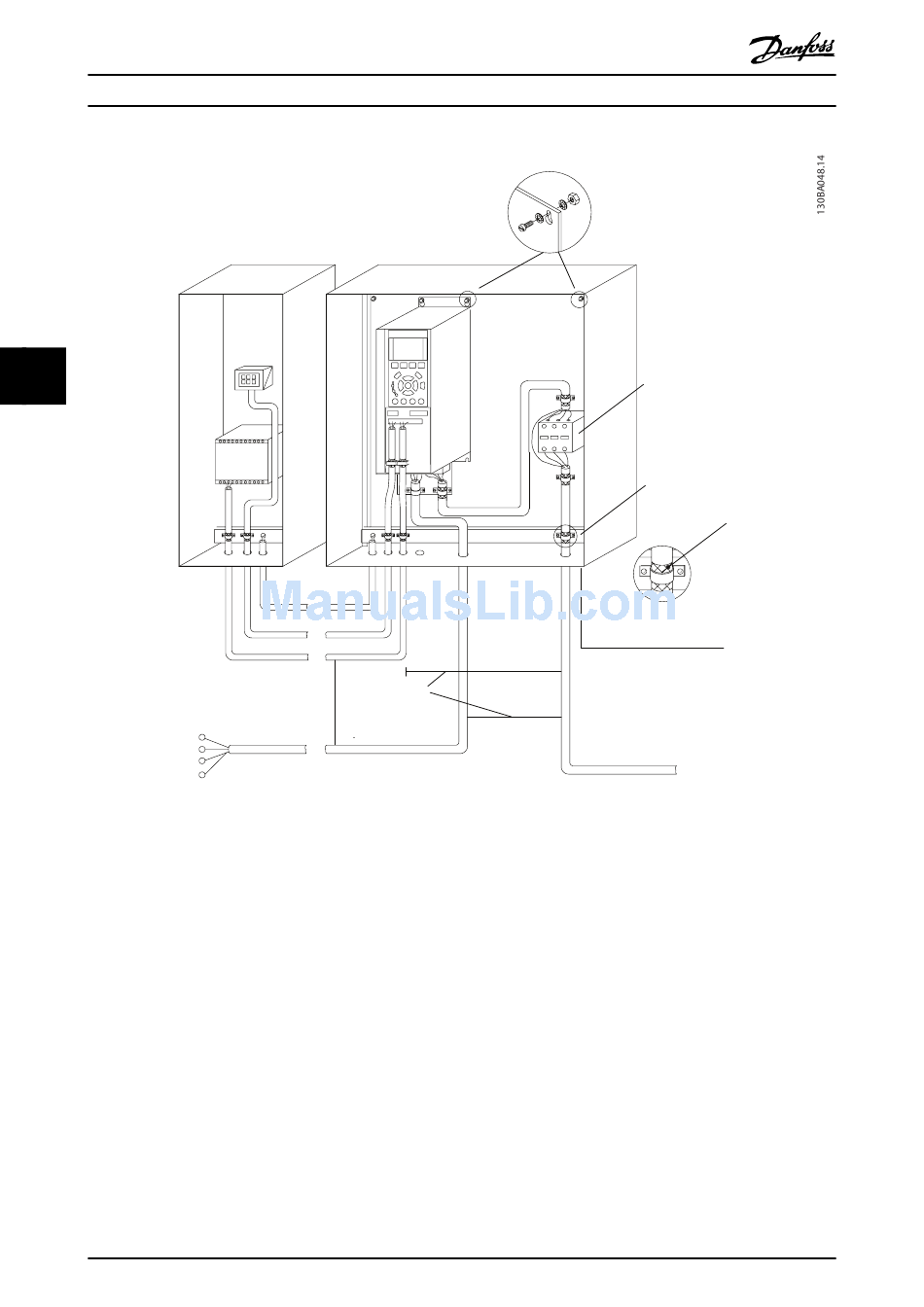

Illustration 5.13 EMC-correct Electrical Installation of a Frequency Converter in Cabinet
38
VLT
PLC, etc.
PLC
Minimum 16 mm
2
equalizing cable
Control cables
Minimum 200 mm
between control
cables, motor cable,
Mains supply
and mains cable
L1
L2
L3
PE
Reinforced protective ground
Danfoss A/S © 08/2017 All rights reserved.
®
Parallel Drive Modules
Panel
Output contactor, etc.
Ground rail
Cable insulation stripped
All cable entries in 1 side of panel
Motor, 3-phases and protective ground
MG37K302
