Parallel drive modules 250–1200 kw
Hide thumbs
Also See for VLT FC 102:
- Installation manual ,
- Programming manual (756 pages) ,
- Design manual (254 pages)
Table of Contents
Advertisement
Appendix
8.3.7 Discharge Resistor Connections
1
8
8
2
1
Mains input bus bars
2
Mains contactor/disconnector auxiliary contacts

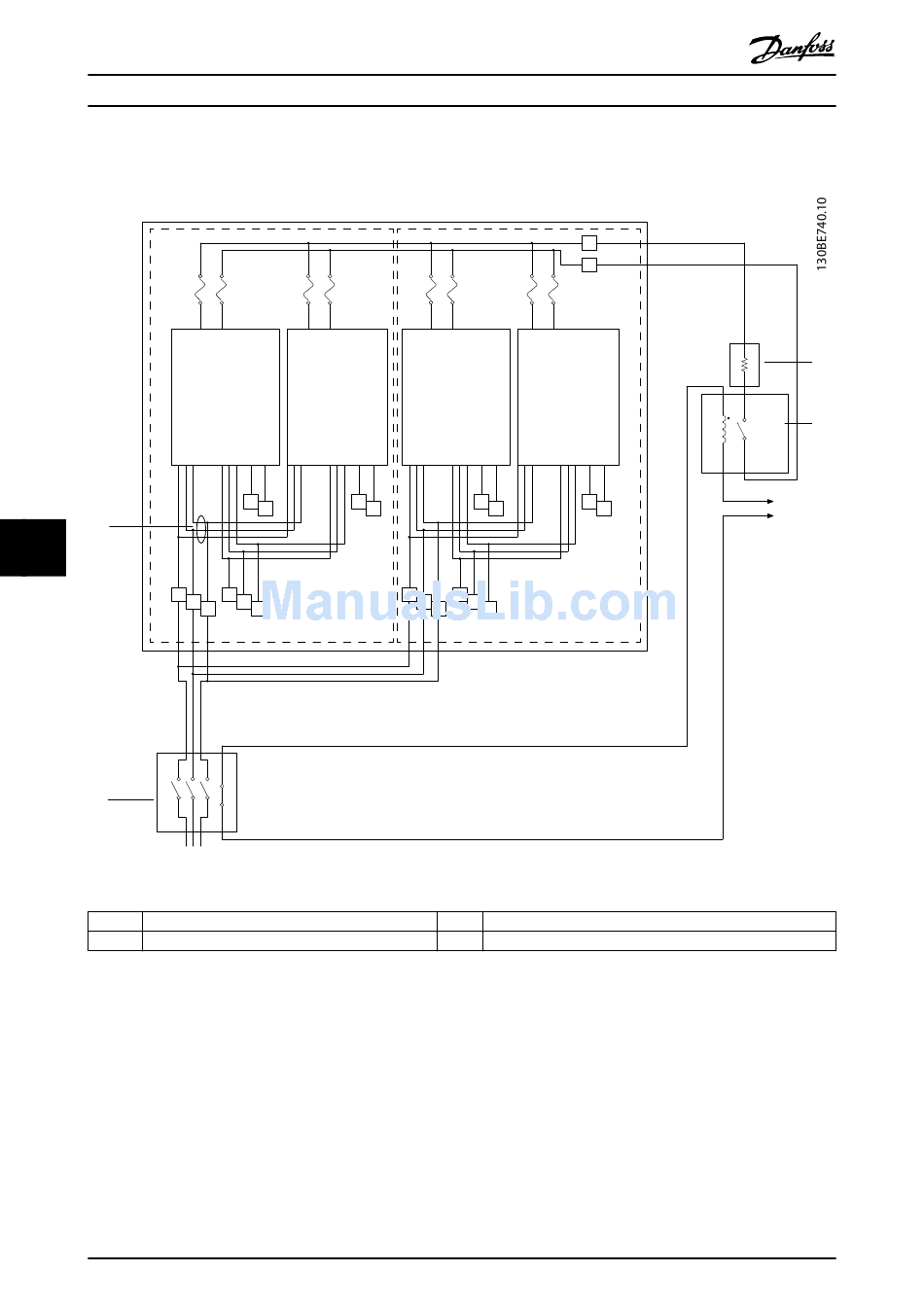

Illustration 8.7 Discharge Resistor Connections
74
VLT
BASE
BASE
DRIVE
DRIVE
R S T
U V W
R+ R-
R S T
U V W
Danfoss A/S © 08/2017 All rights reserved.
®
Parallel Drive Modules
BASE
BASE
DRIVE
DRIVE
R+ R-
R S T
U V W
R+ R-
R S T
3
Discharge resistor
4
Discharge contactor
U V W
R+ R-
3
4
MG37K302
