Navigating the Screens

navigator
Use the
you press the OK button (2) (or the action button on the cuff), the white indicators on the navigator
light up.
1
3
4
Back button: Press to exit the current screen and return to the previous screen. Will also cancel the last
action.
Knob: Scroll the knob to move between on-screen options. Press the knob (OK) to select an option.
OK indicator light: When the action button on the cuff or the OK button on the navigator is pressed, the
white indicator around the knob lights up.
Rethink button: Press to display options for the current screen.
Training cuff indicator: When the switch on the cuff is squeezed, the blue indicators along the top and
bottom edge of the navigator light up.
Getting to Know Baxter
on either of the arms to scroll to and interact with options on the screen. When
2
5

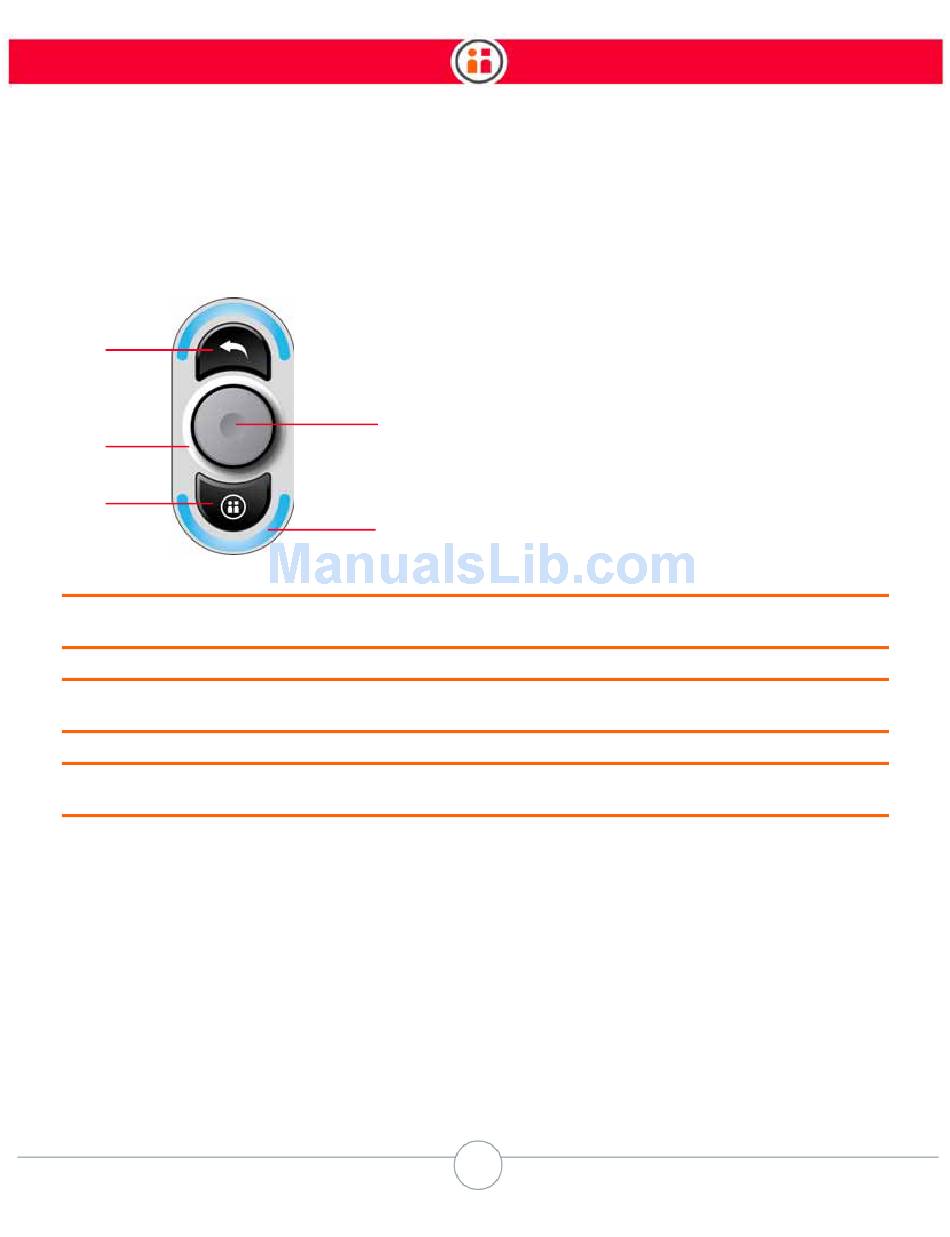

1. Back button
2. Knob (turn to scroll) and OK button
(press)
3. OK indicator light
4. Rethink button
5. Training cuff indicator lights
