Calibrating The Arms - Rethink Robotics Baxter User Manual

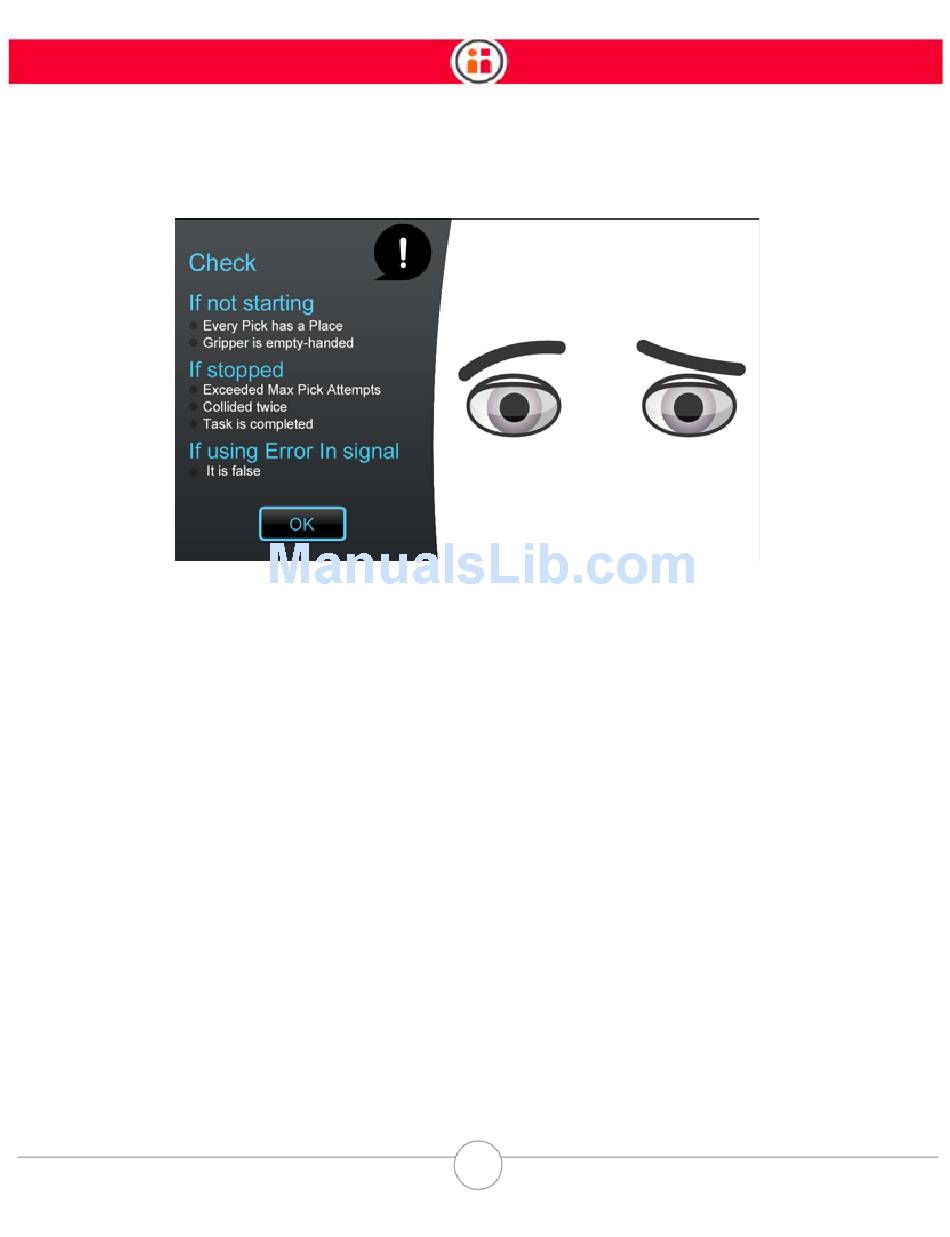

When you see this type of message, follow instructions on the screen to resolve the issue.
Other types of "confused" screens concern external devices not being connected, internal signals
not being fully defined, and end effectors that are not configured.
If the issue is not solved even after shutting down and restarting Baxter, contact your technical
support representative for assistance.

Calibrating the Arms

Calibrate the arms to troubleshoot common error messages, and to help Baxter maintain its peak
performance. It is also recommended that calibration is performed according to the following
schedule:
• Weekly – perform a Basic calibration on both arms.
• Monthly and whenever the robot is shipped – perform a Factory and Spring
calibration on both arms.
During calibration, Baxter's arms must be able to move freely in all directions, starting
IMPORTANT
from the base of the robot on up.
Maintaining and Supporting Baxter
138
Intera 3.2
