MVI69-101M ♦ CompactLogix or MicroLogix Platform
IEC 60870-5-101 Master Communication Module

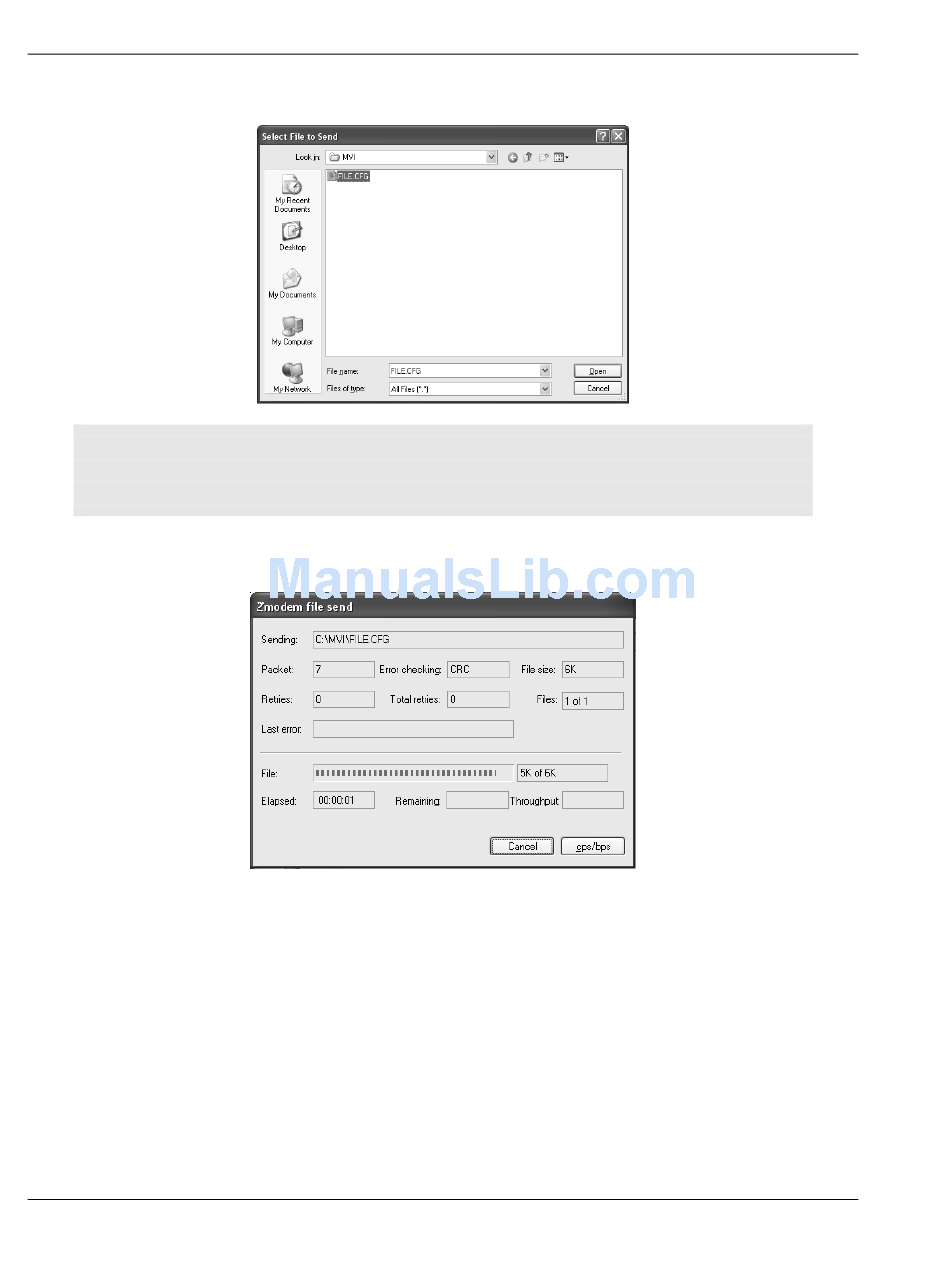

Use the Browse button to locate the configuration file your computer.
5
Note: This procedure assumes that you are uploading a newly edited configuration file from your
PC to the module. However, configuration files are also available on the ProSoft CD as well as the
ProSoft Technology web site.
Select Zmodem as the protocol.
6
Click the Send button. This action opens the Zmodem File Send dialog box.
7
