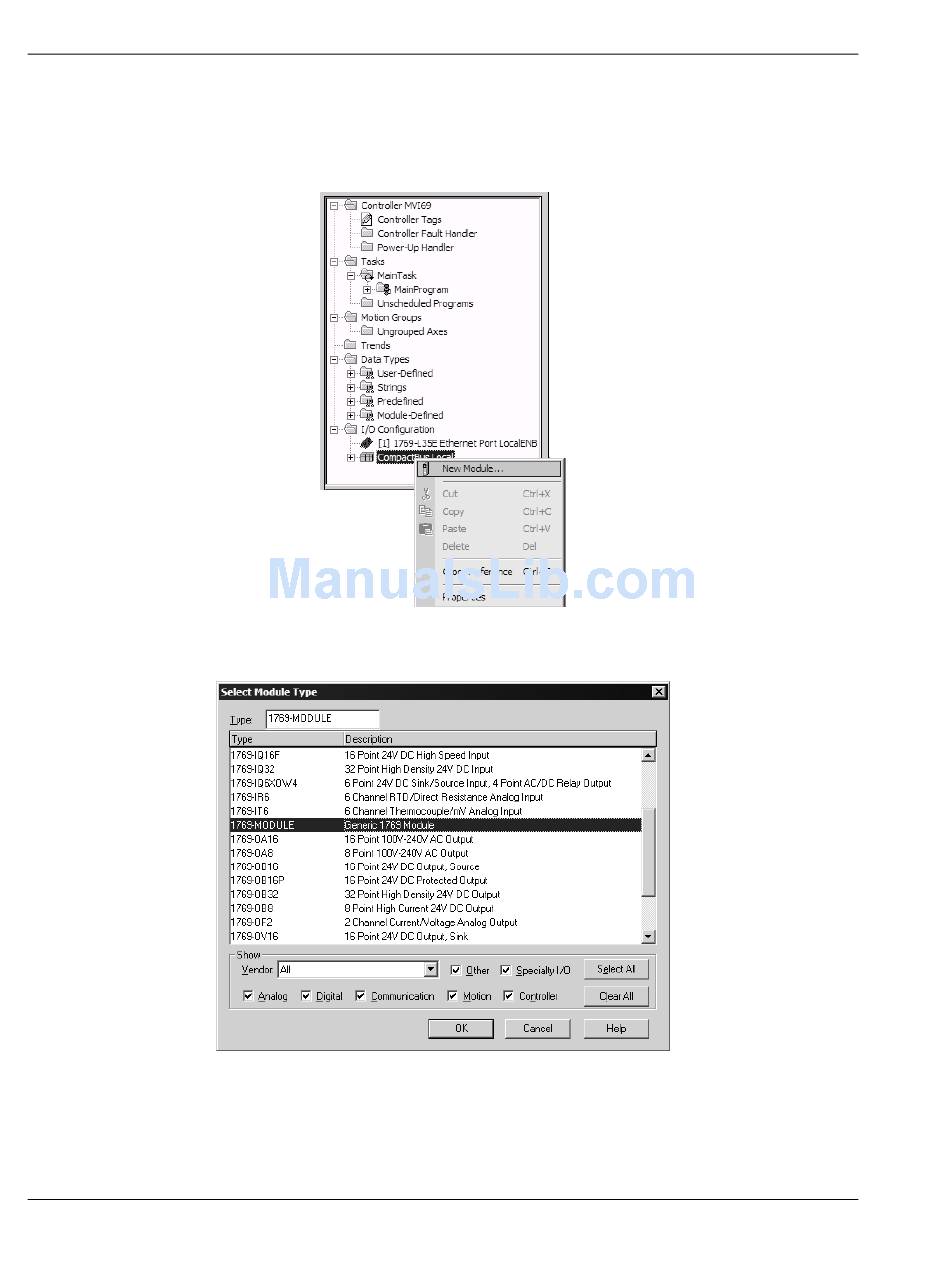

The first step in setting up the processor ladder file is to define the I/O type
module to the system. Right-click the mouse button on the I/O Configuration
option in the Controller Organization window to display a pop-up menu. Select
the New Module... option from the I/O Configuration menu.
This action opens the Select Module Type dialog box.
Select the 1769-Module (Generic 1769 Module) from the list and click OK.
You should configure the Connection Parameters according to the Block Transfer
Size parameter in the configuration file as follows:
