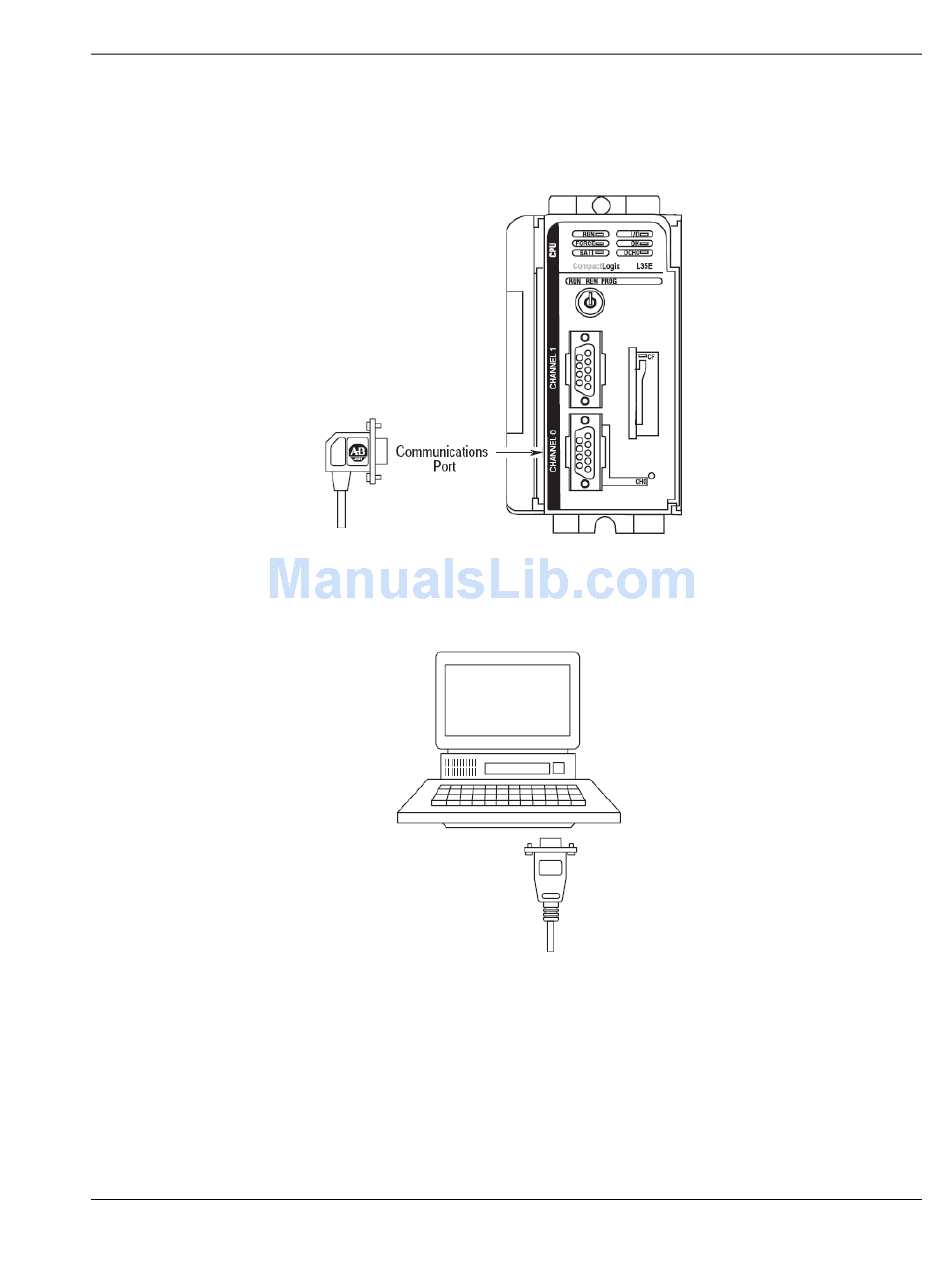

Connect your PC to the Processor
Connect the right-angle connector end of the cable to your controller at the
1
communications port.
Connect the straight connector end of the cable to the serial port on your
2
computer.
