Download the Sample Program to the Processor

To download the sample program from RSLogix 5000 to the CompactLogix processor:
Note: The key switch on the front of the CompactLogix processor must be in the REM position.
If you are not already online to the processor, open the Communications
1
menu, and then choose Download. RSLogix will establish communication
with the processor.

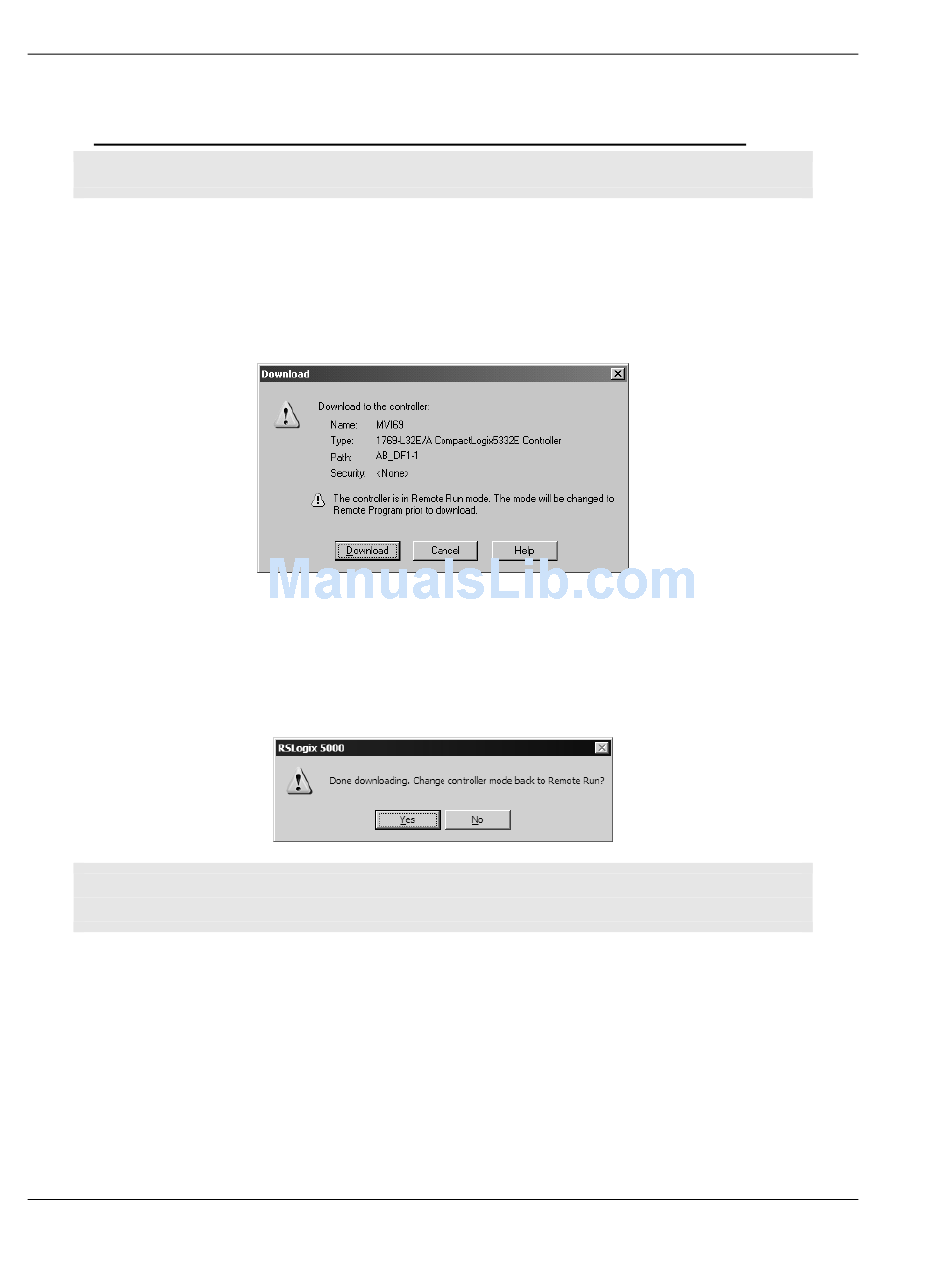

When communication is established, RSLogix will open a confirmation dialog
2
box. Click the Download button to transfer the sample program to the
processor.
RSLogix will compile the program and transfer it to the processor. This
3
process may take a few minutes.
When the download is complete, RSLogix will open another confirmation
4
dialog box. Click OK to switch the processor from Program mode to Run
mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
