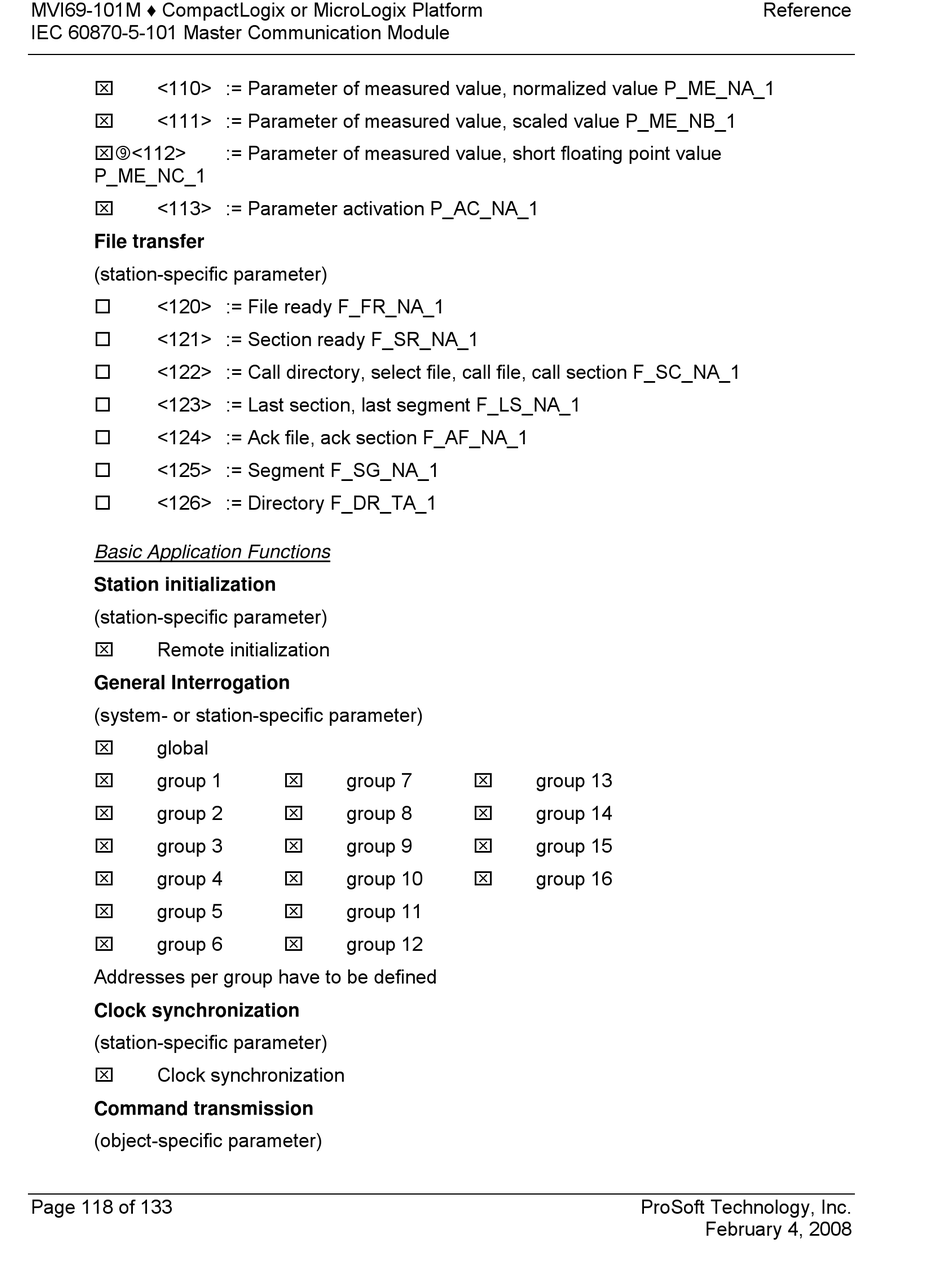

MVI69-101M ♦ CompactLogix or MicroLogix Platform
IEC 60870-5-101 Master Communication Module
⌧ <110> := Parameter of measured value, normalized value P_ME_NA_1
⌧ <111> := Parameter of measured value, scaled value P_ME_NB_1
⌧ <112>
P_ME_NC_1
⌧ <113> := Parameter activation P_AC_NA_1
File transfer
(station-specific parameter)
<120> := File ready F_FR_NA_1
<121> := Section ready F_SR_NA_1
<122> := Call directory, select file, call file, call section F_SC_NA_1
<123> := Last section, last segment F_LS_NA_1
<124> := Ack file, ack section F_AF_NA_1
<125> := Segment F_SG_NA_1
<126> := Directory F_DR_TA_1
Basic Application Functions
Station initialization
(station-specific parameter)
Remote initialization
⌧
General Interrogation
(system- or station-specific parameter)
⌧ global
⌧ group 1
⌧ group 2
⌧ group 3
⌧ group 4
⌧ group 5
group 6
⌧
Addresses per group have to be defined
Clock synchronization
(station-specific parameter)
⌧ Clock synchronization
Command transmission
(object-specific parameter)
Page 118 of 133
:= Parameter of measured value, short floating point value
⌧ group 7
⌧ group 8
⌧ group 9
⌧ group 10
⌧ group 11
group 12
⌧
⌧ group 13
⌧ group 14
⌧ group 15
⌧ group 16
