1.4

Installing the Module

This section describes how to install the module into a CompactLogix or
MicroLogix rack
Before you attempt to install the module, make sure that the bus lever of the
adjacent module is in the unlocked (fully right) position.
Warning: This module is not hot-swappable! Always remove power from the rack before
inserting or removing this module, or damage may result to the module, the processor, or other
connected devices.

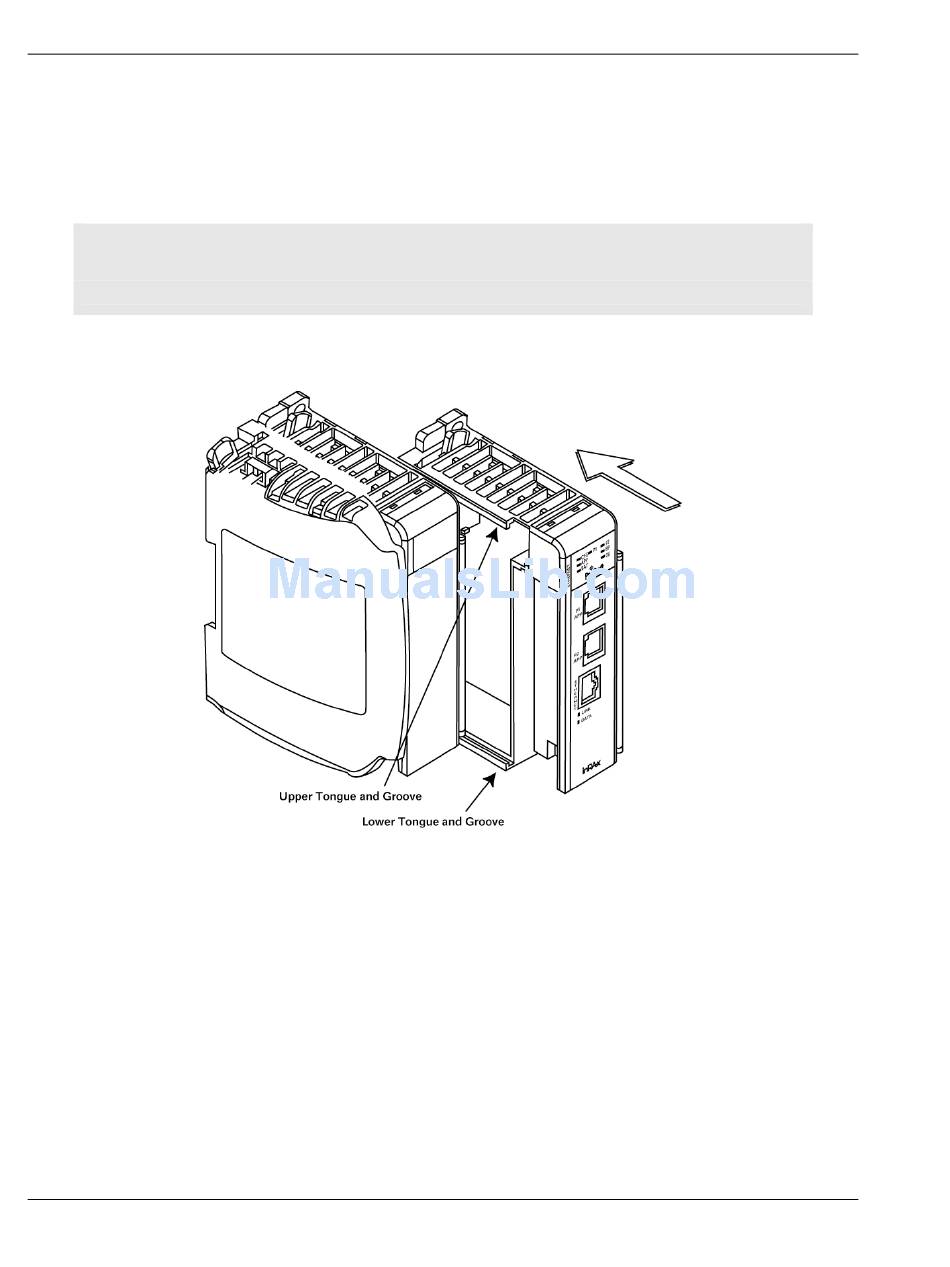

Align the module using the upper and lower tongue-and-groove slots with the
1
adjacent module and slide forward in the direction of the arrow.
Move the module back along the tongue-and-groove slots until the bus
2
connectors on the MVI69 module and the adjacent module line up with each
other.
