Module Configuration with RSLogix
On the I/O Configuration dialog box, select "Other - Requires I/O Card Type
3
ID" at the bottom of the list in the right pane, and then double-click to open
the Module dialog box.

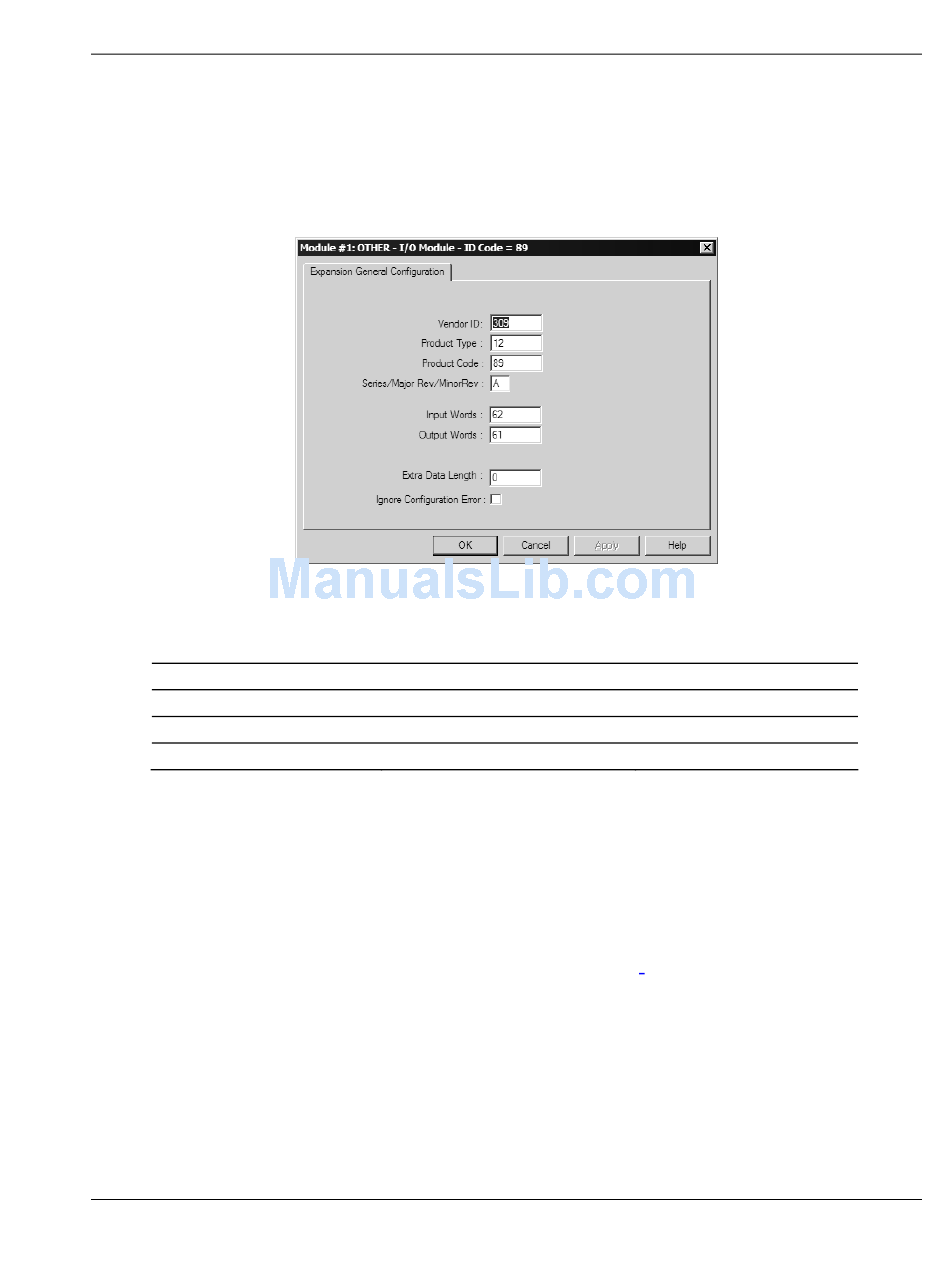

Enter the values shown in the following illustration to define the module
4
correctly for the MicroLogix processor, and then click OK to save your
configuration.
The input words and output words parameter will depend on the Block
Transfer Size parameter you specify in the configuration file. Use the values
from the following table:
Block Transfer Size
60
120
240
Click Next to continue.
5
After completing the module setup, the I/O configuration dialog box will
6
display the module's presence.
The last step is to add the ladder logic. If you are using the example ladder logic,
adjust the ladder to fit your application. Refer to the example Ladder Logic
section in this manual.
Download the new application to the controller and place the processor in run
mode. If you encounter errors, refer to Diagnostics and Troubleshooting (page
59) for information on how to connect to the module's Config/Debug port to use
its troubleshooting features.
